NLP130L-CHLSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014

Engine 1NDTV

Transmission 6FS MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )

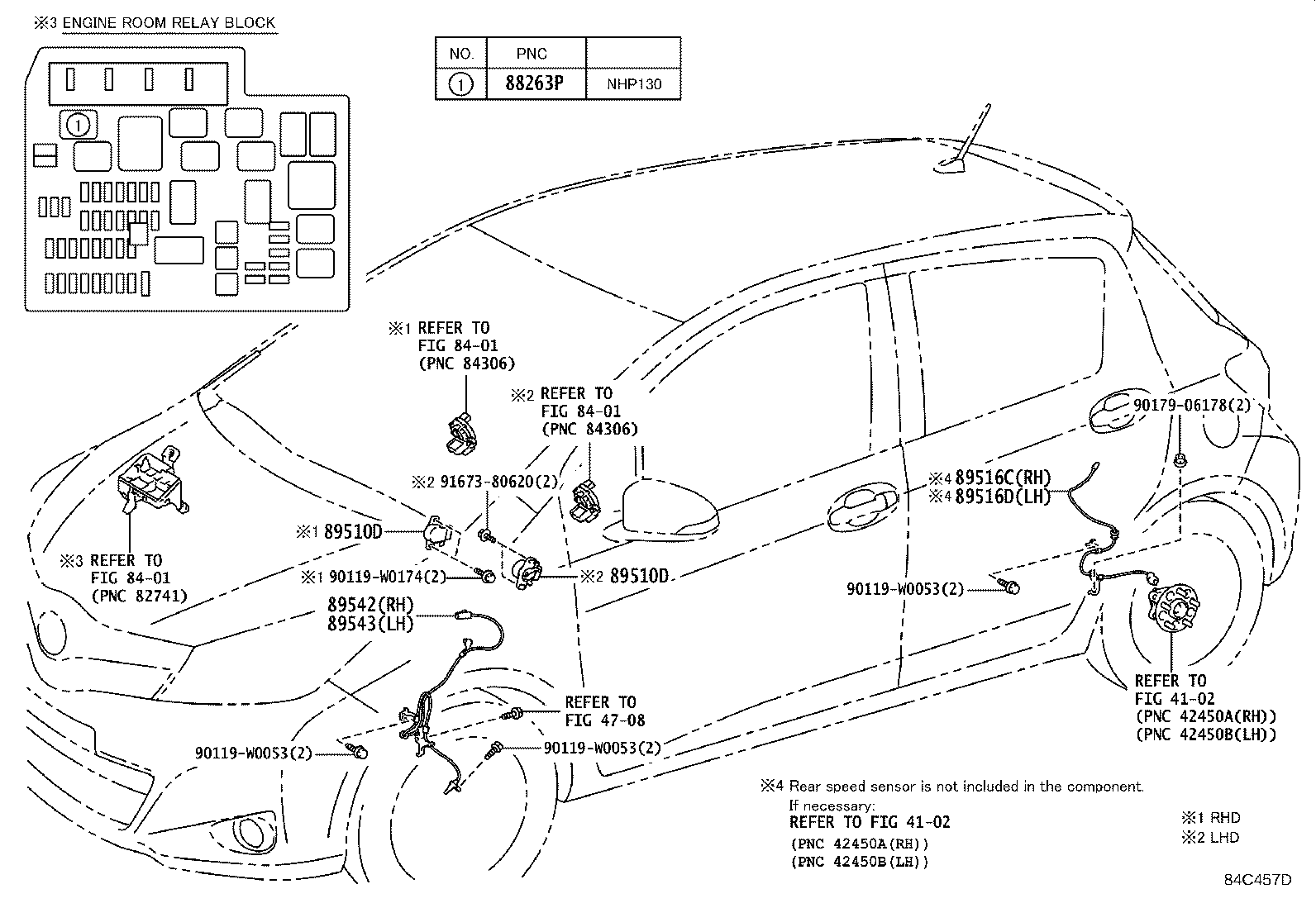

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-0D130	KSP130,NLP130,NSP130	07/2011 - 07/2014	1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-0D140	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
89542 - SENSOR, SPEED, FRONT RH
89542-0D050	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
89543 - SENSOR, SPEED, FRONT LH
89543-0D050	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
Common parts
90119-W0053
90119-W0174
90179-06178
91673-80620
Linked diagrams
4102
4708
8401
