NLP130L-CHLSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

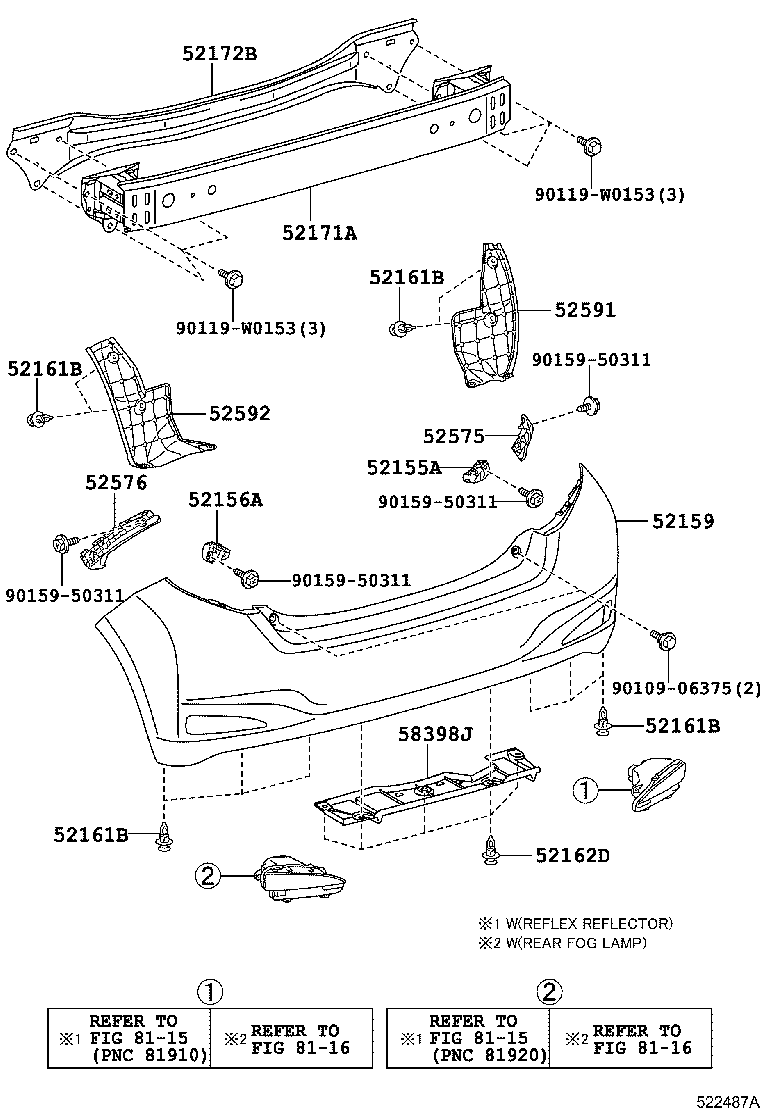

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52161B 52161B 52161B 52161B 52162D 52171A 52172B 52575 52576 52591 52592 58398J 8115 8115 8116 8116 9010906375 90119W0153 90119W0153 9015950311 9015950311 9015950311 9015950311
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-0D050

KSP130,NHP130,NLP130,NSP130

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-0D040

KSP130,NHP130,NLP130,NSP130

 1
52159 - COVER, REAR BUMPER
52159-0D993

KSP130,NHP130,NLP130,NSP130

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-02030

KSP130,NHP130,NLP130,NSP130

 10
52161B - PIECE, REAR BUMPER
52161-02030

KSP130,NHP130,NLP130,NSP130

 10
52161B - PIECE, REAR BUMPER
52161-02030

KSP130,NHP130,NLP130,NSP130

 10
52161B - PIECE, REAR BUMPER
52161-02030

KSP130,NHP130,NLP130,NSP130

 10
52162D - PIECE, REAR BUMPER
52161-02030

KSP130,NHP130,NLP130,NSP130

 5
52161-16010

KSP130,NLP130,NSP130

 5
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-0D080

KSP130,NHP130,NLP130,NSP130

 1
52172B - REINFORCEMENT, REAR BUMPER, NO.2
52172-0D020

KSP130,NHP130,NLP130,NSP130

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D130

KSP130,NHP130,NLP130,NSP130

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D130

KSP130,NHP130,NLP130,NSP130

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D130

KSP130,NHP130,NLP130,NSP130

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D130

KSP130,NHP130,NLP130,NSP130

 1
58398J - COVER, FLOOR UNDER, NO.1
58398-0D020

KSP130,NHP130,NLP130,NSP130

 1
Common parts
90109-06375
90119-W0153
90159-50311
Linked diagrams
8115
8116
