NLP130L-CHLSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KSP130,NLP130,NSP130

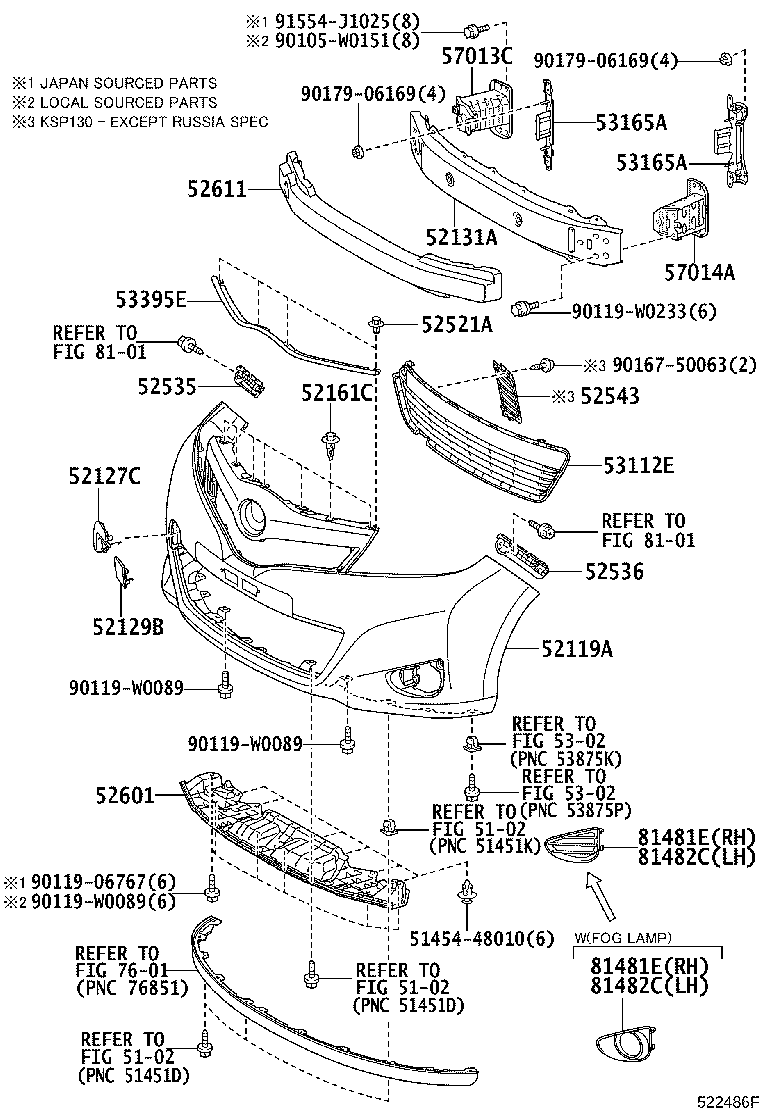

Click highlighted areas on diagram

diagram 5102 5102 5102 5145448010 52119A 52127C 52129B 52131A 52161C 52521A 52535 52536 52543 52601 52611 5302 5302 53112E 53165A 53165A 53395E 57013C 57014A 7601 8101 8101 81481E 81481E 81482C 81482C 90105W0151 9011906767 90119W0089 90119W0089 90119W0089 90119W0233 9016750063 9017906169 9017906169 91554J1025
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0U904

KSP130,NLP130,NSP130

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52127-0D917

KSP130,NLP130,NSP130

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-0D050

KSP130,NLP130,NSP130

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-0D050

KSP130,NHP130,NLP130,NSP130

 1
52161C - PIECE, FRONT BUMPER
52161-02030

KSP130,NHP130,NLP130,NSP130

 7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0

KSP130,NHP130,NLP130,NSP130

BLACK

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D090

KSP130,NHP130,NLP130,NSP130

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D090

KSP130,NHP130,NLP130,NSP130

 1
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-0D010

KSP130,NLP130,NSP130

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0D020

KSP130,NHP130,NLP130,NSP130

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D210

KSP130,NLP130,NSP130

NO PAINT REQ.

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D050

KSP130,NLP130,NSP130

 2
53164-52060

KSP130,NLP130,NSP130

 2
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D050

KSP130,NLP130,NSP130

 2
53164-52060

KSP130,NLP130,NSP130

 2
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0D010

KSP130,NHP130,NLP130,NSP130

 1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D011

KSP130,NLP130,NSP130

 1
57013-0D010

KSP130,NLP130,NSP130

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D010

KSP130,NLP130,NSP130

 1
81481E - COVER, FOG LAMP, RH
52030-52010

NLP130,NSP130..STYLE

 1
81481E - COVER, FOG LAMP, RH
52030-52010

NLP130,NSP130..STYLE

 1
81482C - COVER, FOG LAMP, LH
52040-52010

NLP130,NSP130..STYLE

 1
81482C - COVER, FOG LAMP, LH
52040-52010

NLP130,NSP130..STYLE

 1
Common parts
51454-48010
90105-W0151
90119-06767
90119-W0089
90119-W0233
90167-50063
90179-06169
91554-J1025
Linked diagrams
5102
5302
7601
8101
