NLP130L-CHLNXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )5D

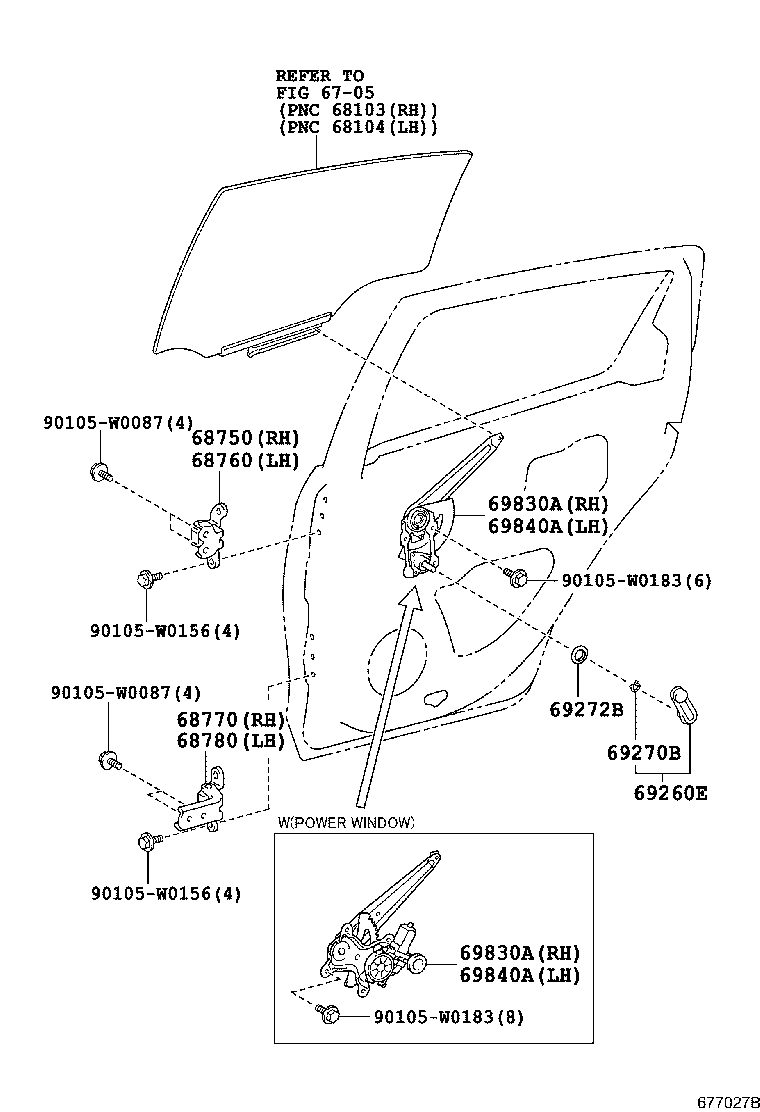

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0D060 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 68750-0D061 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-0D060 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 68760-0D061 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-0D070 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 68770-0D071 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-0D071 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 68780-0D070 |
KSP130,NHP130,NLP130,NSP130..5D |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-02020C0 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE) BLACK,TRIM1# |
2 | ||
| 69260-02020C0 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STYLE) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1# |
2 | ||
| 69260-02020C0 |
KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP)TREND,BLACK,TRIM1# |
2 | ||
| 69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90080-52100 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE) |
2 | ||
| 90080-52100 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STYLE) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 90080-52100 |
KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP)TREND |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-0D030 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STYLE) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 69268-0D030 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE) |
2 | ||
| 69268-0D030 |
KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP)TREND |
2 | ||
| 69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-0D220 |
NSP130..5D..ACTIV;NSP130..LHD..5D..STYLE;KSP130,NLP130..5D..(ACTIV,STYLE) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 69830-0D220 |
KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP)TREND |
1 | ||
| 69830-0D230 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE) |
1 | ||
| 69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-0D220 |
NSP130..5D..ACTIV;NSP130..LHD..5D..STYLE;KSP130,NLP130..5D..(ACTIV,STYLE) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 69830-0D220 |
KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP)TREND |
1 | ||
| 69830-0D230 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE) |
1 | ||
| 69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-0D220 |
NSP130..5D..ACTIV;NSP130..LHD..5D..STYLE;KSP130,NLP130..5D..(ACTIV,STYLE) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 69840-0D220 |
KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP)TREND |
1 | ||
| 69840-0D230 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE) |
1 | ||
| 69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-0D220 |
NSP130..5D..ACTIV;NSP130..LHD..5D..STYLE;KSP130,NLP130..5D..(ACTIV,STYLE) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 69840-0D220 |
KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP)TREND |
1 | ||
| 69840-0D230 |
KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE) |
1 | ||
| Common parts | ||||
| 90105-W0087 | ||||
| 90105-W0156 | ||||
| 90105-W0183 | ||||
| Linked diagrams | ||||
| 6705 | ||||
