NLP130L-CHLGXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )KSP130,NLP130,NSP130..LHD

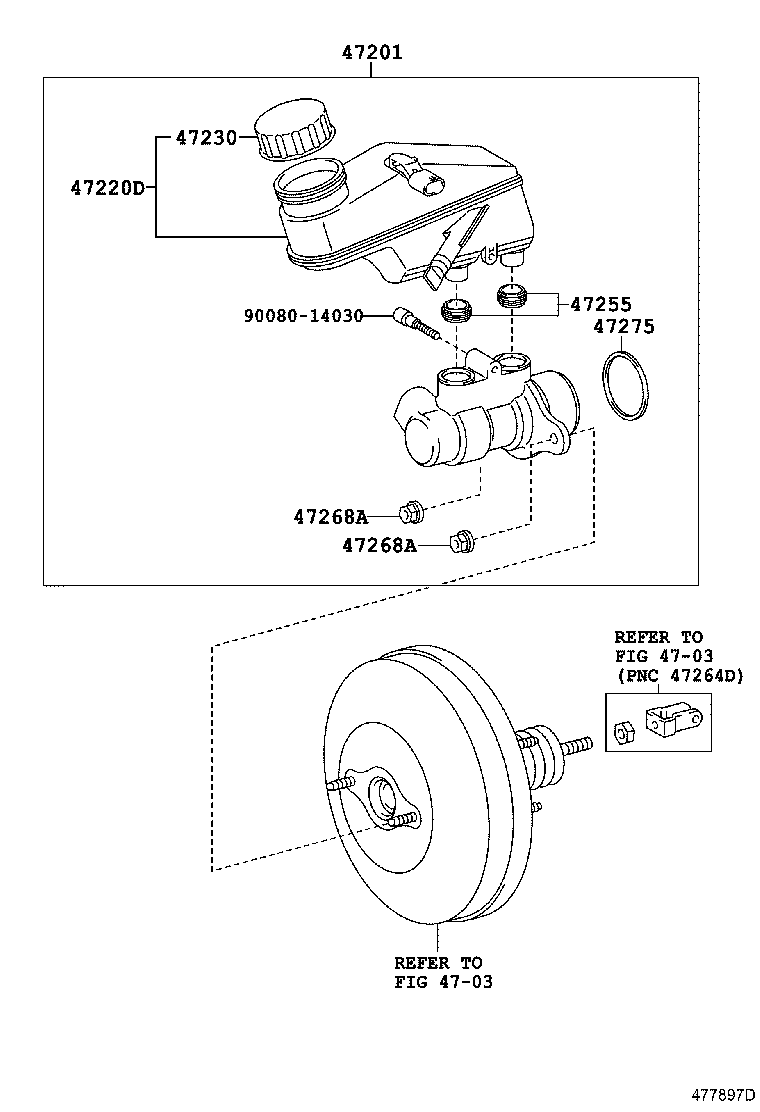

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-09630 |
NLP130..LHD..6F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT |
1 | ||
| 47201-09630 |
NLP130..LHD..6F TURKEY SPEC&VSC-WITHOUT |
1 | ||
| 47201-09630 |
NLP130..LHD..6F VSC-WITHOUT |
1 | ||
| 47201-09650 |
KSP130,NLP130,NSP130..LHD |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0D080 |
KSP130,NLP130,NSP130..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0D060 |
KSP130,NLP130,NSP130 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09030 |
KSP130,NLP130,NSP130 |
1 | ||
| 47268A - NUT, BRAKE MASTER CYLINDER | ||||
| 47268-05010 |
KSP130,NLP130,NSP130 |
2 | ||
| 47268A - NUT, BRAKE MASTER CYLINDER | ||||
| 47268-05010 |
KSP130,NLP130,NSP130 |
2 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-0D020 |
KSP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90080-14030 | ||||
| Linked diagrams | ||||
| 4703 | ||||
