NLP130L-CHLGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

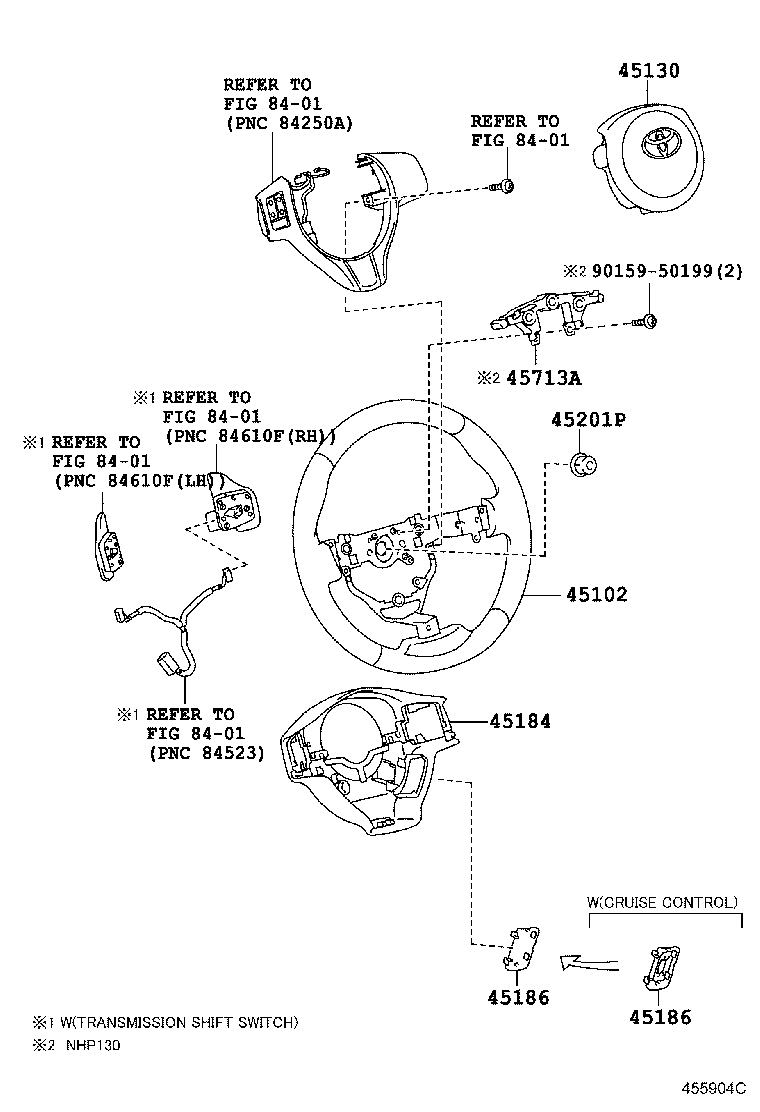

Click highlighted areas on diagram

3-SPOKE

diagram 45102 45130 45184 45186 45186 45201P 45713A 8401 8401 8401 8401 8401 9015950199
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-0D300C1

NLP130..5D..6FS..(ACTIV,LOUNG);KSP130,NLP130,NSP130..3D..(ACTIV,LOUNG);KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..LOUNG

BLACK/LT.GRAY NO.831,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-0D350C0

KSP130,NHP130,NLP130,NSP130

BLACK,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-0D180C0

NSP130..6F;KSP130,NHP130,NLP130..5F,6F,CVFC

BLACK,TRIM1#

 1
45184-0D190C0

NLP130,NSP130..6FS,CVFC

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D030C0

NLP130..6F

CRUISE CONTROL-WITH,BLACK,TRIM1#

 1
45186-0D020C0

KSP130,NLP130;NHP130,NSP130..ACTIV,STD

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D030C0

NLP130..6F

CRUISE CONTROL-WITH,BLACK,TRIM1#

 1
45186-0D020C0

KSP130,NLP130;NHP130,NSP130..ACTIV,STD

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KSP130,NHP130,NLP130,NSP130

 1
Common parts
90159-50199
Linked diagrams
8401
