NLP130L-CHLGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )1NDTV

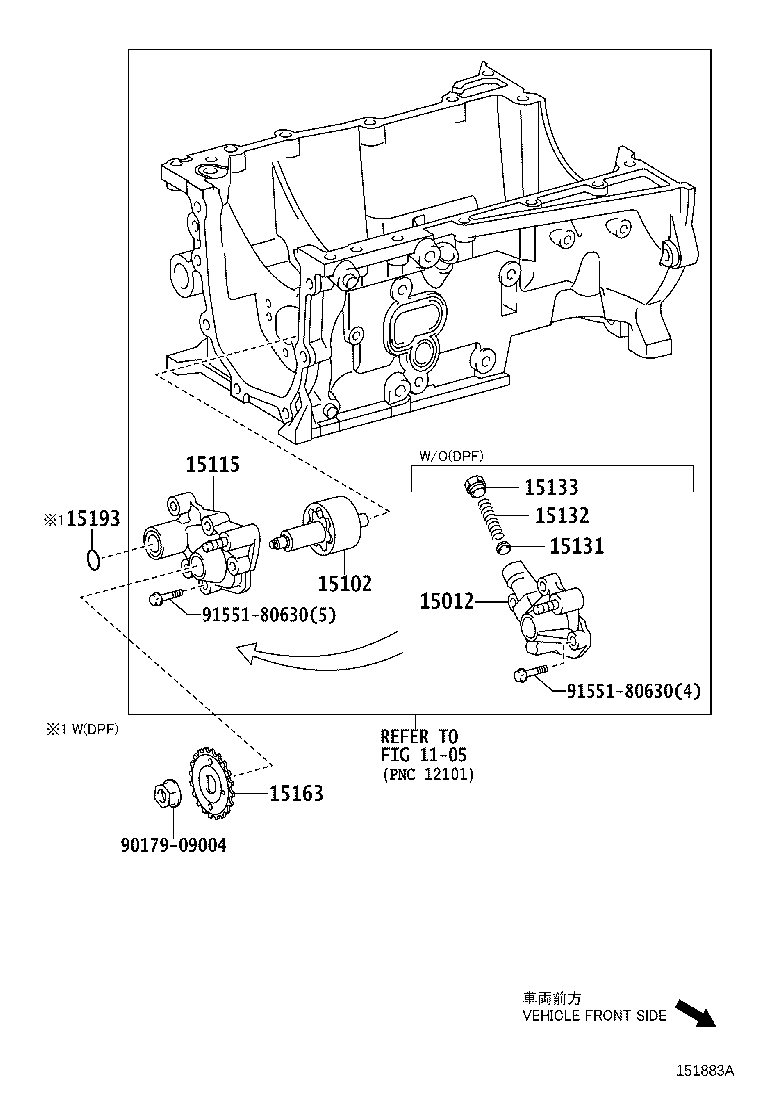

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 15012-33060 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 15012-33060 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 15102 - ROTOR SET, OIL PUMP | ||||
| 15102-33060 |
1NDTV..NLP130 |
1 | ||
| 15102-33060 |
1NDTV..NLP130 (J) |
1 | ||
| 15102-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 15102-33060 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 15102-33060 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15120-33080 |
1NDTV..NLP130 |
1 | ||
| 15120-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 15120-33080 |
1NDTV..NLP130 (J) |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-38010 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 15131-38010 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-33020 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 15132-33020 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-20010 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 15133-20010 |
1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 15163 - GEAR, OIL PUMP DRIVE SHAFT | ||||
| 15163-33010 |
1NDTV..NLP130 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15193-33020 |
1NDTV..NLP130 |
1 | ||
| Common parts | ||||
| 90179-09004 | ||||
| 91551-80630 | ||||
| Linked diagrams | ||||
| 1105 | ||||
