Toyota Yaris/hybrid (frp) NLP130 FUEL TANK & TUBE

NLP130L-CHFSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

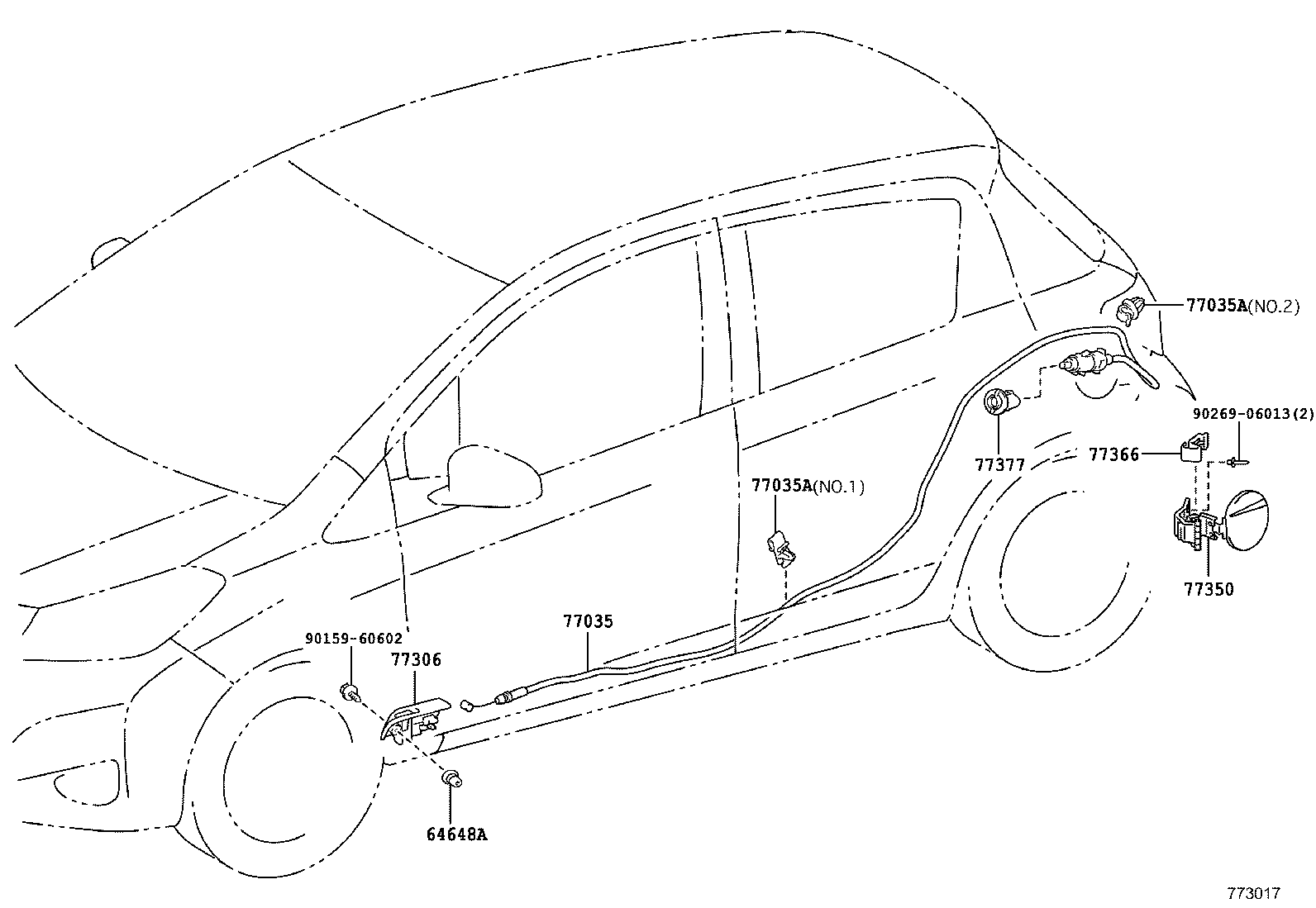

ILLUST NO. 3 OF 3(1107- )LHD

Click highlighted areas on diagram

FUEL LID OPENER

Part #	Description	Period	Qty
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32020	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0D250	KSP130,NHP130,NLP130,NSP130..LHD	07/2011 - 12/2999	1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005	KSP130,NHP130,NLP130,NSP130..LHD NO.2	07/2011 - 12/2999	1
90469-04004	KSP130,NHP130,NLP130,NSP130 NO.1	07/2011 - 12/2999	1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005	KSP130,NHP130,NLP130,NSP130..LHD NO.2	07/2011 - 12/2999	1
90469-04004	KSP130,NHP130,NLP130,NSP130 NO.1	07/2011 - 12/2999	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-52060	KSP130,NHP130,NLP130,NSP130..LHD	07/2011 - 06/2014	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0D080	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-52011	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
Common parts
90159-60602
90269-06013

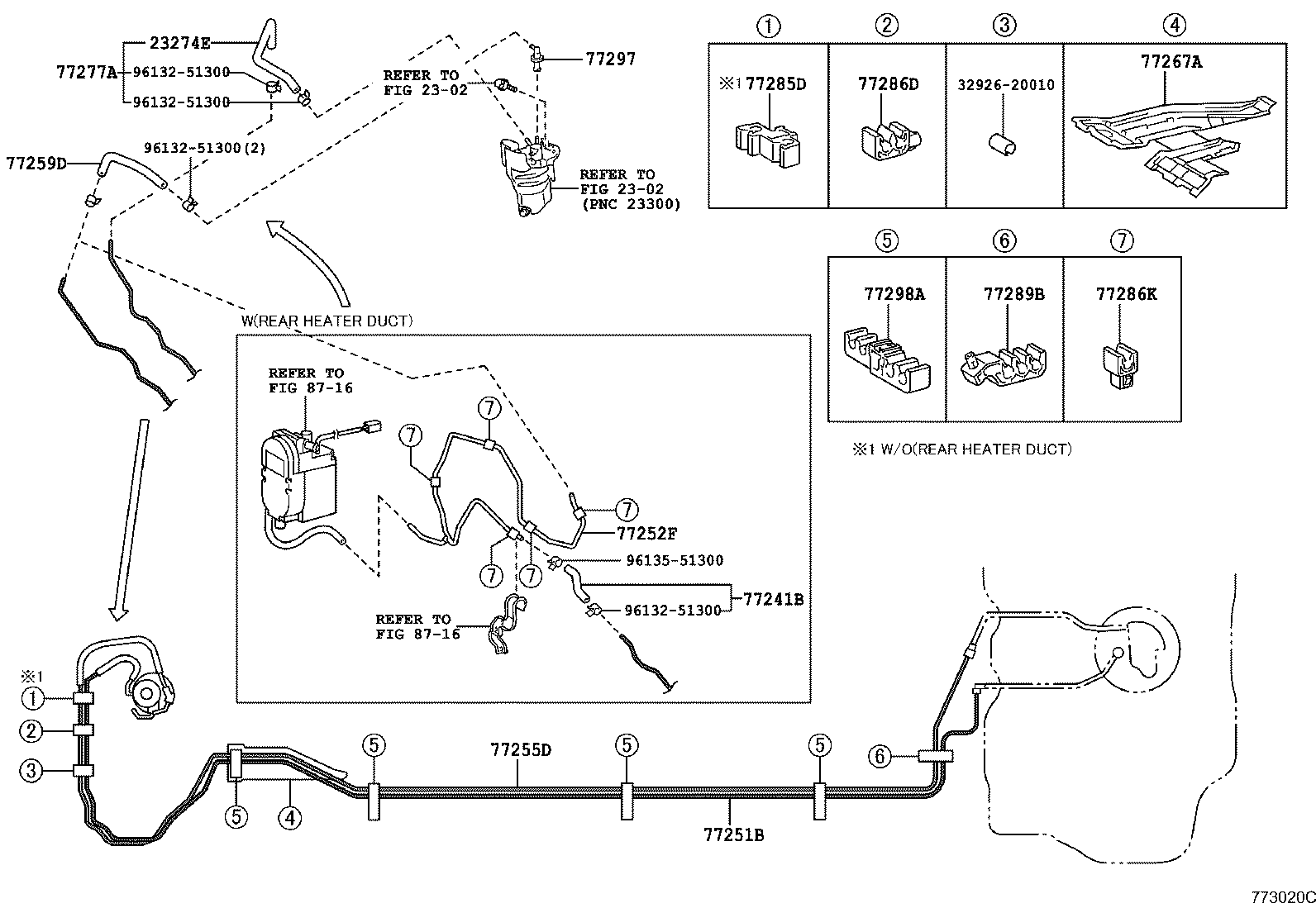

ILLUST NO. 2 OF 3(1107- )NLP130

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
23274E - HOSE, FUEL, NO.3
23274-0N030	1NDTV..NLP130	07/2011 - 12/2999	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77049-52010	NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)	07/2011 - 12/2999	1
77251B - TUBE, FUEL MAIN
77251-0D290	NLP130	07/2011 - 12/2999	1
77251-0D300	NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)	07/2011 - 12/2999	1
77252F - TUBE, FUEL MAIN, REAR
77252-0D080	NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)	07/2011 - 12/2999	1
77255D - TUBE, FUEL RETURN
77255-0D070	NLP130	07/2011 - 12/2999	1
77255-0D080	NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)	07/2011 - 12/2999	1
77259D - HOSE, FUEL, NO.1
77259-0D090	NLP130	07/2011 - 12/2999	1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-52050	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23802-0N040	NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)	07/2011 - 07/2014	1
23802-0N040	NLP130	07/2011 - 12/2999	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52120	NLP130	07/2011 - 12/2999	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-52130	NLP130	07/2011 - 12/2999	1
77286K - CLAMP, FUEL TUBE, NO.2
77286-52110	NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)	07/2011 - 07/2014	5
77289B - CLAMP, FUEL TUBE, NO.3
77289-52060	KSP130,NLP130,NSP130	07/2011 - 07/2014	1
77297 - CONNECTOR, FUEL TUBE
77297-52030	NLP130	07/2011 - 12/2999	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52070	KSP130,NLP130,NSP130	07/2011 - 07/2014	4
Common parts
32926-20010
96132-51300
96135-51300
Linked diagrams
2302
8716

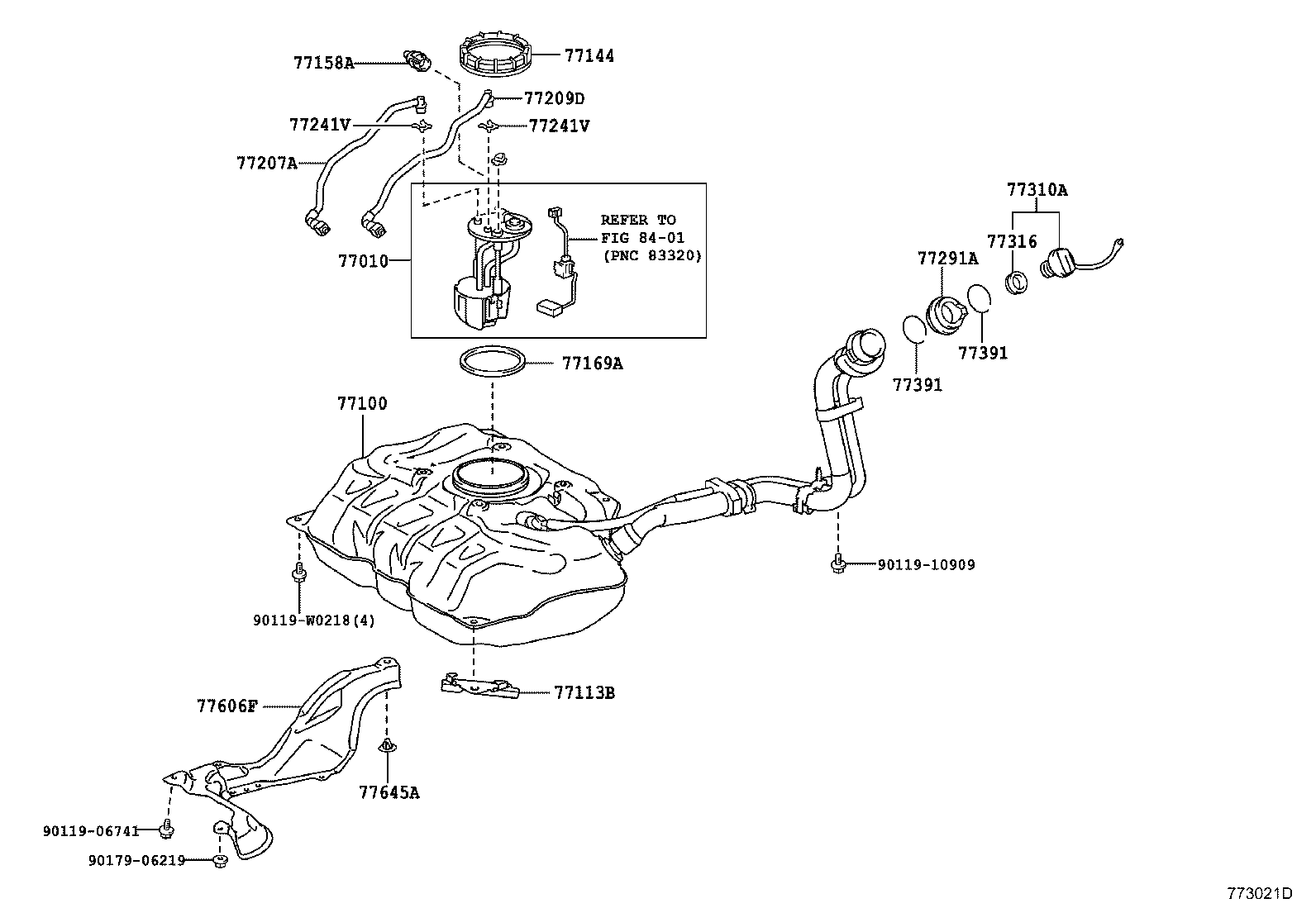

ILLUST NO. 1 OF 3(1107- )NLP130

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
77010 - TUBE ASSY, FUEL TANK VENT
77010-0D040	NLP130	07/2011 - 02/2014	1
77010-0D042	NLP130	03/2014 - 12/2999	1
77100 - TANK ASSY, FUEL
77001-0D180	NLP130	07/2011 - 12/2999	1
77113B - PLATE, FUEL TANK SIDE
77113-52080	KSP130,NLP130,NSP130	07/2011 - 02/2014	1
77113-0D050	KSP130,NLP130,NSP130	03/2014 - 12/2999	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0D050	KSP130,NLP130,NSP130	07/2011 - 03/2012	1
77144-0D070	KSP130,NHP130,NLP130,NSP130	03/2012 - 12/2999	1
77158A - SUPPORT, TANK SUCTION TUBE
77158-0D020	NLP130	07/2011 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0D070	KSP130,NHP130,NLP130,NSP130	03/2012 - 12/2999	1
77169-0D060	KSP130,NLP130,NSP130	07/2011 - 03/2012	1
77207A - TUBE SUB-ASSY, FUEL RETURN
77204-0D070	NLP130	07/2011 - 12/2999	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0D110	NLP130	07/2011 - 12/2999	1
77241V - CLIP, TUBE JOINT
77241-32060	NLP130	07/2011 - 12/2999	2
77241V - CLIP, TUBE JOINT
77241-32060	NLP130	07/2011 - 12/2999	2
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0D130	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77300-20020	NLP130	07/2011 - 12/2999	1
77316 - GASKET, FUEL TANK CAP
77316-52040	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
77391 - RING, FUEL INLET BOX
77391-12020	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	2
77391 - RING, FUEL INLET BOX
77391-12020	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	2
77606F - CASE SUB-ASSY, FUEL TANK COVER VENT
77606-0D050	KSP130,NLP130,NSP130	07/2011 - 07/2014	1
77645A - RETAINER, FUEL TANK PROTECTOR
77645-52040	KSP130,NHP130,NLP130,NSP130	04/2013 - 12/2999	1
77645-52020	KSP130,NHP130,NLP130,NSP130	07/2011 - 03/2013	1
Common parts
90119-06741
90119-10909
90119-W0218
90179-06219
Linked diagrams
8401
