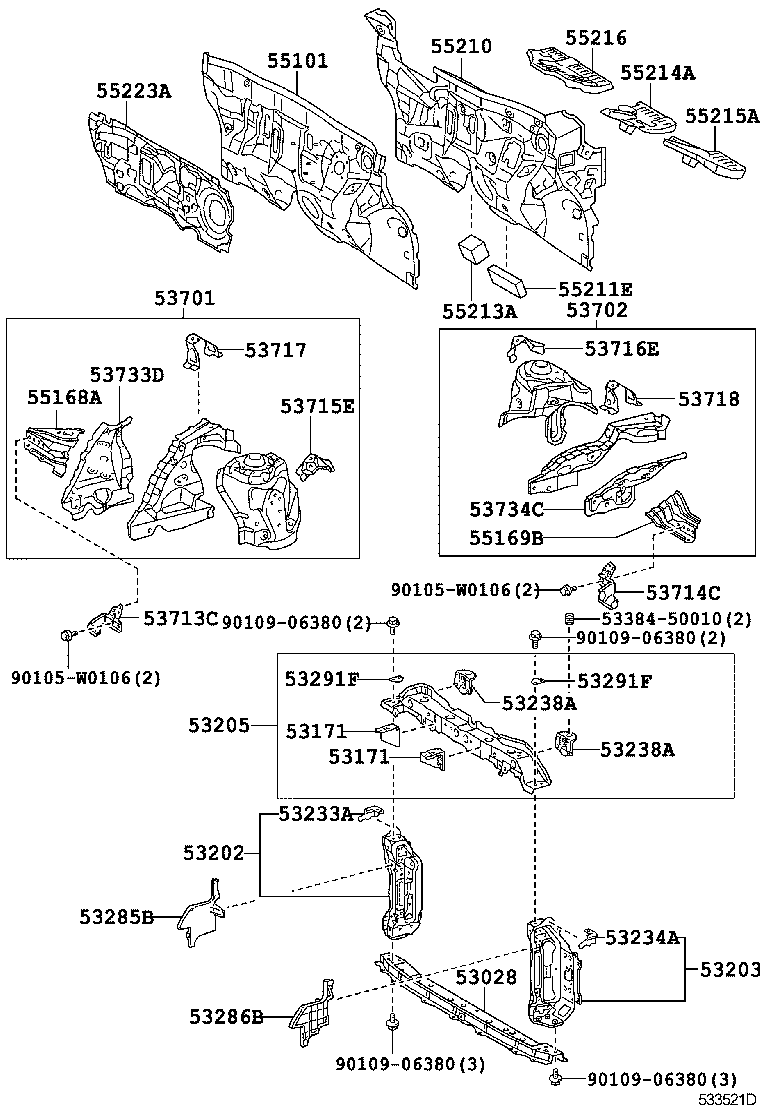

NLP130L-CHFRXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )KSP130,NLP130,NSP130..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-0D031 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53171 - RETAINER, RADIATOR SUPPORT | ||||
| 53171-0D050 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 53171-0D040 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 53171 - RETAINER, RADIATOR SUPPORT | ||||
| 53171-0D050 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 53171-0D040 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0D906 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0D906 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0D904 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53234A - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-0D050 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-0D050 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0D110 |
KSP130,NLP130,NSP130 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0D110 |
KSP130,NLP130,NSP130 |
1 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-0D010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-0D010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0D130 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0D120 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-52030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-52030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0D290 |
KSP130,NLP130,NSP130..LHD..(5F,6F) |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0D330 |
NHP130,NLP130..LHD |
1 | ||
| 55211E - SILENCER, FRONT PANEL | ||||
| 55211-0D150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-0D110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0D130 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-0D120 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55216 - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-0D060 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0D191 |
NHP130,NLP130..LHD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) |
1 | ||
| Common parts | ||||
| 53384-50010 | ||||
| 90105-W0106 | ||||
| 90109-06380 | ||||
