NLP130L-CHFRXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )1NDTV

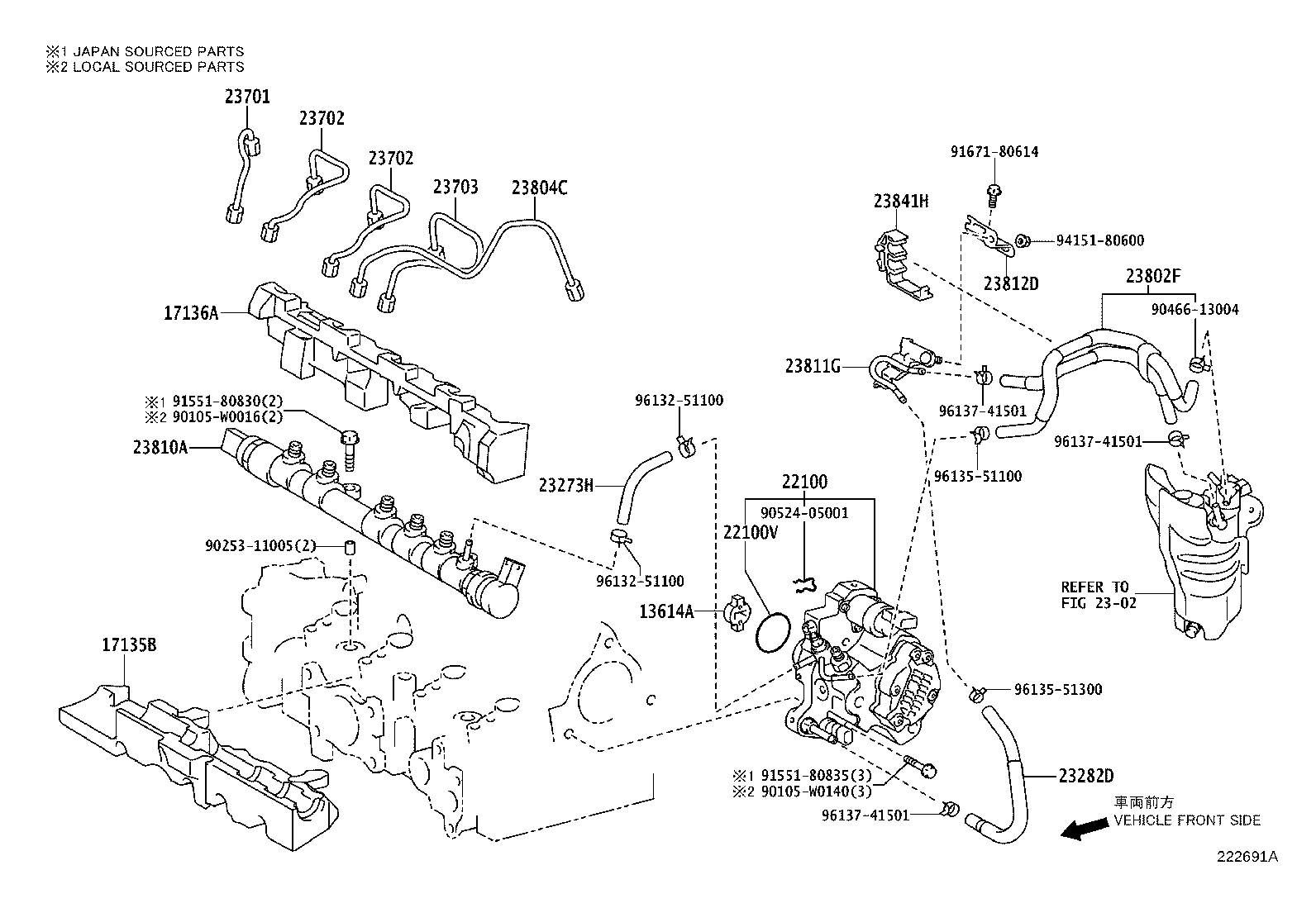

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1 | ||||
| 13614-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 13614-33010 |
1NDTV..NLP130 (J) |
1 | ||
| 17135B - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-33011 |
1NDTV..NLP130 (J) |
1 | ||
| 17135-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 17135-33011 |
1NDTV..NLP130 |
1 | ||
| 17136A - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-33010 |
1NDTV..NLP130 |
1 | ||
| 17136-33010 |
1NDTV..NLP130 (J) |
1 | ||
| 17136-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0W010 |
1NDTV..NLP130 (L) |
1 | ||
| 22100-33050 |
1NDTV..NLP130 (J) |
1 | ||
| 22100-0W010 |
1NDTV..NLP130 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 96723-35044 |
1NDTV..NLP130 |
1 | ||
| 96723-35044 |
1NDTV..NLP130 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-0N020 |
1NDTV..NLP130 (L) |
1 | ||
| 23273-33090 |
1NDTV..NLP130 (J) |
1 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-0N040 |
1NDTV..NLP130 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-33040 |
1NDTV..NLP130 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-33010 |
1NDTV..NLP130 |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-33010 |
1NDTV..NLP130 |
2 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-33010 |
1NDTV..NLP130 |
1 | ||
| 23802F - HOSE, FUEL | ||||
| 23802-0N050 |
1NDTV..NLP130 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-33020 |
1NDTV..NLP130 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-33030 |
1NDTV..NLP130 |
1 | ||
| 23811G - PIPE, FUEL, NO.1 | ||||
| 23811-33110 |
1NDTV..NLP130 |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-33020 |
1NDTV..NLP130 |
1 | ||
| 23841H - CLAMP, FUEL HOSE | ||||
| 23841-0N010 |
1NDTV..NLP130 |
1 | ||
| Common parts | ||||
| 90105-W0016 | ||||
| 90105-W0140 | ||||
| 90253-11005 | ||||
| 90466-13004 | ||||
| 90524-05001 | ||||
| 91551-80830 | ||||
| 91551-80835 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| 96135-51300 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 2302 | ||||
