NLP130L-CHFNXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )NLP130

Click highlighted areas on diagram

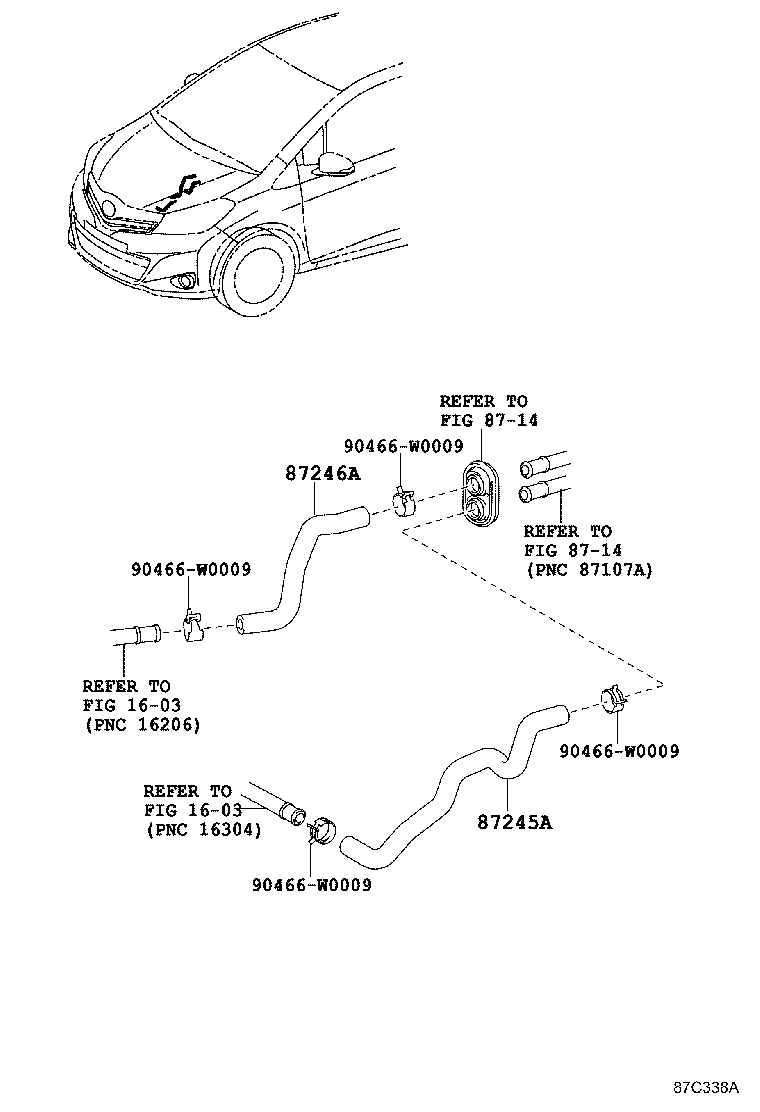

diagram 1603 1603 8714 8714 87245A 87246A 90466W0009 90466W0009 90466W0009 90466W0009
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-0D450

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87245-0D430

NLP130

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0D440

NLP130

 1
87245-0D440

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
Common parts
90466-W0009
Linked diagrams
1603
8714

(1107- )NLP130..LHD

Click highlighted areas on diagram

COLD SPEC

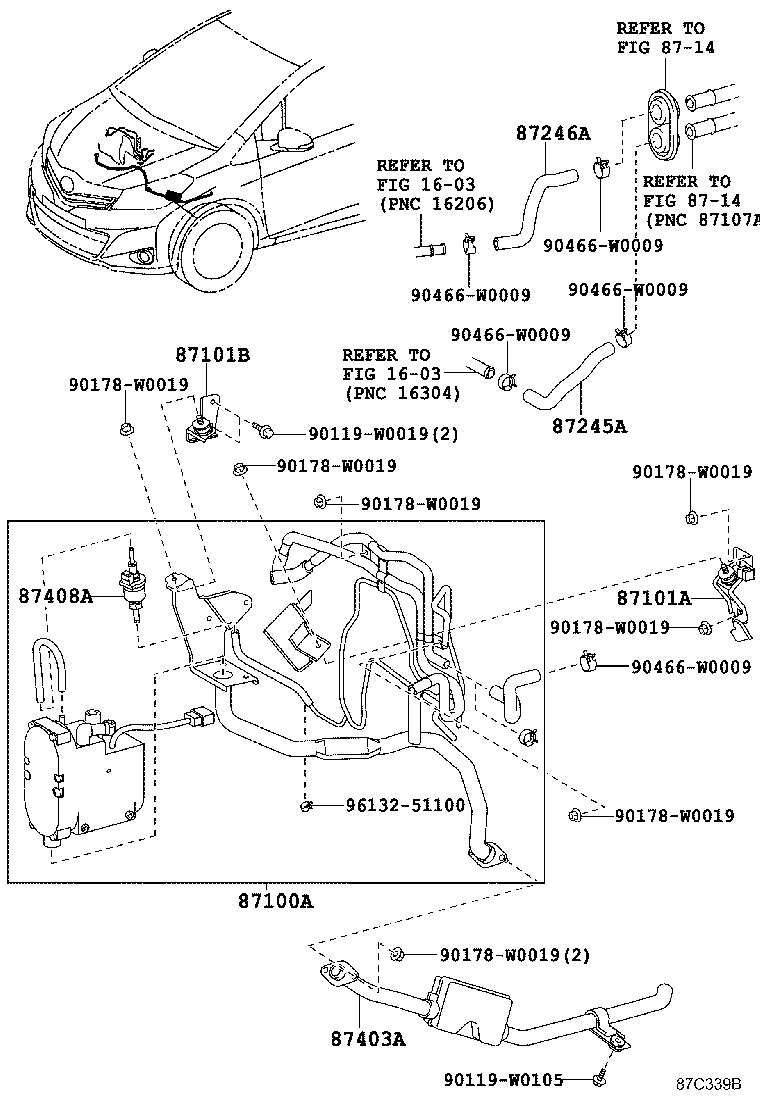

diagram 1603 1603 87100A 87101A 87101B 8714 8714 87245A 87246A 87403A 87408A 90119W0019 90119W0105 90178W0019 90178W0019 90178W0019 90178W0019 90178W0019 90178W0019 90178W0019 90466W0009 90466W0009 90466W0009 90466W0009 90466W0009 9613251100
Part # Description Qty Price
87100A - HEATER & ACCESSORY ASSY
87100-0D040

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-0D050

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87101B - BRACKET SUB-ASSY, HEATER NO.2
87101-0D040

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0D450

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87245-0D430

NLP130

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0D440

NLP130

 1
87245-0D440

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87403A - PIPE SUB-ASSY, EXHAUST
87403-0D020

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87408A - PUMP SUB-ASSY, FUEL
87408-0D011

NLP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
Common parts
90119-W0019
90119-W0105
90178-W0019
90466-W0009
96132-51100
Linked diagrams
1603
8714
