NLP130L-CHFNXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )

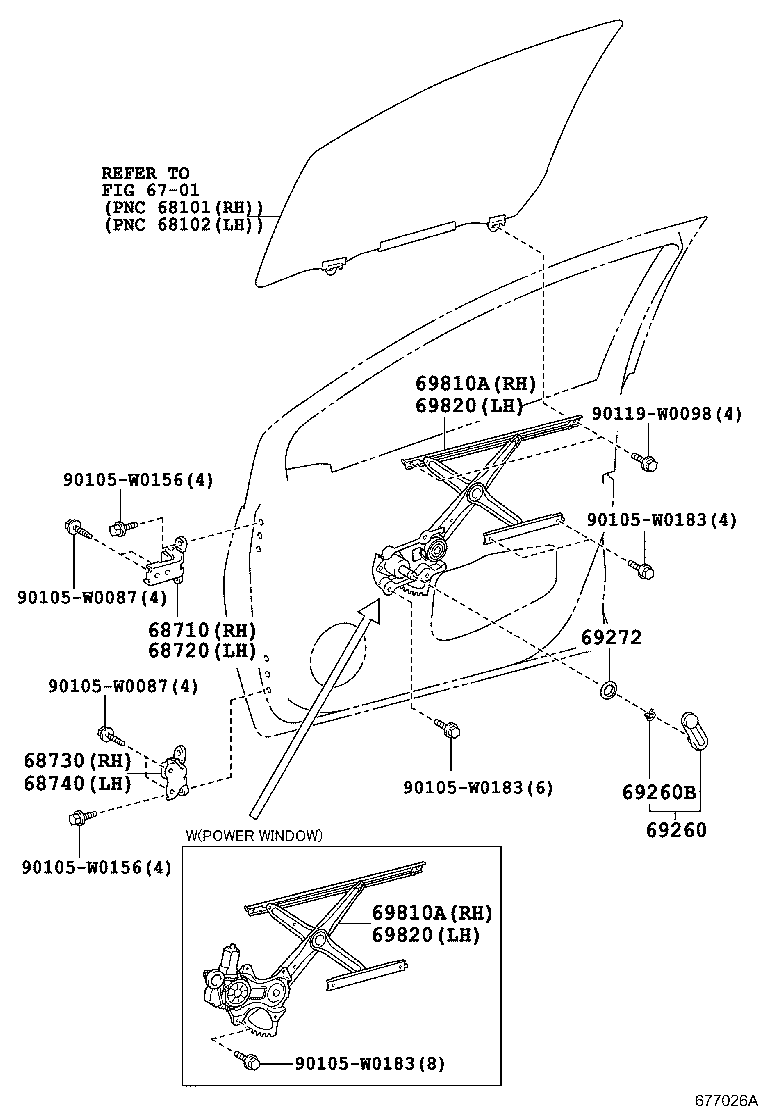

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-0D091 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 68710-0D090 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-0D091 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 68720-0D090 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-0D070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 68730-0D071 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-0D070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 68740-0D071 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-0D300 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-0D300 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-0D310 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 69820-0D440 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-0D310 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 69820-0D440 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| Common parts | ||||
| 90105-W0087 | ||||
| 90105-W0156 | ||||
| 90105-W0183 | ||||
| 90119-W0098 | ||||
| Linked diagrams | ||||
| 6701 | ||||
