NLP130L-CHFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

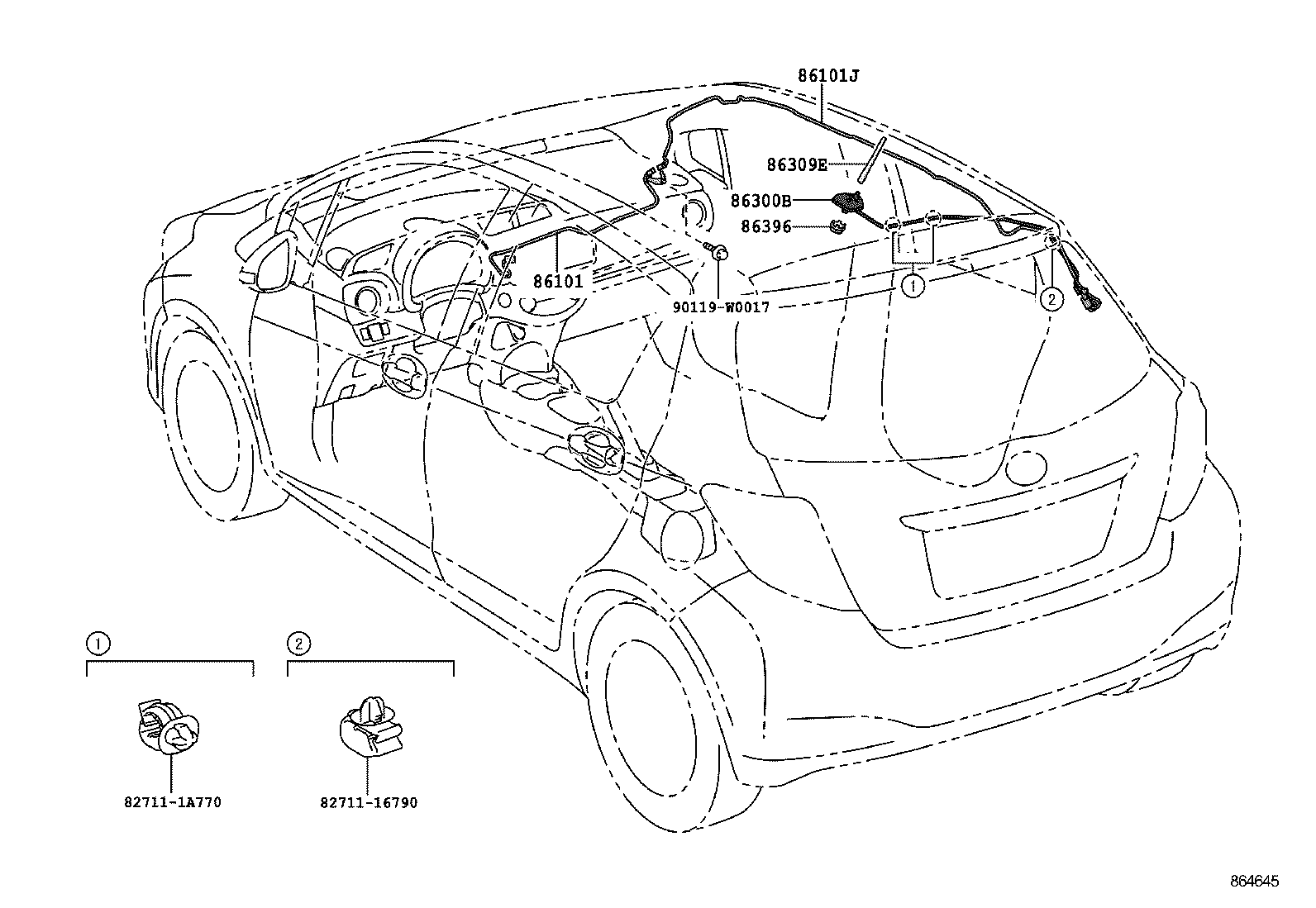

ILLUST NO. 1 OF 2(1107- )LHD

Click highlighted areas on diagram

diagram 8271116790 827111A770 86101 86101J 86300B 86309E 86396 90119W0017
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0D410

KSP130,NHP130,NLP130,NSP130..LHD

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0D400

KSP130,NHP130,NLP130,NSP130

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0D220

KSP130,NHP130,NLP130,NSP130

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0D110

KSP130,NHP130,NLP130,NSP130

 1
86396 - NUT, ANTENNA
86396-47010

KSP130,NHP130,NLP130,NSP130

 1
Common parts
82711-16790
82711-1A770
90119-W0017
