NLP130L-CHFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1NDTV

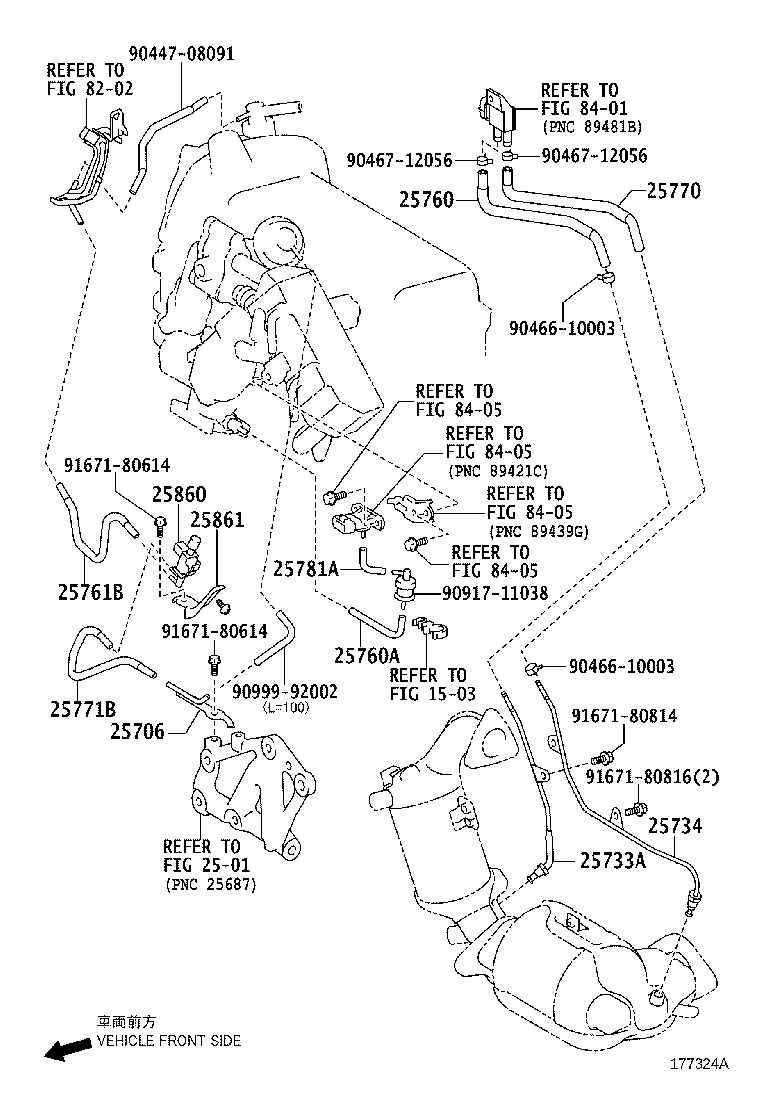

Click highlighted areas on diagram

diagram 1503 2501 25706 25733A 25734 25760 25760A 25761B 25770 25771B 25781A 25860 25861 8202 8401 8405 8405 8405 8405 9044708091 9046610003 9046610003 9046712056 9046712056 9091711038 9099992002 9167180614 9167180614 9167180814 9167180816
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-33080

1NDTV..NLP130

 1
25733A - PIPE, VACUUM, NO.1
25733-33010

1NDTV..NLP130

 1
25734 - PIPE, VACUUM, NO.2
25734-33010

1NDTV..NLP130..6F

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
25734-33010

1NDTV..NLP130

 1
25734-33010

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

 1
25734-33010

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-GENERAL DESTINATION

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-33080

1NDTV..NLP130..6F

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
25760-33080

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

 1
25760-33080

1NDTV..NLP130

 1
25760-33080

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-GENERAL DESTINATION

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
257A1-33010

1NDTV..NLP130

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-33060

1NDTV..NLP130

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-33020

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-GENERAL DESTINATION

 1
25770-33020

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

 1
25770-33020

1NDTV..NLP130

 1
25770-33020

1NDTV..NLP130..6F

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-33050

1NDTV..NLP130

 1
25781A - HOSE, VACUUM TRANSMITTING, NO.3
25791-33010

1NDTV..NLP130

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-30070

1NDTV..NLP130

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-33020

1NDTV..NLP130

 1
Common parts
90447-08091
90466-10003
90467-12056
90917-11038
90999-92002
91671-80614
91671-80814
91671-80816
Linked diagrams
1503
2501
8202
8401
8405
