NLP130L-CGLSXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )6F
EC62,EC65(T/M NO.=**EP************)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

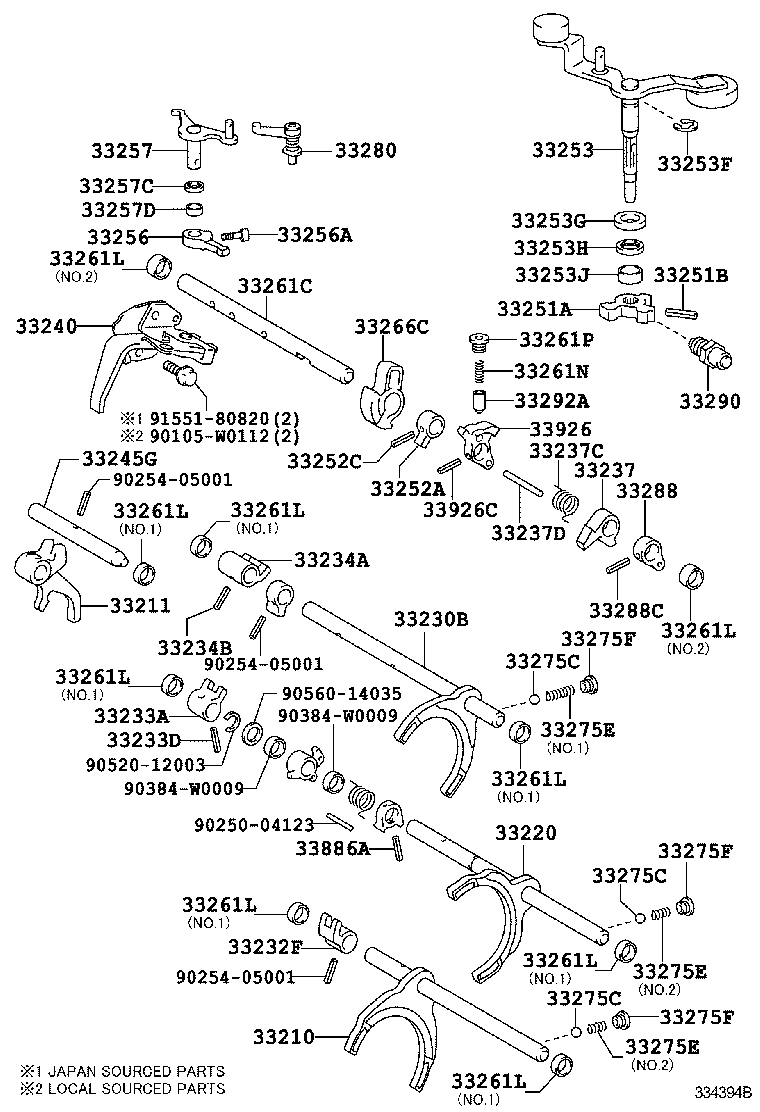

| 33210 - FORK ASSY, GEAR SHIFT, NO.1 | ||||
| 33210-20020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-05020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33220 - FORK ASSY, GEAR SHIFT, NO.2 | ||||
| 33220-20020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33230B - FORK ASSY, GEAR SHIFT, NO.3 | ||||
| 33230-20030 |
NLP130,NSP130..6F *202 |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-20070 |
NLP130,NSP130..6F *202 |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-20040 |
NLP130,NSP130..6F *202 |
1 | ||
| 33233D - PIN, SLOTTED SPRING(FOR NO.2 SHIFT GEAR HEAD) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202 |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-20020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33234B - PIN, SLOTTED SPRING(FOR NO.3 SHIFT GEAR HEAD) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202 |
1 | ||
| 33237 - HEAD, RELEASE | ||||
| 33237-20030 |
NLP130,NSP130..6F *206 |
1 | ||
| 33237-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33237C - SPRING, TORSION(FOR RELEASE HEAD) | ||||
| 90508-27001 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33237D - PIN, STRAIGHT(FOR RELEASE HEAD) | ||||
| 90250-06042 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-20041 |
NLP130,NSP130..6F *206 |
1 | ||
| 33240-20041 |
NLP130,NSP130..6F *202 |
1 | ||
| 33240-0D020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33240-20041 |
NLP130..6FS |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-05010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20120 |
NLP130,NSP130..6F *206 |
1 | ||
| 33251-52050 |
NLP130..6FS |
1 | ||
| 33251-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
NLP130..6FS L=22 |
1 | ||
| 90254-05011 |
NLP130,NSP130..6F L=28.0,*202,*206 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-0D020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33252-52030 |
NLP130..6FS |
1 | ||
| 33252-20060 |
NLP130,NSP130..6F *206 |
1 | ||
| 33252C - PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-52010 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253F - RING, E(FOR SHIFT OUTER LEVER) | ||||
| 90523-15003 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253G - SPACER(FOR SHIFT OUTER LEVER) | ||||
| 90560-18017 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253H - SEAL, OIL(FOR SHIFT OUTER LEVER) | ||||
| 90310-18003 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253J - BUSH(FOR SHIFT OUTER LEVER) | ||||
| 90384-W0012 |
NLP130,NSP130..6F *202 |
1 | ||
| 90384-18018 |
NLP130,NSP130..6F *206 |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-0D030 |
NLP130,NSP130..6F *202 |
1 | ||
| 33256-20030 |
NLP130,NSP130..6F *206 |
1 | ||
| 33256-52020 |
NLP130..6FS |
1 | ||
| 33256A - BOLT, SET (FOR SELECT INNER LEVER) | ||||
| 90110-08041 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-52020 |
NLP130..6F *202,*206 |
1 | ||
| 33257-52021 |
NLP130..6F *202 |
1 | ||
| 33257-0D010 |
NLP130..6F *202 |
1 | ||
| 33257-52021 |
NLP130..6F *206 |
1 | ||
| 33257C - SEAL, OIL(FOR OUTER SELECT LEVER) | ||||
| 90310-15005 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33257D - BUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER) | ||||
| 90384-15002 |
NLP130,NSP130..6F *206 |
1 | ||
| 90384-W0003 |
NLP130,NSP130..6F *202 |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-52130 |
NLP130..6FS |
1 | ||
| 33261-05010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33261-20120 |
NLP130,NSP130..6F *206 |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261N - SPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90501-11108 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33261P - PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SH | ||||
| 90341-16013 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-20061 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33266-52040 |
NLP130..6FS |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20050 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33288 - BLOCK, SELECT STOPPER | ||||
| 33288-20020 |
NLP130,NSP130..6F *206 |
1 | ||
| 33288-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33288C - PIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-02010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33290-52040 |
NLP130,NSP130..6F *206 |
1 | ||
| 33292A - PIN, LOCK BALL | ||||
| 33292-20010 |
NLP130,NSP130..6F *206 |
1 | ||
| 33292-05020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33886A - PIN, SLOTTED SPRING(FOR SHIFT LEVER STOPPER) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926 - LEVER, SHIFT INNER, FRONT | ||||
| 33926-0D011 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926-20011 |
NLP130,NSP130..6F *206 |
1 | ||
| 33926-20010 |
NLP130,NSP130..6F *206 |
1 | ||
| 33926-52010 |
NLP130..6FS |
1 | ||
| 33926C - PIN, SLOTTED SPRING(FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 90254-05001 |
NLP130,NSP130..6F *202 |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90250-04123 | ||||
| 90254-05001 | ||||
| 90384-W0009 | ||||
| 90520-12003 | ||||
| 90560-14035 | ||||
| 91551-80820 | ||||
(1107- )6FS

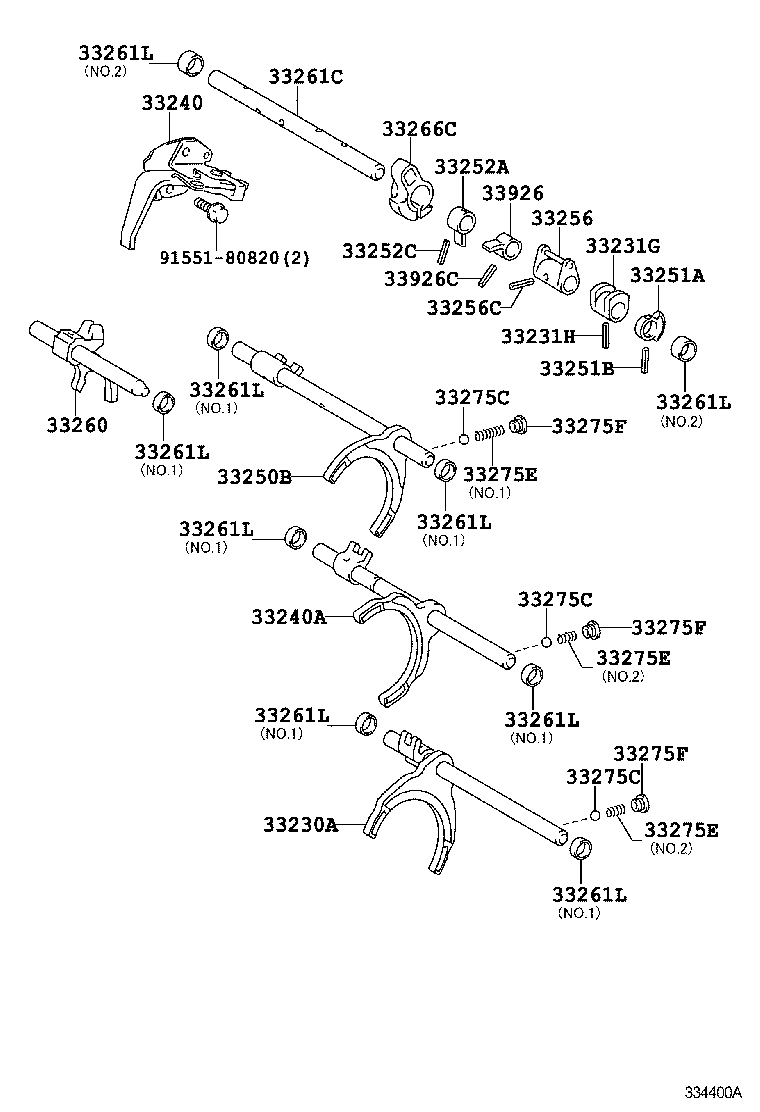

EC65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33230A - SHAFT ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33230-20051 |
NLP130,NSP130..6F *206 |
1 | ||
| 33230-20051 |
NLP130..6FS |
1 | ||
| 33231G - HEAD, SHIFT & SELECT LEVER SHAFT | ||||
| 33231-52010 |
NLP130..6FS |
1 | ||
| 33231H - PIN, SLOTTED SPRING(FOR SHIFT & SELECT LEVER SHAFT HEAD | ||||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-20041 |
NLP130,NSP130..6F *206 |
1 | ||
| 33240-20041 |
NLP130,NSP130..6F *202 |
1 | ||
| 33240-0D020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33240-20041 |
NLP130..6FS |
1 | ||
| 33240A - SHAFT ASSY, GEAR SHIFT FORK, NO.2 | ||||
| 33240-20072 |
NLP130,NSP130..6F *206 |
1 | ||
| 33240-52031 |
NLP130..6FS |
1 | ||
| 33250B - SHAFT ASSY, GEAR SHIFT FORK, NO.3 | ||||
| 33250-52130 |
NLP130..6FS |
1 | ||
| 33250-20130 |
NLP130,NSP130..6F *206 |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20120 |
NLP130,NSP130..6F *206 |
1 | ||
| 33251-52050 |
NLP130..6FS |
1 | ||
| 33251-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
NLP130..6FS L=22 |
1 | ||
| 90254-05011 |
NLP130,NSP130..6F L=28.0,*202,*206 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-0D020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33252-52030 |
NLP130..6FS |
1 | ||
| 33252-20060 |
NLP130,NSP130..6F *206 |
1 | ||
| 33252C - PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-0D030 |
NLP130,NSP130..6F *202 |
1 | ||
| 33256-20030 |
NLP130,NSP130..6F *206 |
1 | ||
| 33256-52020 |
NLP130..6FS |
1 | ||
| 33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) | ||||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 33260 - SHAFT ASSY, REVERSE SHIFT FORK(MTM) | ||||
| 33260-20010 |
NLP130,NSP130..6F *206 |
1 | ||
| 33260-52010 |
NLP130..6FS |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-52130 |
NLP130..6FS |
1 | ||
| 33261-05010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33261-20120 |
NLP130,NSP130..6F *206 |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-20061 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33266-52040 |
NLP130..6FS |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33926 - LEVER, SHIFT INNER, FRONT | ||||
| 33926-0D011 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926-20011 |
NLP130,NSP130..6F *206 |
1 | ||
| 33926-20010 |
NLP130,NSP130..6F *206 |
1 | ||
| 33926-52010 |
NLP130..6FS |
1 | ||
| 33926C - PIN, SLOTTED SPRING(FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 90254-05001 |
NLP130,NSP130..6F *202 |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
(1107- )6F

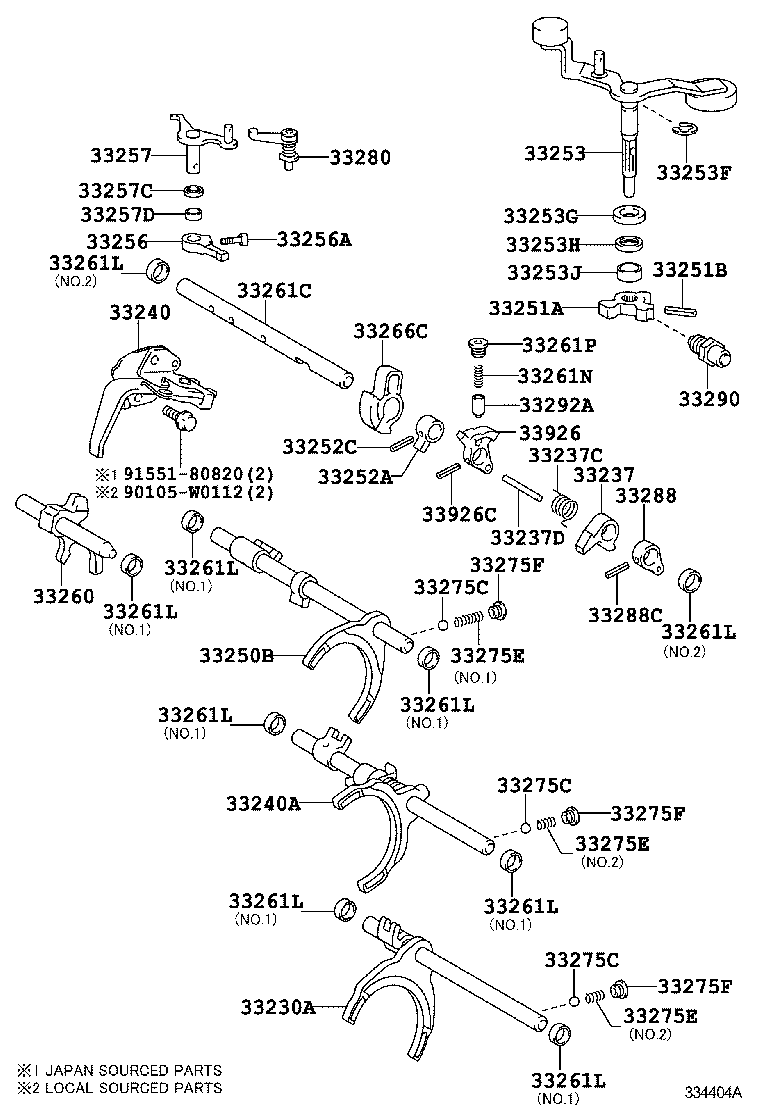

EC62,EC65(T/M NO.=**10************)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33230A - SHAFT ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33230-20051 |
NLP130,NSP130..6F *206 |
1 | ||
| 33230-20051 |
NLP130..6FS |
1 | ||
| 33237 - HEAD, RELEASE | ||||
| 33237-20030 |
NLP130,NSP130..6F *206 |
1 | ||
| 33237-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33237C - SPRING, TORSION(FOR RELEASE HEAD) | ||||
| 90508-27001 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33237D - PIN, STRAIGHT(FOR RELEASE HEAD) | ||||
| 90250-06042 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-20041 |
NLP130,NSP130..6F *206 |
1 | ||
| 33240-20041 |
NLP130,NSP130..6F *202 |
1 | ||
| 33240-0D020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33240-20041 |
NLP130..6FS |
1 | ||
| 33240A - SHAFT ASSY, GEAR SHIFT FORK, NO.2 | ||||
| 33240-20072 |
NLP130,NSP130..6F *206 |
1 | ||
| 33240-52031 |
NLP130..6FS |
1 | ||
| 33250B - SHAFT ASSY, GEAR SHIFT FORK, NO.3 | ||||
| 33250-52130 |
NLP130..6FS |
1 | ||
| 33250-20130 |
NLP130,NSP130..6F *206 |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20120 |
NLP130,NSP130..6F *206 |
1 | ||
| 33251-52050 |
NLP130..6FS |
1 | ||
| 33251-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
NLP130..6FS L=22 |
1 | ||
| 90254-05011 |
NLP130,NSP130..6F L=28.0,*202,*206 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-0D020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33252-52030 |
NLP130..6FS |
1 | ||
| 33252-20060 |
NLP130,NSP130..6F *206 |
1 | ||
| 33252C - PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-52010 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253F - RING, E(FOR SHIFT OUTER LEVER) | ||||
| 90523-15003 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253G - SPACER(FOR SHIFT OUTER LEVER) | ||||
| 90560-18017 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253H - SEAL, OIL(FOR SHIFT OUTER LEVER) | ||||
| 90310-18003 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33253J - BUSH(FOR SHIFT OUTER LEVER) | ||||
| 90384-W0012 |
NLP130,NSP130..6F *202 |
1 | ||
| 90384-18018 |
NLP130,NSP130..6F *206 |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-0D030 |
NLP130,NSP130..6F *202 |
1 | ||
| 33256-20030 |
NLP130,NSP130..6F *206 |
1 | ||
| 33256-52020 |
NLP130..6FS |
1 | ||
| 33256A - BOLT, SET (FOR SELECT INNER LEVER) | ||||
| 90110-08041 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-52020 |
NLP130..6F *202,*206 |
1 | ||
| 33257-52021 |
NLP130..6F *202 |
1 | ||
| 33257-0D010 |
NLP130..6F *202 |
1 | ||
| 33257-52021 |
NLP130..6F *206 |
1 | ||
| 33257C - SEAL, OIL(FOR OUTER SELECT LEVER) | ||||
| 90310-15005 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33257D - BUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER) | ||||
| 90384-15002 |
NLP130,NSP130..6F *206 |
1 | ||
| 90384-W0003 |
NLP130,NSP130..6F *202 |
1 | ||
| 33260 - SHAFT ASSY, REVERSE SHIFT FORK(MTM) | ||||
| 33260-20010 |
NLP130,NSP130..6F *206 |
1 | ||
| 33260-52010 |
NLP130..6FS |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-52130 |
NLP130..6FS |
1 | ||
| 33261-05010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33261-20120 |
NLP130,NSP130..6F *206 |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
NLP130,NSP130..6F *206,NO.2 |
2 | ||
| 90384-14008 |
NLP130..6FS NO.1 |
7 | ||
| 90384-W0009 |
NLP130,NSP130..6F *202,NO.1 |
7 | ||
| 90384-14008 |
NLP130,NSP130..6F *206,NO.1 |
7 | ||
| 90384-16005 |
NLP130..6FS NO.2 |
2 | ||
| 90384-W0010 |
NLP130,NSP130..6F *202,NO.2 |
2 | ||
| 33261N - SPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90501-11108 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33261P - PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SH | ||||
| 90341-16013 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-20061 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33266-52040 |
NLP130..6FS |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90360-10003 |
NLP130..6FS |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
NLP130..6FS NO.1 |
1 | ||
| 90501-11110 |
NLP130,NSP130..6F *202,NO.2,*206,NO.2 |
2 | ||
| 90501-13088 |
NLP130,NSP130..6F *202,NO.1,*206,NO.1 |
1 | ||
| 90501-11110 |
NLP130..6FS NO.2 |
2 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NLP130,NSP130..6F *202,*206 |
3 | ||
| 90341-12004 |
NLP130..6FS |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20050 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33288 - BLOCK, SELECT STOPPER | ||||
| 33288-20020 |
NLP130,NSP130..6F *206 |
1 | ||
| 33288-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33288C - PIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK) | ||||
| 90254-05001 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-02010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33290-52040 |
NLP130,NSP130..6F *206 |
1 | ||
| 33292A - PIN, LOCK BALL | ||||
| 33292-20010 |
NLP130,NSP130..6F *206 |
1 | ||
| 33292-05020 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926 - LEVER, SHIFT INNER, FRONT | ||||
| 33926-0D011 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926-0D010 |
NLP130,NSP130..6F *202 |
1 | ||
| 33926-20011 |
NLP130,NSP130..6F *206 |
1 | ||
| 33926-20010 |
NLP130,NSP130..6F *206 |
1 | ||
| 33926-52010 |
NLP130..6FS |
1 | ||
| 33926C - PIN, SLOTTED SPRING(FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
NLP130..6FS |
1 | ||
| 90254-05001 |
NLP130,NSP130..6F *202 |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 91551-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
