NLP130L-CGLSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1NDTV

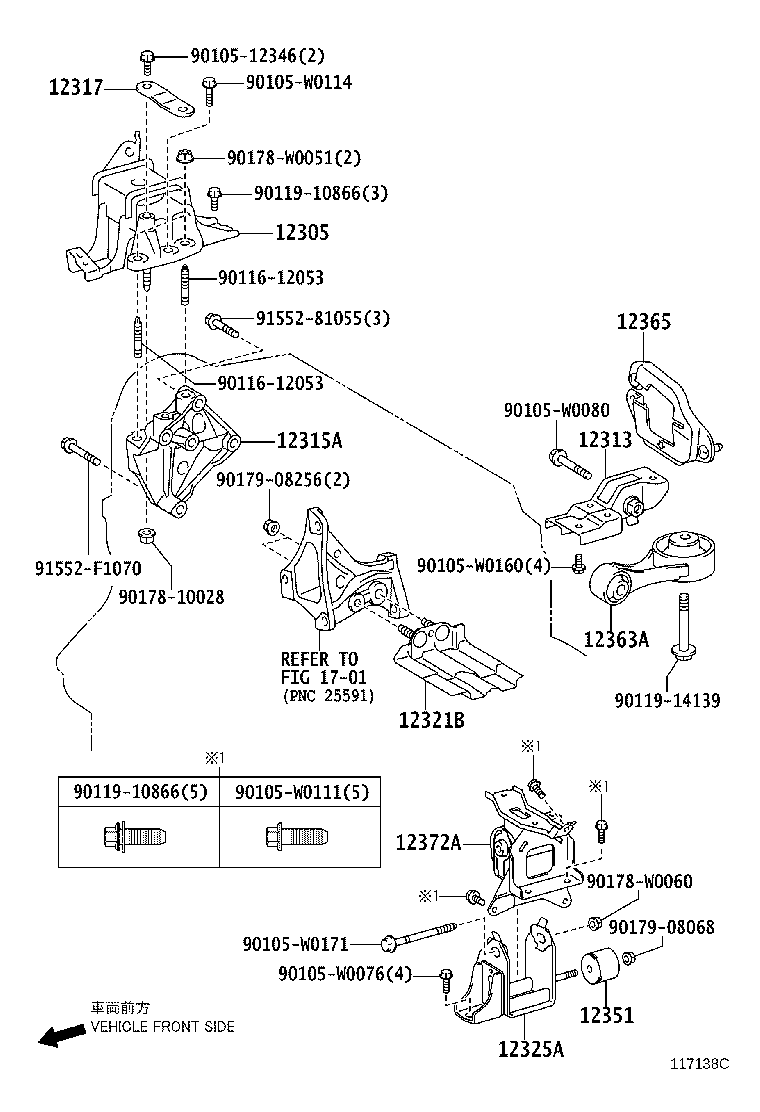

Click highlighted areas on diagram

diagram 12305 12313 12315A 12317 12321B 12325A 12351 12363A 12365 12372A 1701 9010512346 90105W0076 90105W0080 90105W0111 90105W0114 90105W0160 90105W0171 9011612053 9011612053 9011910866 9011910866 9011914139 9017810028 90178W0051 90178W0060 9017908068 9017908256 9155281055 91552F1070
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0N080

1NDTV..NLP130

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0N010

1NDTV..NLP130

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-33050

1NDTV..NLP130

(J)

 1
12315-0N010

1NDTV..NLP130

(L)

 1
12315-33050

1NDTV..NLP130

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-0N020

1NDTV..NLP130

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52040

1NDTV..NLP130

 1
43409-52040

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-GENERAL DESTINATION

 1
43409-52040

1NDTV..NLP130..LHD..6F

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0N070

1NDTV..NLP130

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0N040

1NDTV..NLP130

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0N040

1NDTV..NLP130

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1N#..NHP130,NLP130,NSP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
12365-40010

1N#..NHP130,NLP130,NSP130..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0N090

1NDTV..NLP130

 1
Common parts
90105-12346
90105-W0076
90105-W0080
90105-W0111
90105-W0114
90105-W0160
90105-W0171
90116-12053
90119-10866
90119-14139
90178-10028
90178-W0051
90178-W0060
90179-08068
90179-08256
91552-81055
91552-F1070
Linked diagrams
1701
