Toyota Yaris/hybrid (frp) NLP130 FRONT DOOR PANEL & GLASS

NLP130L-CGLNXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014

Engine 1NDTV

Transmission 6FS MTM

Displacement 2500cc

Power 168 HP (125 kW)

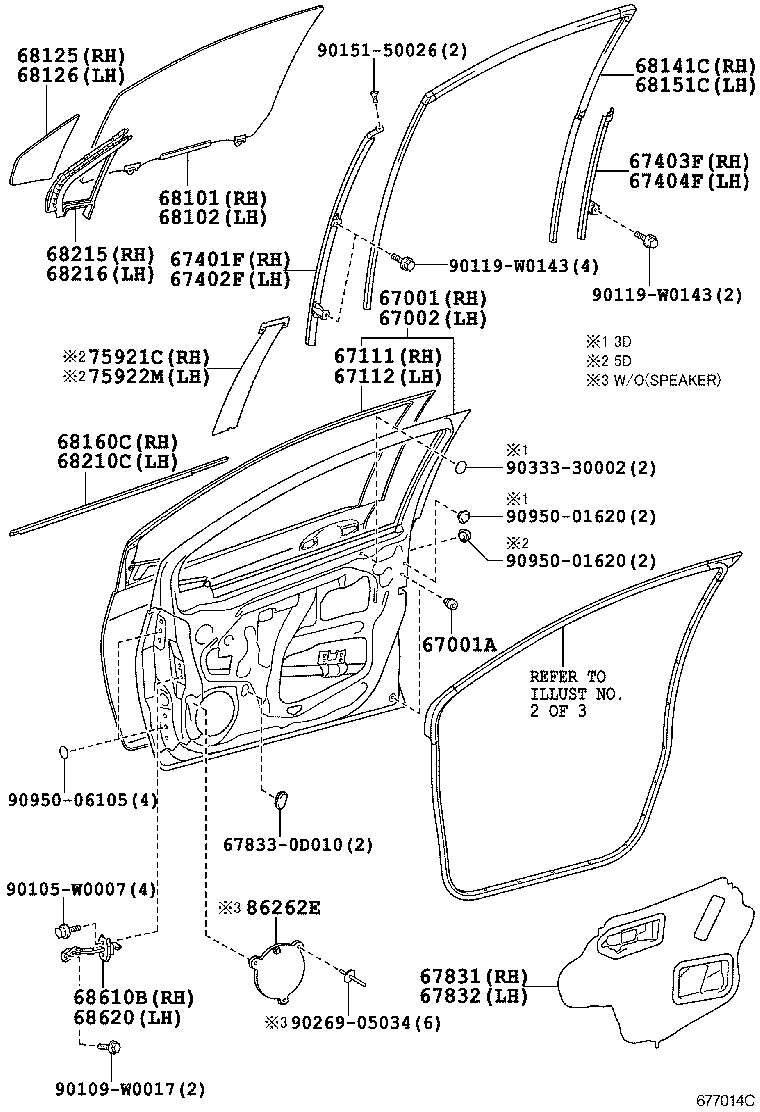

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0D240	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09124	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0D240	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-52220	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-52210	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-52160	KSP130,NHP130,NLP130,NSP130..LHD	07/2011 - 12/2999	1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-52170	KSP130,NHP130,NLP130,NSP130..LHD	07/2011 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-52250	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-52220	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-0D190	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-0D060	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-0D201	KSP130,NLP130,NSP130..3D *TEM,T=3.5,GREEN	03/2013 - 07/2014	1
68110-0D200	KSP130,NLP130,NSP130..3D *TEM,T=3.5,GREEN	07/2011 - 02/2013	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-0D200	KSP130,NLP130,NSP130..3D *TEM,T=3.5,GREEN	07/2011 - 02/2013	1
68120-0D201	KSP130,NLP130,NSP130..3D *TEM,T=3.5,GREEN	03/2013 - 07/2014	1
68125 - GLASS, FRONT DOOR FIX WINDOW, RH
68125-0D021	KSP130,NHP130,NLP130,NSP130 *TEM,T=3.5,GREEN	03/2013 - 12/2999	1
68125-0D020	KSP130,NHP130,NLP130,NSP130 *TEM,T=3.5,GREEN	07/2011 - 02/2013	1
68126 - GLASS, FRONT DOOR FIX WINDOW, LH
68126-0D021	KSP130,NHP130,NLP130,NSP130 *TEM,T=3.5,GREEN	03/2013 - 12/2999	1
68126-0D020	KSP130,NHP130,NLP130,NSP130 *TEM,T=3.5,GREEN	07/2011 - 02/2013	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-0D170	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
68151C - RUN, FRONT DOOR GLASS, LH
68151-0D160	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-0D160	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-0D160	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68215-0D040	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68216-0D040	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-52180	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-52180	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
Common parts
67833-0D010
90105-W0007
90109-W0017
90119-W0143
90151-50026
90269-05034
90333-30002
90950-01620
90950-06105

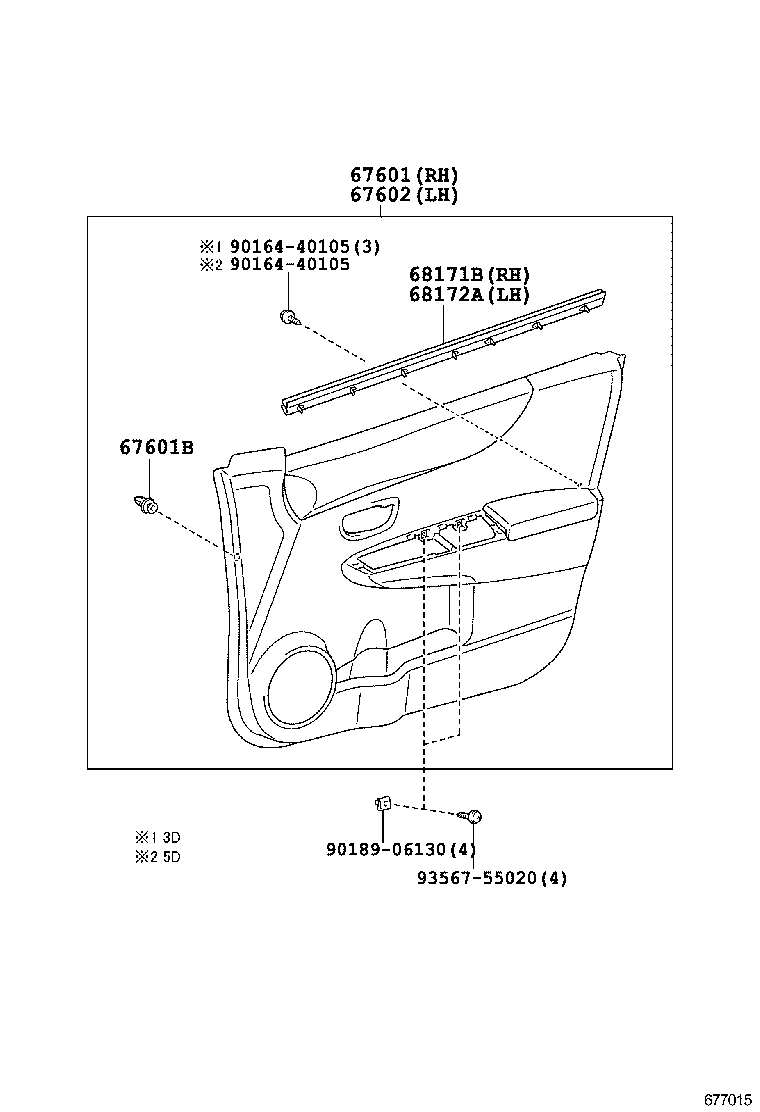

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-0DC70B2	KSP130,NLP130,NSP130..3D..(ACTIV,STYLE) MD.GRAY,TRIM1#	07/2011 - 07/2014	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-0DC70B2	KSP130,NLP130,NSP130..3D..(ACTIV,STYLE) MD.GRAY,TRIM1#	07/2011 - 07/2014	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-0D130	KSP130,NLP130,NSP130..3D	07/2011 - 07/2014	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-0D130	KSP130,NLP130,NSP130..3D	07/2011 - 07/2014	1
Common parts
90164-40105
90189-06130
93567-55020

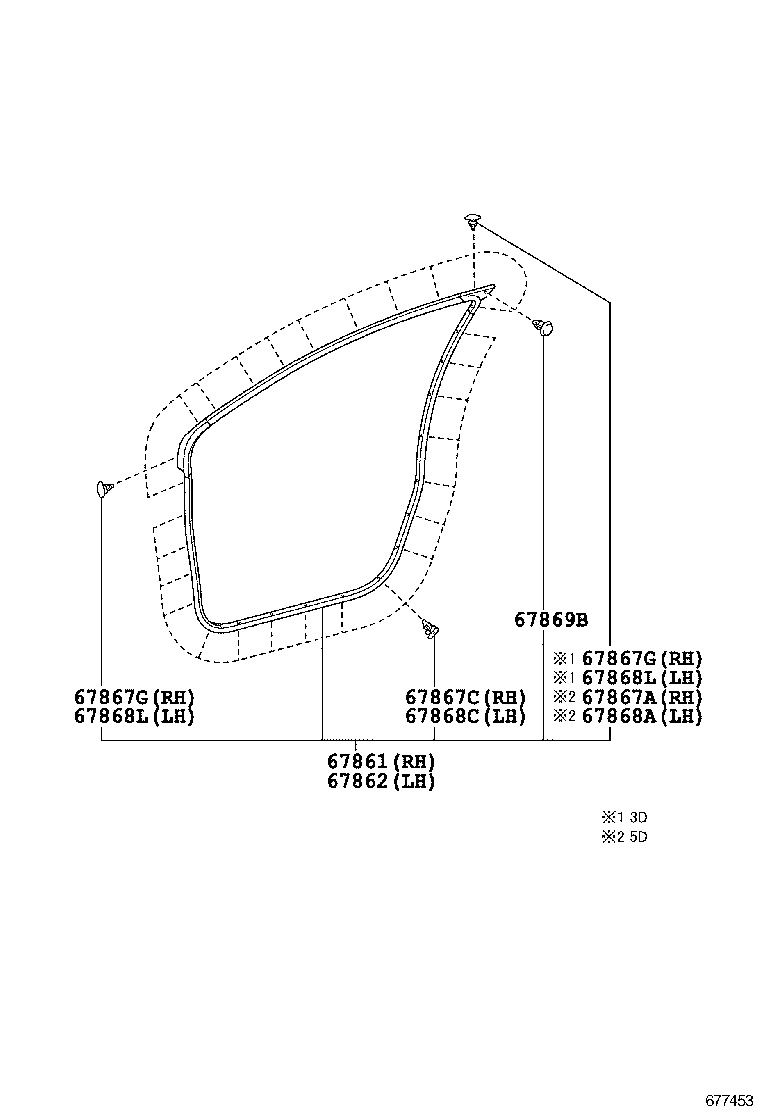

ILLUST NO. 2 OF 3(1107- )

Click highlighted areas on diagram

DOOR WEATHERSTRIP

Part #	Description	Period	Qty
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0D140	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0D130	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	19
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52020	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	13
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52020	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	13
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	19
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52010	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	13
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52010	KSP130,NLP130,NSP130..3D	07/2011 - 12/2999	13
67869B - CLIP, FRONT DOOR WEATHERSTRIP
90467-06084	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	2

NLP130L-CGLNXW (2011)

ILLUST NO. 1 OF 3(1107- )

ILLUST NO. 3 OF 3(1107- )

ILLUST NO. 2 OF 3(1107- )
