NLP130L-CGLNXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )LHD

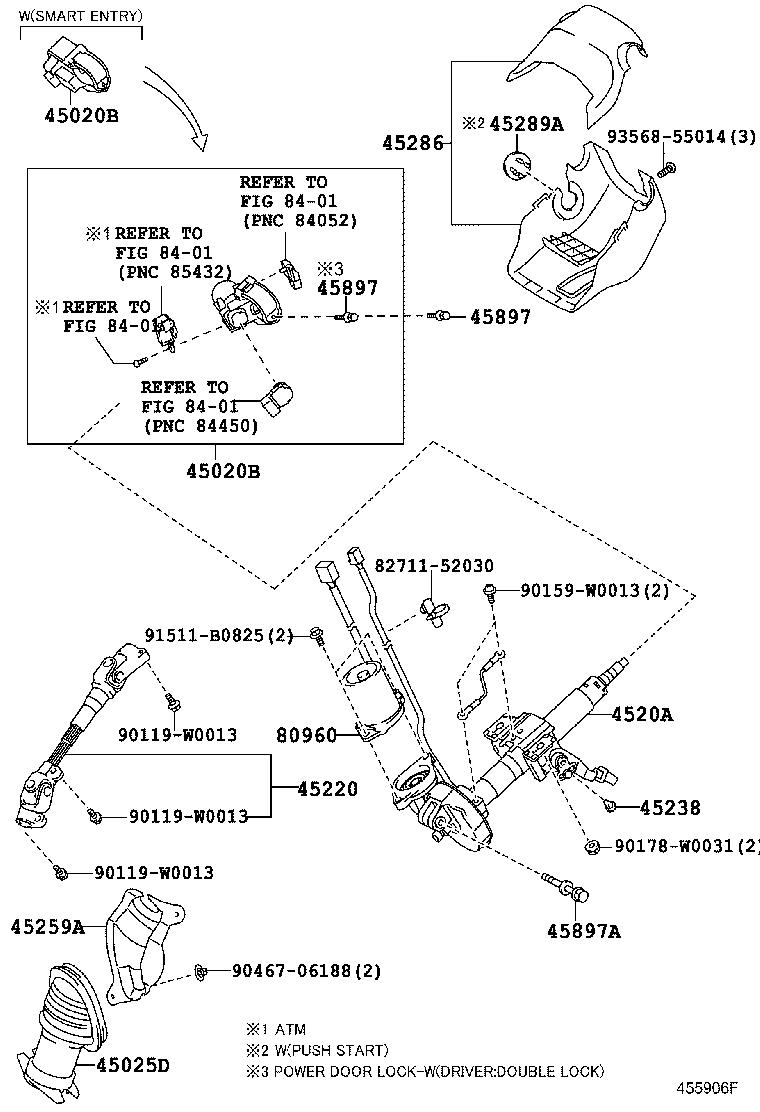

Click highlighted areas on diagram

diagram 45020B 45020B 45025D 4520A 45220 45238 45259A 45286 45289A 45897 45897 45897A 80960 8271152030 8401 8401 8401 8401 90119W0013 90119W0013 90119W0013 90159W0013 90178W0031 9046706188 91511B0825 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D080

NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..MTM..(ACTIV,LOUNG,STYLE)

 1
45020-0D120

NHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45020-0D081

NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..MTM..(ACTIV,LOUNG,STYLE)

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D080

NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..MTM..(ACTIV,LOUNG,STYLE)

 1
45020-0D120

NHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45020-0D081

NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..MTM..(ACTIV,LOUNG,STYLE)

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D062

KSP130,NHP130,NLP130,NSP130

 1
45025-0D061

KSP130,NLP130,NSP130

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-0D060

NHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
4520A-0D050

NHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-0D010

KSP130,NHP130,NLP130,NSP130..LHD

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

KSP130,NHP130,NLP130,NSP130

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45255-0D100

KSP130,NHP130,NLP130,NSP130..LHD

 1
45286 - COVER, STEERING COLUMN
45286-0D915C0

KSP130,NHP130,NLP130,NSP130

BLACK,TRIM1#

 1
45289A - SUPPORT, STEERING COLUMN COVER
45289-0D050C0

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NHP130;NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NHP130;NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

KSP130,NHP130,NLP130,NSP130

 1
45897-42010

KSP130,NHP130,NLP130,NSP130

 1
80960 - MOTOR ASSY, POWER STEERING
80960-52090

KSP130,NHP130,NLP130,NSP130..LHD

 1
Common parts
82711-52030
90119-W0013
90159-W0013
90178-W0031
90467-06188
91511-B0825
93568-55014
Linked diagrams
8401
