NLP130L-CGFSXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )3D

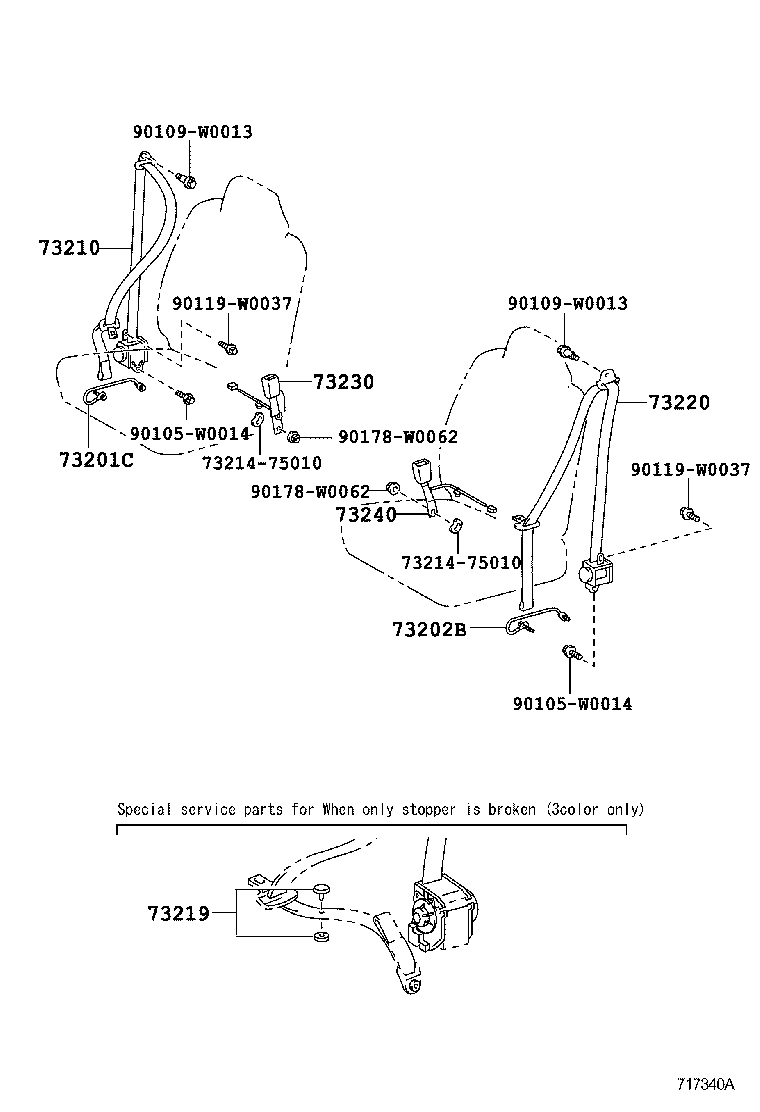

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73201C - BAR SUB-ASSY, FRONT SEAT BELT, OUTER RH | ||||
| 73201-0D020B0 |
KSP130,NLP130,NSP130..3D DK.GRAY |
1 | ||
| 73202B - BAR SUB-ASSY, FRONT SEAT BELT, OUTER LH | ||||
| 73202-0D020B0 |
KSP130,NLP130,NSP130..3D DK.GRAY |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0D300C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 73210-0D301C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
KSP130,NHP130,NLP130,NSP130 GRAY |
1 | ||
| 73219-33030 |
KSP130,NHP130,NLP130,NSP130 BEIGE |
1 | ||
| 73219-33010 |
KSP130,NHP130,NLP130,NSP130 BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0D290C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 73220-0D291C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0D340C0 |
KSP130,NSP130..LHD..3D;NLP130..LHD..(ACTIV,STD);NLP130..LHD..3D..(LOUNG,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD) BLACK,TRIM1# |
1 | ||
| 73230-0D360C0 |
KSP130,NSP130..LHD..3D;NLP130..LHD..(ACTIV,STD);NLP130..LHD..3D..(LOUNG,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0D330C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 73230-0D350C0 |
KSP130,NHP130,NLP130,NSP130..LHD SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-W0014 | ||||
| 90109-W0013 | ||||
| 90119-W0037 | ||||
| 90178-W0062 | ||||
(1107- )

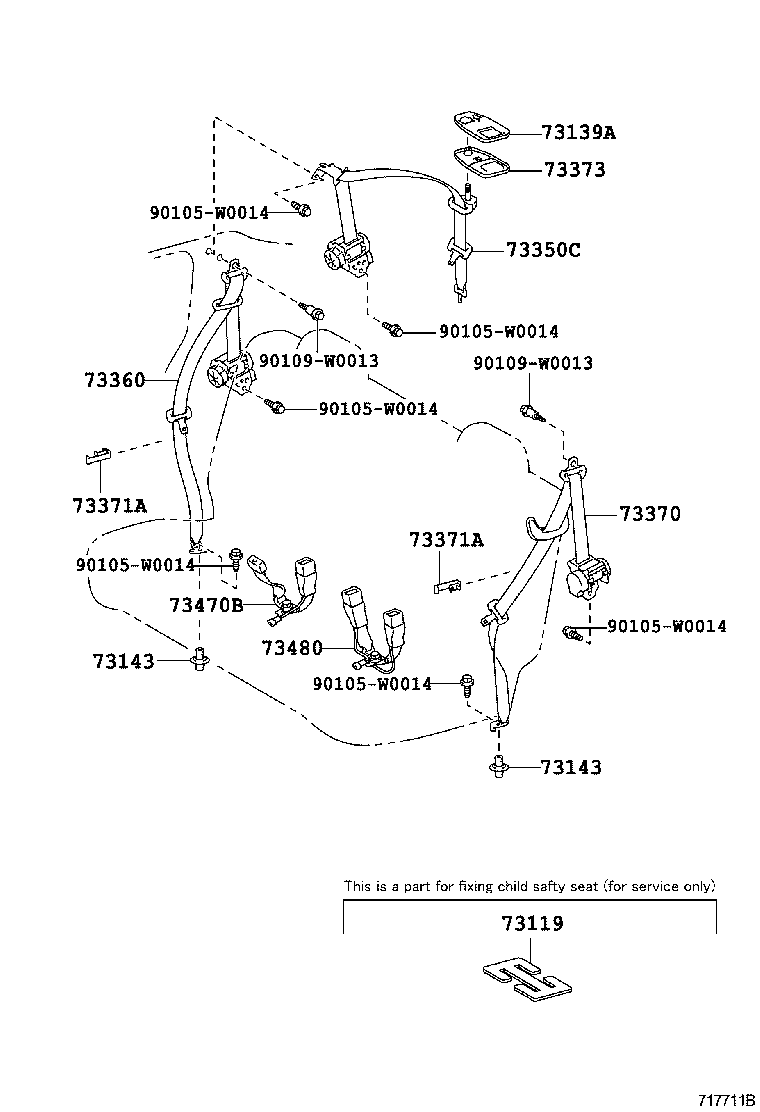

REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 73139A - COVER, SEAT BELT ANCHOR | ||||
| 73139-0D020B0 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73310-0D030C2 |
KSP130,NLP130,NSP130..3D;NHP130,NLP130..5D..(6FS,CVFC);KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..(LOUNG,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0D200C2 |
KSP130,NLP130,NSP130..3D;NHP130,NLP130..5D..(6FS,CVFC);KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..(LOUNG,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0D170C2 |
KSP130,NLP130,NSP130..3D;NHP130,NLP130..5D..(6FS,CVFC);KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..(LOUNG,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73137-0D020B0 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-0D150C0 |
KSP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 73470-0D150C1 |
KSP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D120C1 |
KSP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 73480-0D120C0 |
KSP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-W0014 | ||||
| 90109-W0013 | ||||
