NLP130L-CGFSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KSP130,NLP130,NSP130

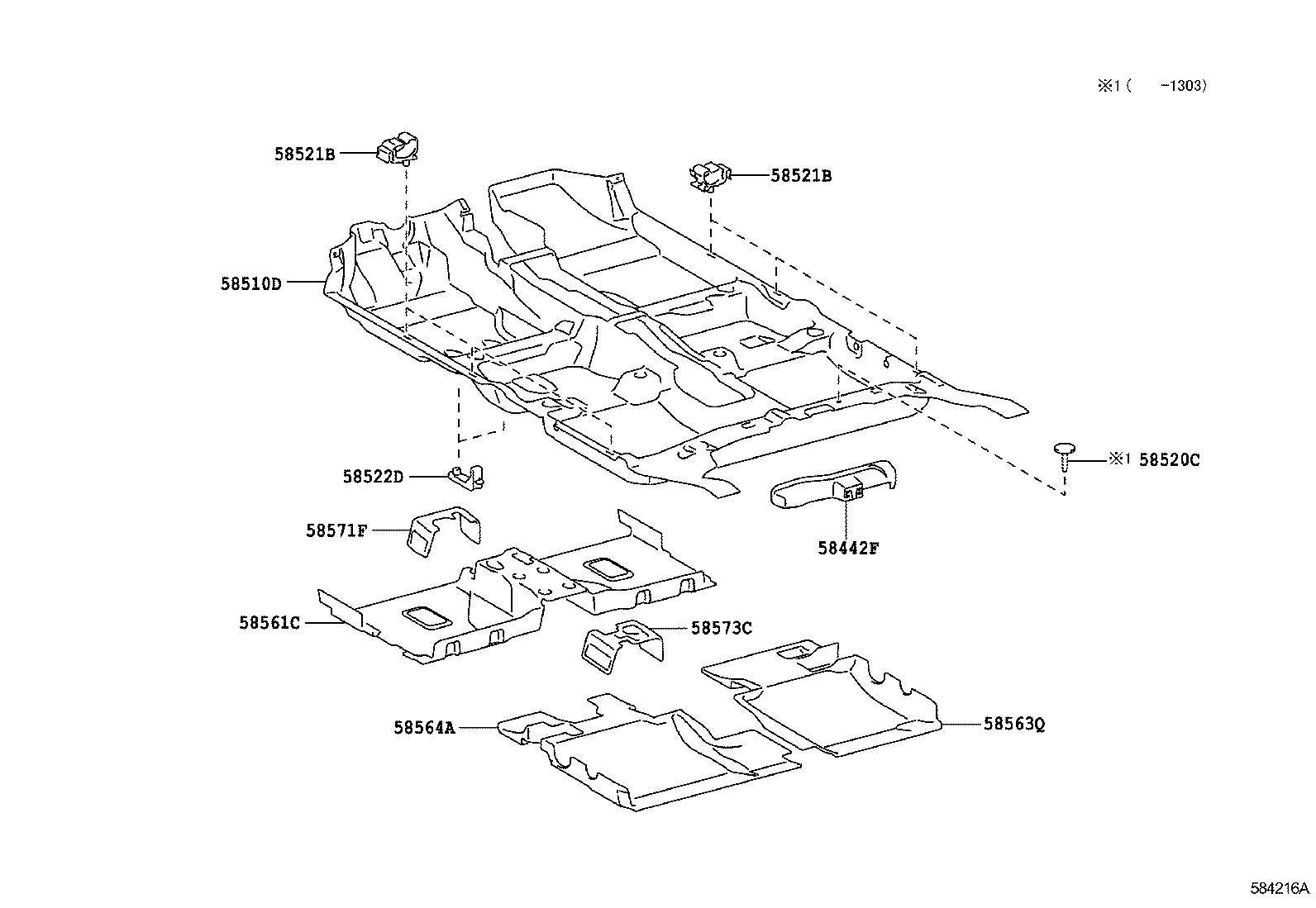

Click highlighted areas on diagram

diagram 58442F 58510D 58520C 58521B 58521B 58522D 58561C 58563Q 58564A 58571F 58573C
Part # Description Qty Price
58442F - COVER, JACK
58442-0D090

KSP130,NHP130,NLP130,NSP130

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0D830C0

NLP130..LHD..3D

BLACK,TRIM1#

 1
58510-0D830B2

NLP130..LHD..3D

DARK GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

KSP130,NLP130,NSP130

BLACK,TRIM1#

 1
58521B - HOOK, FLOOR CARPET
58521-0D060

KSP130,NLP130,NSP130..3D

 4
58521B - HOOK, FLOOR CARPET
58521-0D060

KSP130,NLP130,NSP130..3D

 4
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

KSP130,NHP130,NLP130,NSP130

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0D170

KSP130,NHP130,NLP130,NSP130

 1
58561-0D180

KSP130,NHP130,NLP130,NSP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-0D170

KSP130,NLP130,NSP130

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-0D140

KSP130,NLP130,NSP130

 1
58571F - PAD, FRONT FLOOR, FRONT
58571-0D030

KSP130,NHP130,NLP130,NSP130

 1
58573C - PAD, FRONT FLOOR CENTER
58573-0D010

KSP130,NHP130,NLP130,NSP130

 1
