NLP130L-CGFSXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )KSP130,NLP130,NSP130

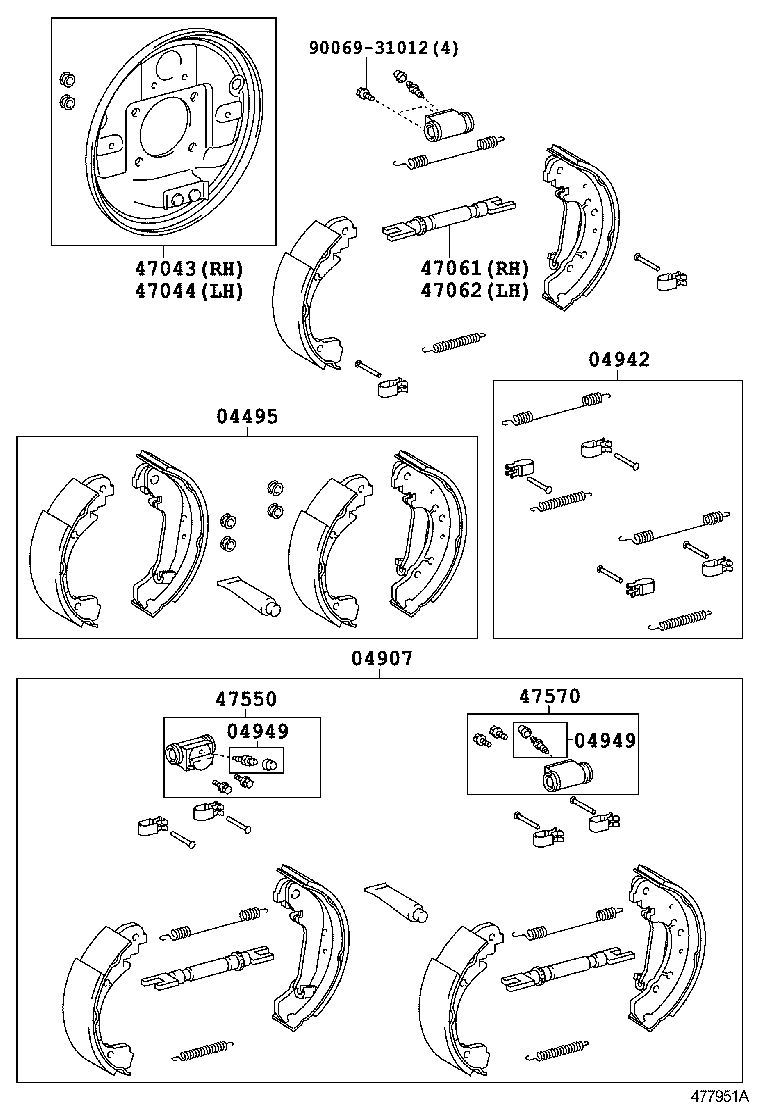

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-0D090 |
KSP130,NLP130,NSP130 |
1 | ||
| 04907 - FITTING KIT, REAR DRUM BRAKE | ||||
| 04907-0D030 |
KSP130,NLP130,NSP130 |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-0D050 |
KSP130,NLP130,NSP130 |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-09010 |
KSP130,NLP130,NSP130 |
2 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-09010 |
KSP130,NLP130,NSP130 |
2 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-09020 |
KSP130,NLP130,NSP130 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-09020 |
KSP130,NLP130,NSP130 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-0D040 |
KSP130,NLP130,NSP130 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47061-0D040 |
KSP130,NLP130,NSP130 |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-09130 |
KSP130,NLP130,NSP130 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-09130 |
KSP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90069-31012 | ||||
