NLP130L-CGFRXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )KSP130,NLP130,NSP130 ; (1204- )NHP130..ACTIV

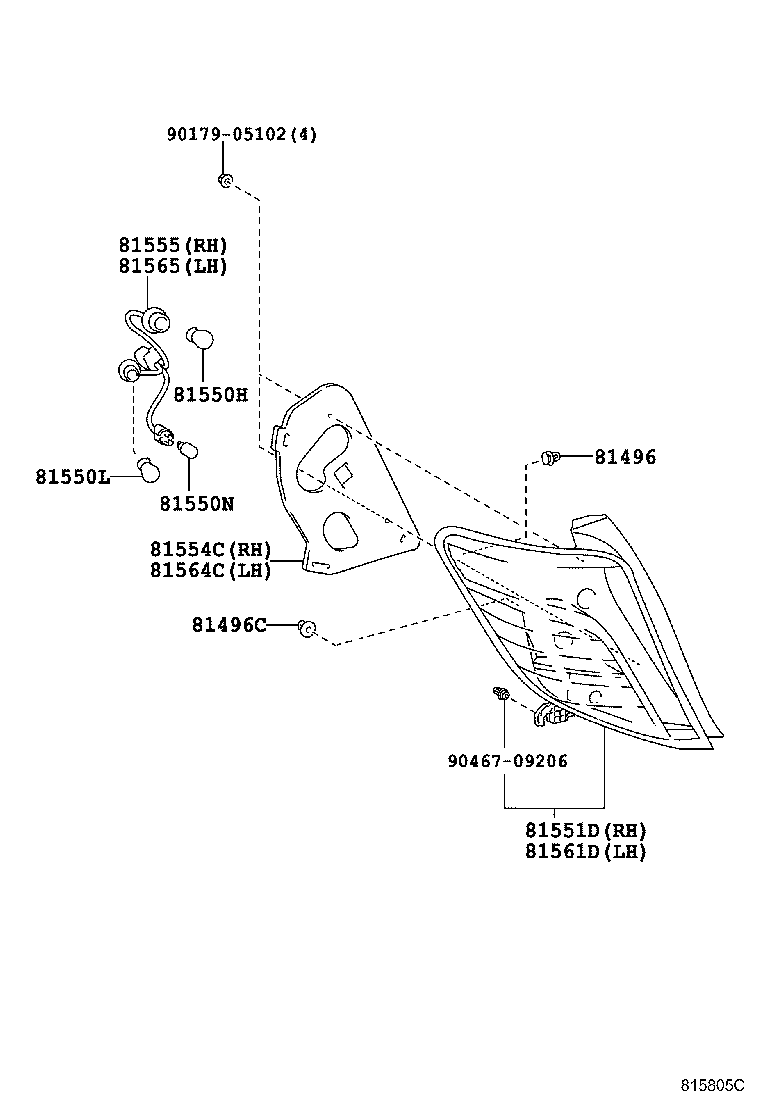

Click highlighted areas on diagram
BULB TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-52020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-WC005 |
KSP130,NLP130,NSP130 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-WF005 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-WB007 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| 81554C - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| 81564C - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90179-05102 | ||||
| 90467-09206 | ||||
