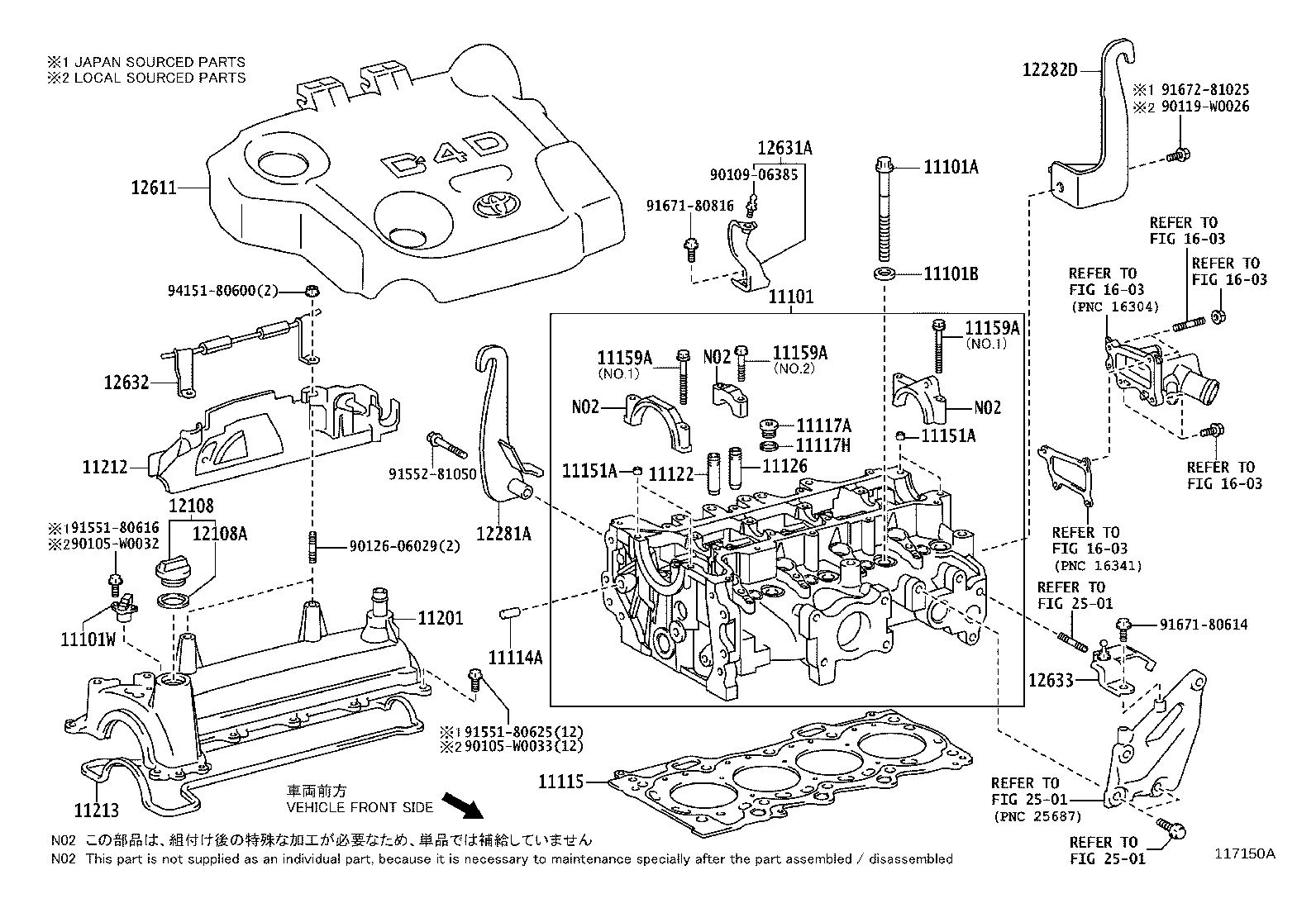

NLP130L-CGFRXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-33061 |
1NDTV..NLP130 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02171 |
1NDTV..NLP130 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13042 |
1NDTV..NLP130 |
10 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05029 |
1NDTV..NLP130 |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-10030 |
1NDTV..NLP130 L=36,OD=10 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-33040B0 |
1NDTV..NLP130 MARKB,REFER REPAIR MANUAL |
1 | ||
| 11115-33040C0 |
1NDTV..NLP130 MARKC,REFER REPAIR MANUAL |
1 | ||
| 11115-33040E0 |
1NDTV..NLP130 MARKE,REFER REPAIR MANUAL |
1 | ||
| 11115-33040D0 |
1NDTV..NLP130 MARKD,REFER REPAIR MANUAL |
1 | ||
| 11115-33040A0 |
1NDTV..NLP130 MARKA,REFER REPAIR MANUAL |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-14008 |
1NDTV..NLP130 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-14008 |
1NDTV..NLP130 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-33030 |
1NDTV..NLP130 O/S 0.05 |
4 | ||
| 11122-33030 |
1NDTV..NLP130 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-33030 |
1NDTV..NLP130 O/S 0.05 |
4 | ||
| 11122-33030 |
1NDTV..NLP130 STD |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NLP130 L=10,OD=8 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NLP130 L=10,OD=8 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1 |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2 |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1 |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2 |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1 |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2 |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-33041 |
1NDTV..NLP130 |
1 | ||
| 11201-33041 |
1NDTV..NLP130 (J) |
1 | ||
| 11201-0N020 |
1NDTV..NLP130 (L) |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-33031 |
1NDTV..NLP130 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-33030 |
1NDTV..NLP130 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-28010 |
1NDTV..NLP130 |
1 | ||
| 12180-38010 |
1NDTV..NLP130 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1NDTV..NLP130 |
1 | ||
| 90430-37004 |
1NDTV..NLP130 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-33050 |
1NDTV..NLP130 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-33022 |
1NDTV..NLP130 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0N041 |
1NDTV..NLP130 |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-33020 |
1NDTV..NLP130 |
1 | ||
| 12631-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12631-33020 |
1NDTV..NLP130 (J) |
1 | ||
| 12632 - BRACKET, ENGINE COVER, NO.2 | ||||
| 12632-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12632-33041 |
1NDTV..NLP130 (J) |
1 | ||
| 12632-33041 |
1NDTV..NLP130 |
1 | ||
| 12633 - BRACKET, ENGINE COVER, NO.3 | ||||
| 12633-33020 |
1NDTV..NLP130 |
1 | ||
| 12633-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12633-33020 |
1NDTV..NLP130 (J) |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90109-06385 | ||||
| 90119-W0026 | ||||
| 90126-06029 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91552-81050 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2501 | ||||
