NLP130L-CGFNXW (2011)
Toyota Yaris/Hybrid (Frp)

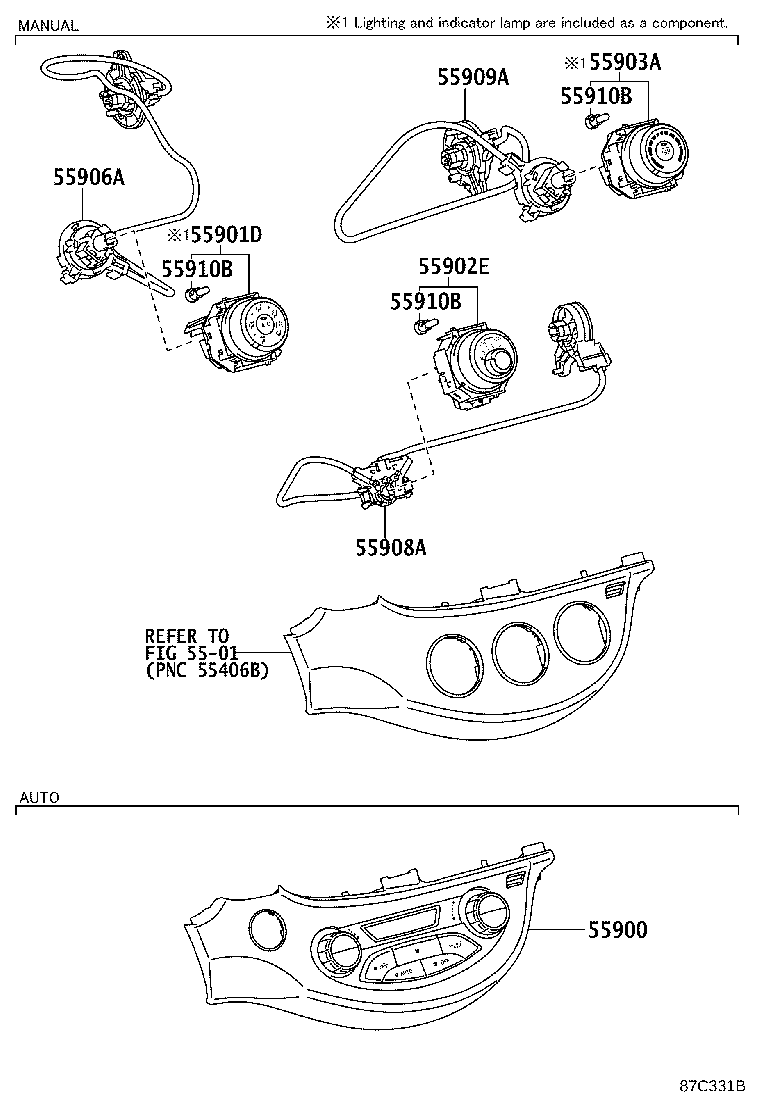

ILLUST NO. 1 OF 3(1107- )LHD
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-0D330C0 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STYLE) FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1# |
1 | ||
| 55900-0D310C0 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STYLE) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1# |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-0D290 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55901-0D290 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION,CHROME PLATED |
1 | ||
| 55901-0D300 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-DEALER OPTION,W/O(AIR CONDITIONER) |
1 | ||
| 55901-0D290 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 55901-0D290 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 55901-0D290 |
KSP130,NLP130,NSP130..ACTIV,STYLE |
1 | ||
| 55901-0D300 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-0D200 |
KSP130,NLP130,NSP130..ACTIV,STYLE |
1 | ||
| 55902-0D200 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-0D290 |
KSP130,NLP130,NSP130..ACTIV,STYLE |
1 | ||
| 55903-0D300 |
NLP130..LHD..(ACTIV,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 55903-0D290 |
NLP130..LHD..(ACTIV,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55903-0D290 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55906-52132 |
KSP130,NLP130,NSP130..ACTIV,STD,STYLE |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52120 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STYLE) FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55908-52120 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
KSP130,NLP130,NSP130..ACTIV,STD,STYLE |
1 | ||
| 55909-52120 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
KSP130,NLP130,NSP130..ACTIV,STD,STYLE |
1 | ||
| 90010-01142 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 90010-01142 |
NLP130..LHD..(ACTIV,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
KSP130,NLP130,NSP130..ACTIV,STD,STYLE |
1 | ||
| 90010-01142 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 90010-01142 |
NLP130..LHD..(ACTIV,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
KSP130,NLP130,NSP130..ACTIV,STD,STYLE |
1 | ||
| 90010-01142 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 90010-01142 |
NLP130..LHD..(ACTIV,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 3 OF 3(1107- )LHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88625-47021 |
KSP130,NLP130,NSP130..ACTIV,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1107- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-0D080 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-0D210 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-0D180 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-0D010 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STYLE) FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0D140 |
KSP130,NLP130,NSP130..ACTIV,STD,STYLE |
1 | ||
| 55950-0D140 |
KSP130,NLP130,NSP130..ACTIV,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 55950-0D150 |
KSP130,NLP130,NSP130..ACTIV,STYLE FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-0D130 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-0D240 |
KSP130,NHP130,NLP130..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-0D240 |
KSP130,NHP130,NLP130..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-0D260 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION,RHD |
1 | ||
| 87211-0D230 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 87211-0D230 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION,LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-0D030 |
KSP130,NHP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-0D060 |
KSP130,NHP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-0D060 |
KSP130,NHP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-0D030 |
KSP130,NHP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90119-W0068 | ||||
| 90167-W0007 | ||||
| 90183-05094 | ||||
| Linked diagrams | ||||
| 8714 | ||||
