NLP130L-CGFNXW (2011)
Toyota Yaris/Hybrid (Frp)

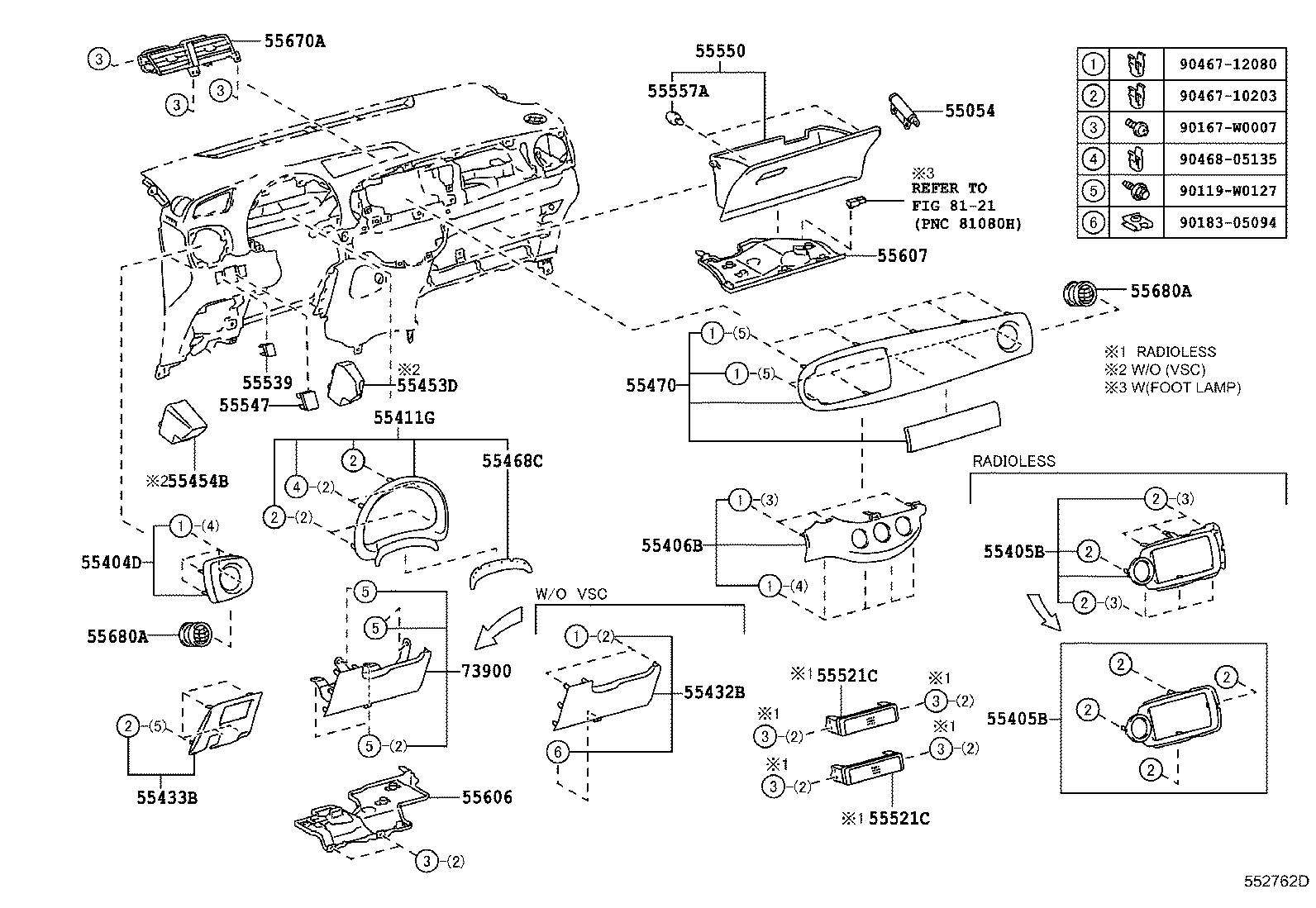

ILLUST NO. 2 OF 2(1107- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0D010B0 |
NLP130..5D..6FS..(ACTIV,STYLE);NLP130,NSP130..5D..(6F,CVFC)..STYLE;KSP130,NLP130,NSP130..3D..(ACTIV,STYLE) MD.GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D420 |
KSP130,NLP130,NSP130..ACTIV,STD AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 86451-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D420 |
KSP130,NLP130,NSP130..ACTIV,STD AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 86451-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D490C0 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 55406-0D490C0 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STYLE) FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D140C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D030C0 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC) VSC-WITHOUT,BLACK,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D030C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52130 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC) VSC-WITHOUT |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52120 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC) VSC-WITHOUT |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D060 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-0D030B0 |
NLP130..5D..6FS..(ACTIV,STYLE);NLP130,NSP130..5D..(6F,CVFC)..STYLE;KSP130,NLP130,NSP130..3D..(ACTIV,STYLE) MD.GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
KSP130,NHP130,NLP130,NSP130..ACTIV,STD AUDIO-RADIO LESS 6SPEAKER |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
KSP130,NHP130,NLP130,NSP130..ACTIV,STD AUDIO-RADIO LESS 6SPEAKER |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D150C0 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 55550-0D170C0 |
KSP130,NLP130,NSP130..LHD..(ACTIV,STYLE) FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D050 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D050 |
NHP130,NLP130..LHD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D070C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0D020C0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE BLACK,TRIM1# |
2 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0D020C0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE BLACK,TRIM1# |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D031C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 73900-0D030C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| Linked diagrams | ||||
| 8121 | ||||

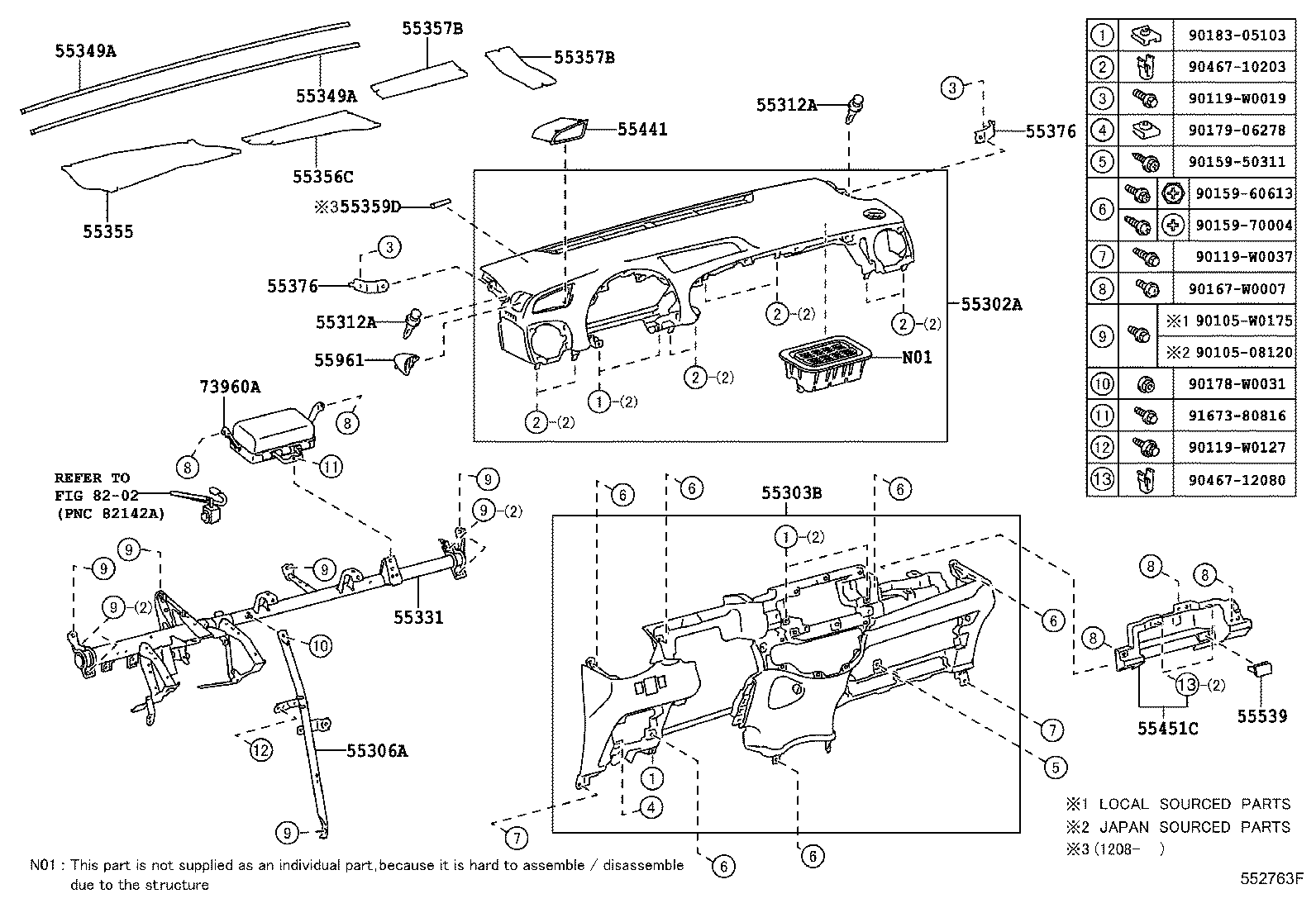

ILLUST NO. 1 OF 2(1107- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D160C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D120C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D170 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55306-0D190 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC) VSC-WITHOUT |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D420 |
KSP130,NLP130,NSP130..LHD |
1 | ||
| 55330-0D410 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC) VSC-WITHOUT |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55355-0D031 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55355-0D031 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D120 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D120 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D150 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D150 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-0D150 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-0D030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-0D030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-0D120C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-0D110C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-0D010C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 73960-0D111 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-W0175 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90159-50311 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 8202 | ||||
