NLP130L-CGFNXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )LHD

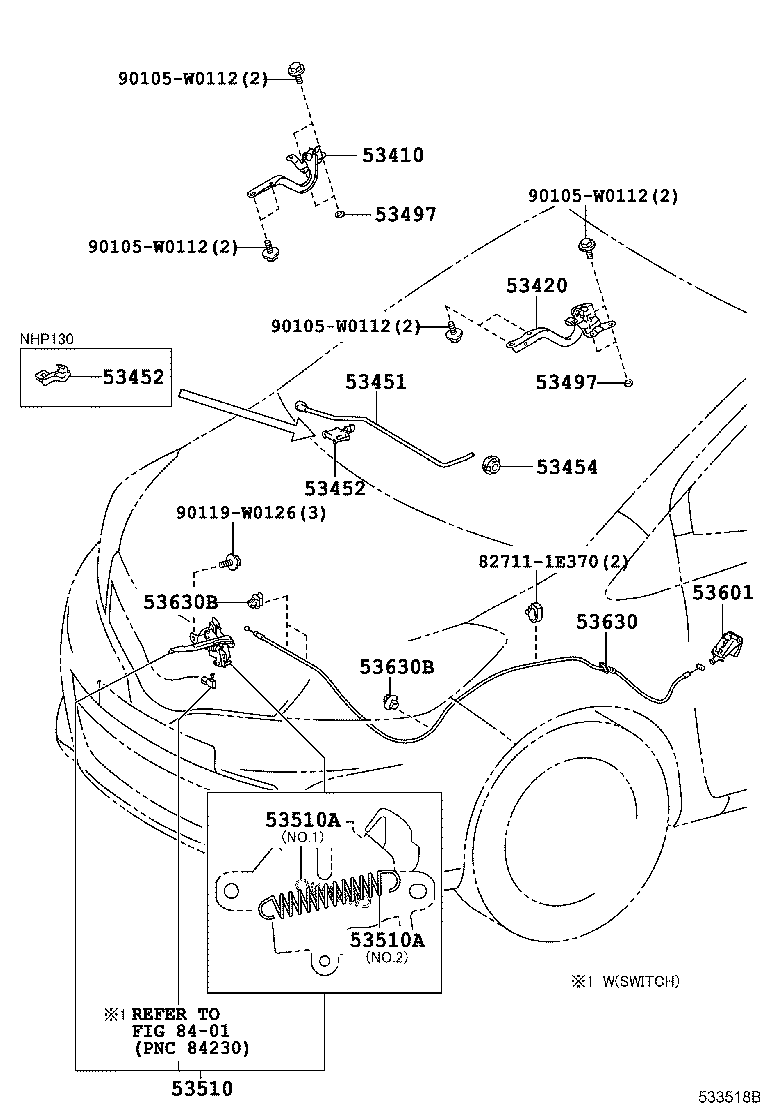

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53452 53454 53497 53497 53510 53510A 53510A 53601 53630 53630B 53630B 827111E370 8401 90105W0112 90105W0112 90105W0112 90105W0112 90119W0126
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0D320

KSP130,NHP130,NLP130,NSP130

 1
53420 - HINGE ASSY, HOOD, LH
53420-0D320

KSP130,NHP130,NLP130,NSP130

 1
53451 - ROD, HOOD SUPPORT
53440-0D100

KSP130,NHP130,NLP130,NSP130

 1
53452 - HOLDER, HOOD STAY
53452-0D010

KSP130,NLP130,NSP130

 1
53452 - HOLDER, HOOD STAY
53452-0D010

KSP130,NLP130,NSP130

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-52020

KSP130,NHP130,NLP130,NSP130

 1
53497 - PAD, HOOD HINGE, NO.1
53497-05010

KSP130,NHP130,NLP130,NSP130

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-05010

KSP130,NHP130,NLP130,NSP130

T=1.0

 4
53510 - LOCK ASSY, HOOD
53510-0D300

KSP130,NHP130,NLP130..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-W0006

KSP130,NHP130,NLP130,NSP130

WD=1.6,CW=13,NO.2

 1
90506-W0005

KSP130,NHP130,NLP130,NSP130..LHD

WD=1.0,CW=24,NO.1

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-W0006

KSP130,NHP130,NLP130,NSP130

WD=1.6,CW=13,NO.2

 1
90506-W0005

KSP130,NHP130,NLP130,NSP130..LHD

WD=1.0,CW=24,NO.1

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-05030C0

KSP130,NHP130,NLP130,NSP130

BLACK,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-52120

KSP130,NHP130,NLP130,NSP130

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NLP130..LHD;KSP130,NHP130,NSP130

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NLP130..LHD;KSP130,NHP130,NSP130

 3
Common parts
82711-1E370
90105-W0112
90119-W0126
Linked diagrams
8401
