NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)

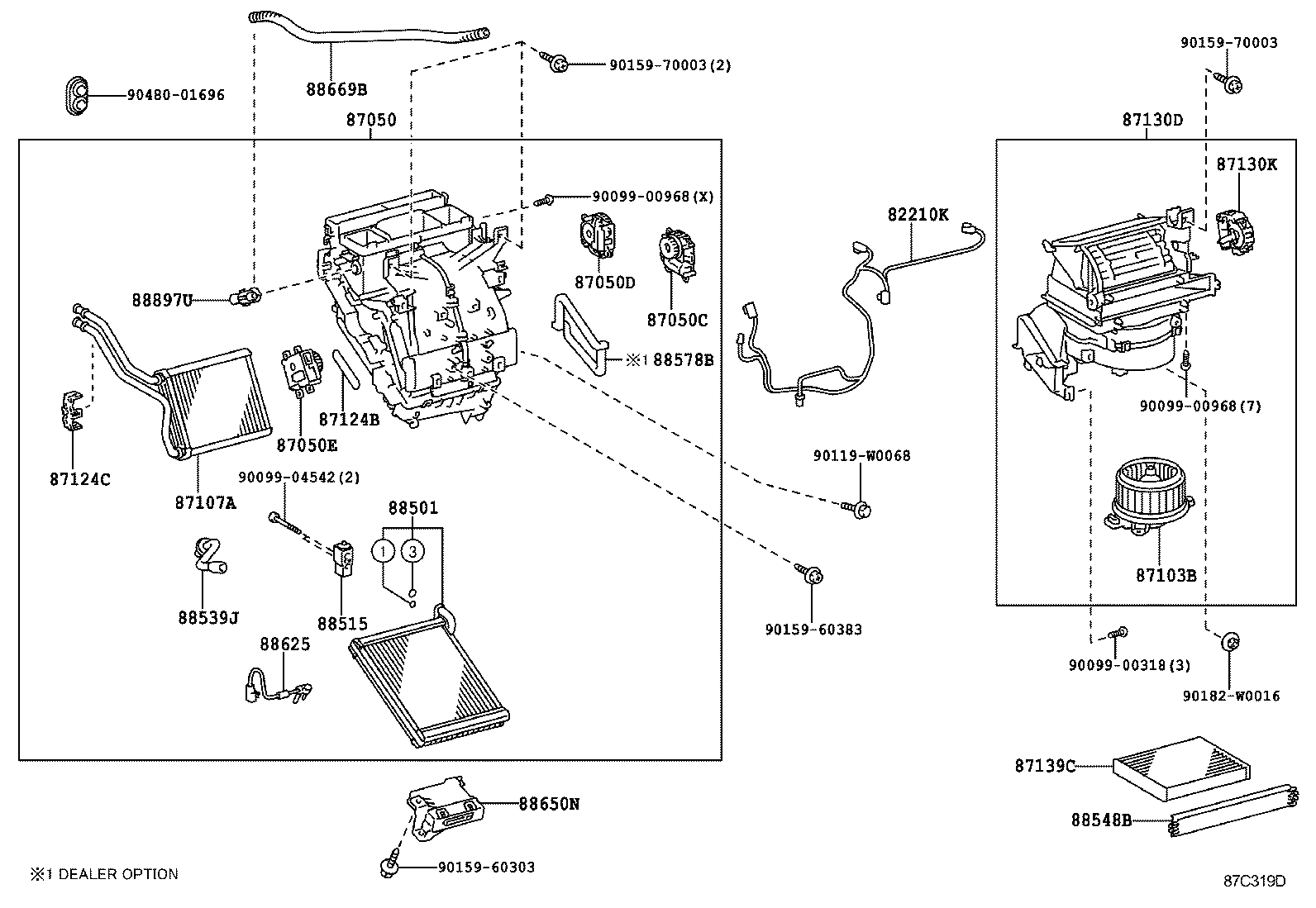

ILLUST NO. 1 OF 2(1107- )LHD..ACTIV,LOUNG,STYLE
AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52050 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 82212-52050 |
KSP130,NLP130,NSP130..LHD..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82212-52050 |
KSP130,NLP130,NSP130..LHD..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D390 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87050-0D370 |
KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0D021 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-0D031 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-0D051 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D220 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D120 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D080 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 87124C - CLAMP, HEATER | ||||
| 87124-33070 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D171 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0D041 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D070 |
KSP130,NHP130,NLP130,NSP130 POLLEN FILTER |
1 | ||
| 87139-50100 |
KSP130,NHP130,NLP130,NSP130 *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D200 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-0D200 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-0D300 |
KSP130,NLP130,NSP130 |
1 | ||
| 88501-0D200 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D180 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-52100 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88578-52100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88578-52100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D330 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D320 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-0D010 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-02180 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-W0068 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90182-W0016 | ||||
| 90480-01696 | ||||
ILLUST NO. 1 OF 2(1107- )LHD..ACTIV,LOUNG,STYLE
AUTO---COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52050 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 82212-52050 |
KSP130,NLP130,NSP130..LHD..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82212-52050 |
KSP130,NLP130,NSP130..LHD..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D390 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87050-0D370 |
KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0D021 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-0D031 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-0D051 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D220 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D120 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D060 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87114-0D060 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87114-0D060 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D080 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 87124C - CLAMP, HEATER | ||||
| 87124-33070 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D171 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0D041 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D070 |
KSP130,NHP130,NLP130,NSP130 POLLEN FILTER |
1 | ||
| 87139-50100 |
KSP130,NHP130,NLP130,NSP130 *DPF |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0D030 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87710-0D030 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87710-0D030 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D200 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-0D200 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-0D300 |
KSP130,NLP130,NSP130 |
1 | ||
| 88501-0D200 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D180 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-52100 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88578-52100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88578-52100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D330 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D320 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-0D010 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-02180 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-W0017 | ||||
| 90119-W0068 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90182-W0016 | ||||
| 90480-01696 | ||||
ILLUST NO. 1 OF 2(1107- )KSP130,NLP130,NSP130..LHD
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D390 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87050-0D370 |
KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D220 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D120 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D080 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D171 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K090 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LHD..LOUNG COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LHD..LOUNG COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87138-0K090 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D070 |
KSP130,NHP130,NLP130,NSP130 POLLEN FILTER |
1 | ||
| 87139-50100 |
KSP130,NHP130,NLP130,NSP130 *DPF |
1 | ||
| 87174G - GUIDE, AIR HEATER | ||||
| 87174-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87174-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D180 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D330 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D320 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-W0068 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90182-W0016 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1107- )KSP130,NLP130,NSP130..LHD
W/O(AIR CONDITIONER)---COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D101 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-0D181 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D011 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-0D390 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87050-0D370 |
KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D220 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D100 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D100 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87103-0D101 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D120 |
NHP130;KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 87107-0D051 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87107-0D051 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D060 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87114-0D060 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87114-0D060 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87121-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87121-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D080 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-0D091 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D091 |
KSP130,NLP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-0D171 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..LOUNG |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K090 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LHD..LOUNG COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LHD..LOUNG COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87138-0K090 |
NLP130..LHD..LOUNG COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87138-0K090 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D070 |
KSP130,NHP130,NLP130,NSP130 POLLEN FILTER |
1 | ||
| 87139-50100 |
KSP130,NHP130,NLP130,NSP130 *DPF |
1 | ||
| 87174G - GUIDE, AIR HEATER | ||||
| 87174-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87174-0D010 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87174-0D010 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0D030 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87710-0D030 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 87710-0D030 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D180 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D330 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D320 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88650-0D340 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D350 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-0D360 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0068 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90182-W0016 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||

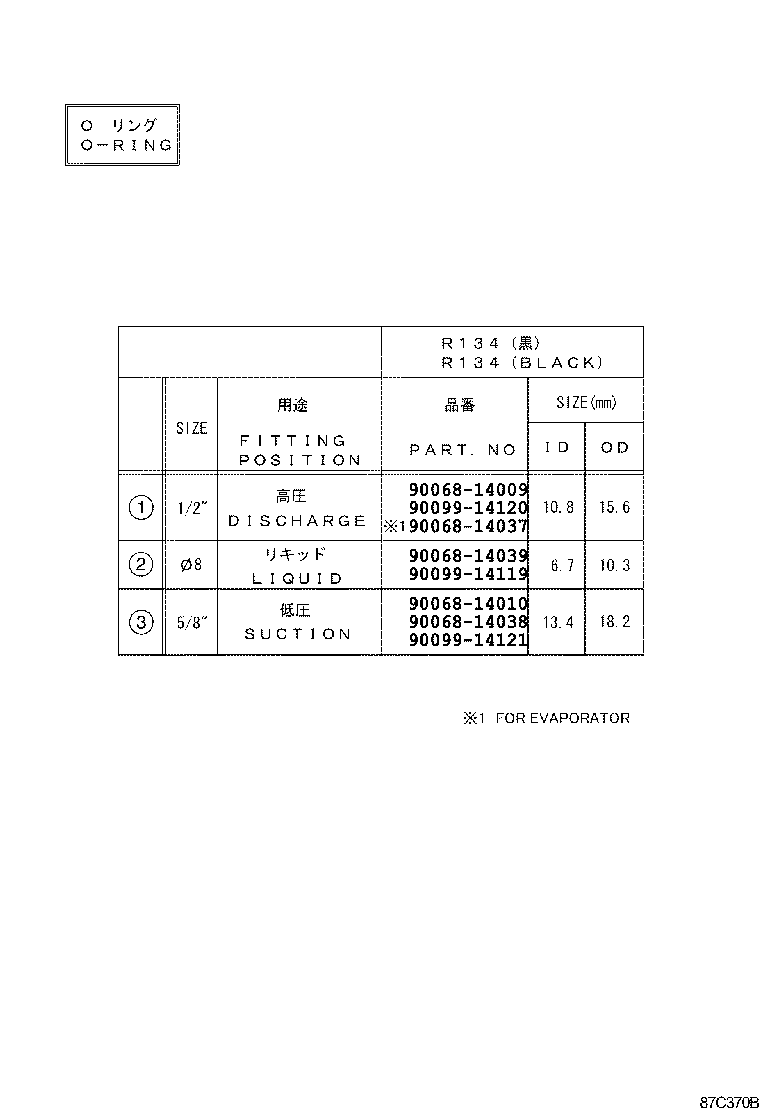

ILLUST NO. 2 OF 2(1107- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14009 | ||||
| 90068-14010 | ||||
| 90068-14037 | ||||
| 90068-14038 | ||||
| 90068-14039 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
