NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

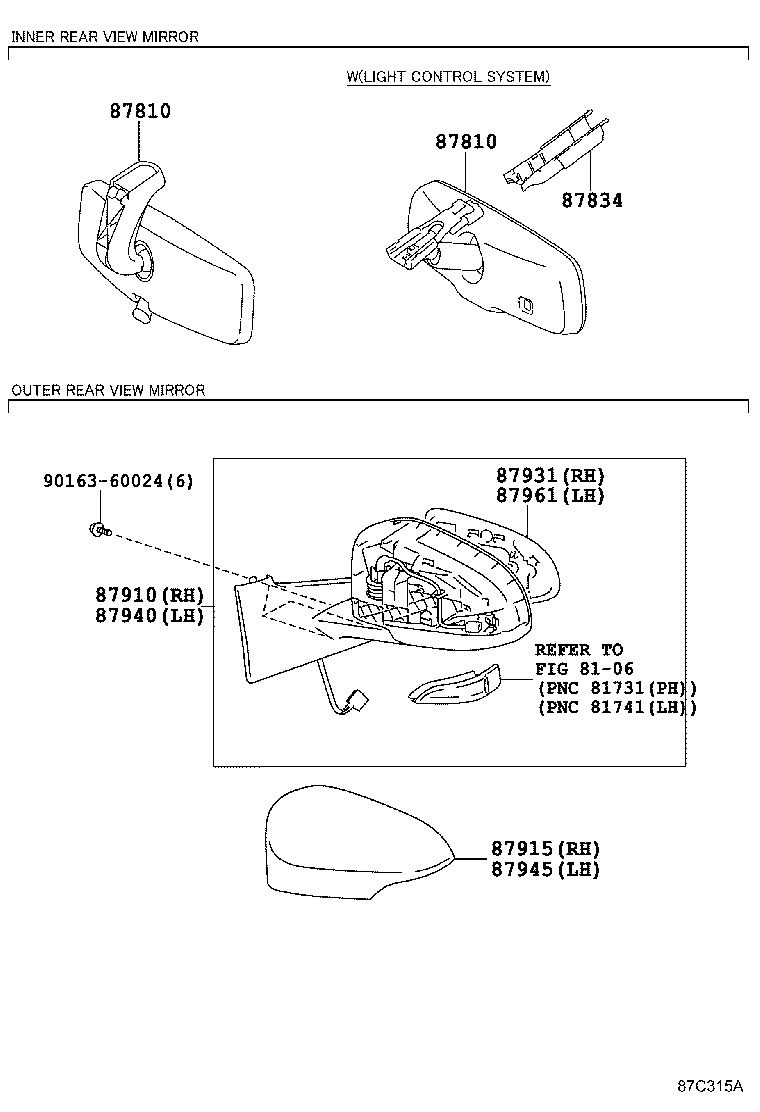

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 87810-0D080 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 87810-0F050 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 87810-0D080 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 87810-0F050 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-33010 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 87818-33010 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-0D600 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 87910-0D590 |
KSP130,NHP130,NLP130,NSP130..LHD NO PAINT REQ. |
1 | ||
| 87910-0D600 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STD) NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0D909 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE PAINT REQ. |
1 | ||
| 87915-0D390 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD PLATED,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 87915-0D390 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD PLATED,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87908-0D590 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 87908-0D600 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 87908-0D601 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 87908-0D601 |
KSP130,NHP130;NLP130,NSP130..LHD..STD;NLP130,NSP130..ACTIV,LOUNG,STYLE OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 87908-0D591 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 87908-0D600 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-0D580 |
KSP130,NHP130,NLP130,NSP130..LHD NO PAINT REQ. |
1 | ||
| 87940-0D590 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STD) NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 87940-0D590 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0D909 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE PAINT REQ. |
1 | ||
| 87945-0D370 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD PLATED,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME |
1 | ||
| 87945-0D370 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD PLATED,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87909-0D590 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 87909-0D581 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 87909-0D580 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 87909-0D591 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 87909-0D591 |
KSP130,NHP130;NLP130,NSP130..LHD..STD;NLP130,NSP130..ACTIV,LOUNG,STYLE OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 87909-0D590 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
