NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )LHD..ACTIV,LOUNG,STYLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101H - CORD SUB-ASSY, ANTENNA | ||||
| 86101-YY070 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) TURKEY SPEC&EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86101-YY070 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86101M - CORD SUB-ASSY, ANTENNA | ||||
| 86705-YY030 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86705-YY030 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) TURKEY SPEC&EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-0D030 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FUJITSU TEN,ID=19008,AUDIO-DISPLAY 8SPEAKER BLUETOOTH |
1 | ||
| 86140-0D010 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) FUJITSU TEN,ID=19006 |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25201 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25201 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE |
2 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-0D140 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86211-0D140 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) TURKEY SPEC&EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-0D140 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86212-0D140 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) TURKEY SPEC&EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-YY133 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86840-YY040 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86840-YY090 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) TURKEY SPEC&EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86840-YY150 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) TURKEY SPEC&EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86840-YY041 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86840-YY132 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86840-YY131 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-YY010 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86842-YY010 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) TURKEY SPEC&EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-52190 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX) |
1 | ||
| Common parts | ||||
| 90153-W0001 | ||||
| 90167-W0007 | ||||

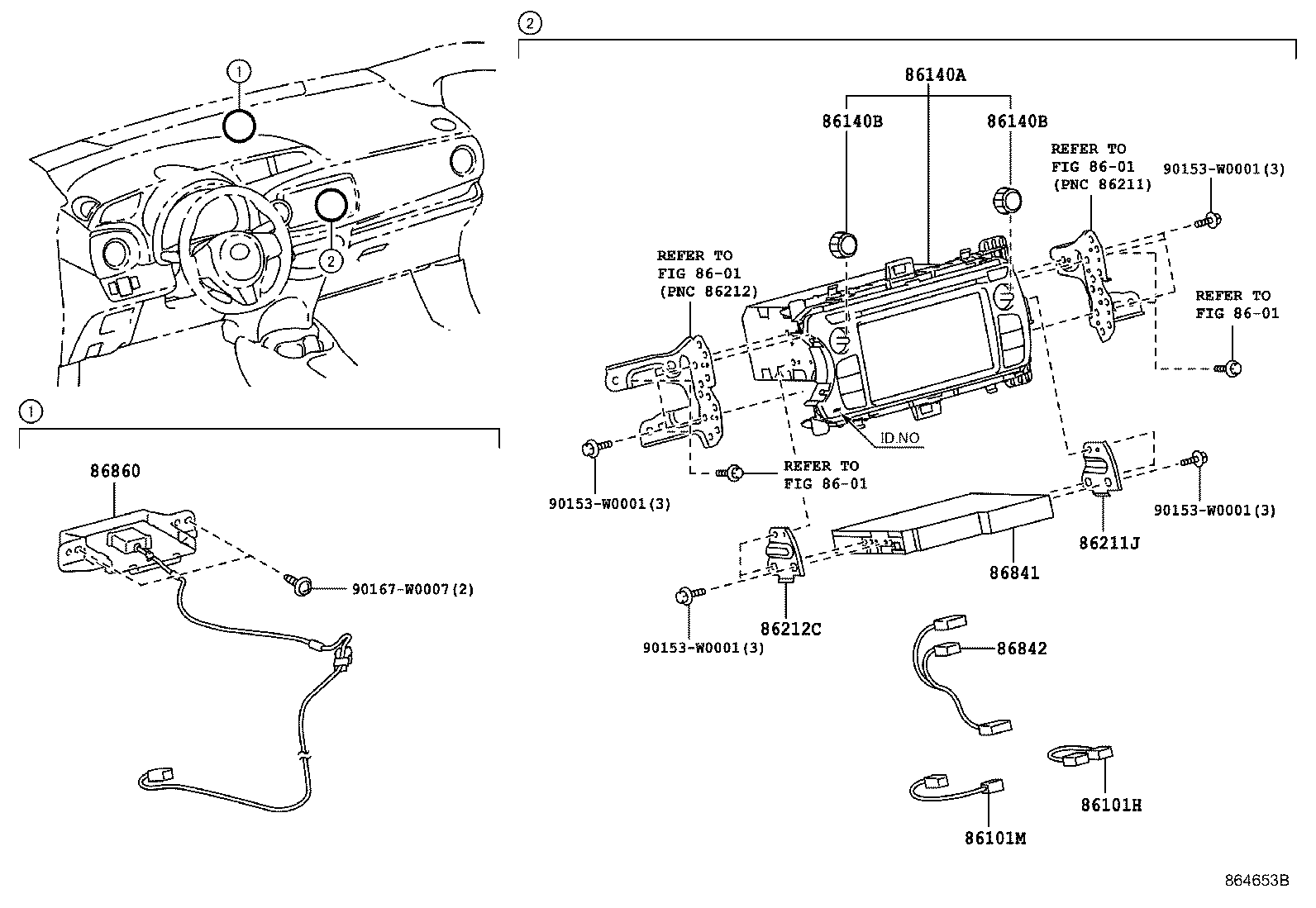

| Linked diagrams | ||||
| 8601 | ||||
