NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )

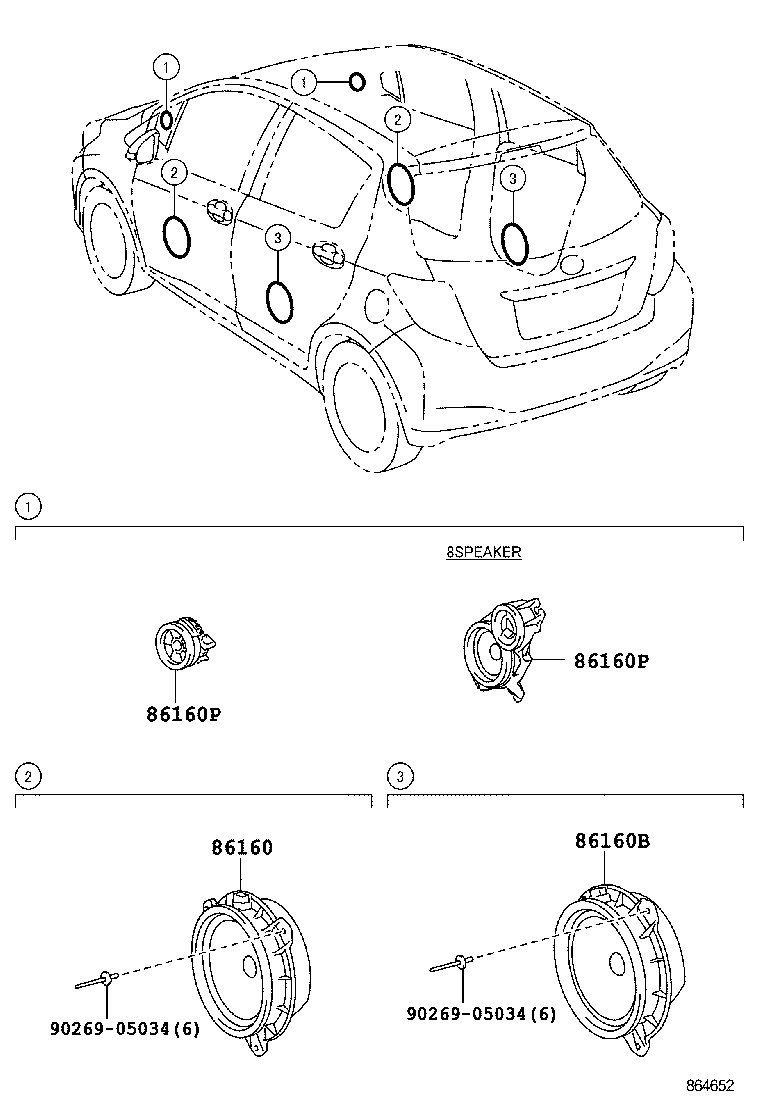

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-0D280 |
NLP130,NSP130..LHD..ACTIV;NLP130,NSP130..LOUNG,STYLE;KSP130..LHD..(ACTIV,LOUNG) AUDIO-DISPLAY 8SPEAKER BLUETOOTH |
2 | ||
| 86160-0D370 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-0D370 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-0D330 |
NLP130,NSP130..LHD..ACTIV;NLP130,NSP130..LOUNG,STYLE;KSP130..LHD..(ACTIV,LOUNG) AUDIO-DISPLAY 8SPEAKER BLUETOOTH |
2 | ||
| 86160-0D350 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-0D330 |
NLP130,NSP130..LHD..ACTIV;NLP130,NSP130..LOUNG,STYLE;KSP130..LHD..(ACTIV,LOUNG) AUDIO-DISPLAY 8SPEAKER BLUETOOTH |
2 | ||
| 86160-0D350 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| Common parts | ||||
| 90269-05034 | ||||
