NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )LHD

Click highlighted areas on diagram

LHD

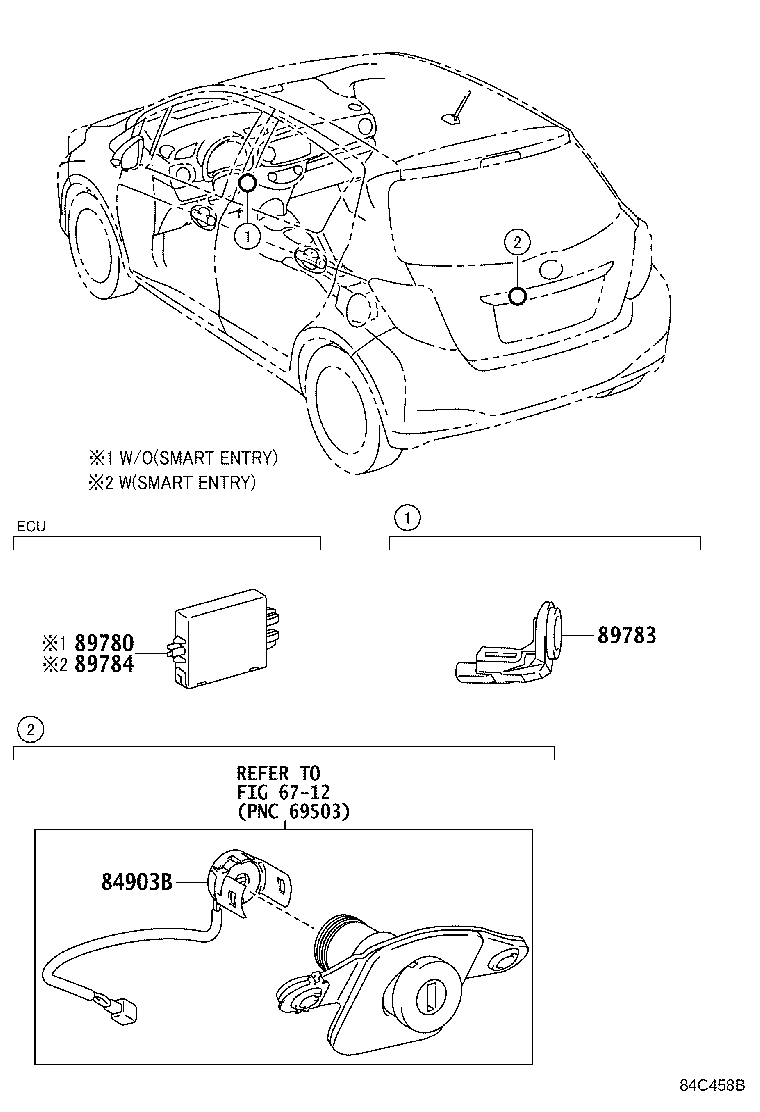

diagram 6712 84903B 89780 89783 89784
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-0D050

NHP130..ACTIV;KSP130,NLP130,NSP130

 1
89780-0D050

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-0D050

NHP130..ACTIV;KSP130,NLP130,NSP130

 1
89783-0D050

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
89783-0D051

NHP130..ACTIV;KSP130,NLP130,NSP130

 1
89783-0D051

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-0D030

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
Linked diagrams
6712
