NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
ILLUST NO. 1 OF 7(1107- )NLP130
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
NLP130 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28010 |
NLP130..LHD..6F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ALGERIA SPEC&EXHAUST EMISSION CONTROL-GENERAL DESTINATION,DENSO |
1 | ||
| 83530-28010 |
NLP130..LHD..6F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NLP130,NSP130..MTM |
1 | ||
| 84210-52050 |
NLP130,NSP130..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NLP130,NSP130..MTM |
1 | ||
| 84210-52050 |
NLP130,NSP130..MTM |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-52030 |
NLP130 |
1 | ||
| 89425-52031 |
NLP130 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-52021 |
NLP130 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-12110 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89437-12110 |
NLP130..6F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA) |
1 | ||
| 89437-12110 |
NLP130 |
1 | ||
| 89437-12110 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-52010 |
NLP130 |
1 | ||
| 89439-52010 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89439-52010 |
NLP130..6F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA) |
1 | ||
| 89439-52010 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12130 |
NLP130 (J) |
1 | ||
| 89467-02080 |
NLP130 (L) |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-12050 |
NLP130 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-52030 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION,TYPE B |
1 | ||
| 89491-52031 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B |
1 | ||
| 89491-52031 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION,TYPE B |
1 | ||
| 89491-52051 |
NLP130 TYPE A |
1 | ||
| 89491-52030 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B |
1 | ||
| 89491-52050 |
NLP130 TYPE A |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-52030 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION,TYPE B |
1 | ||
| 89491-52031 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B |
1 | ||
| 89491-52031 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION,TYPE B |
1 | ||
| 89491-52051 |
NLP130 TYPE A |
1 | ||
| 89491-52030 |
NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B |
1 | ||
| 89491-52050 |
NLP130 TYPE A |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-36005 |
NLP130 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-36005 |
NLP130 |
1 | ||
| Common parts | ||||
| 82715-12Q00 | ||||
| 89434-52050 | ||||
| 90119-W0030 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
ILLUST NO. 2 OF 7(1107- )KSP130,NLP130,NSP130
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-67010 |
1NDTV..NLP130 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52080 |
NLP130 MAIN/GLOW80A,ALT120A |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52150 |
NLP130 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
KSP130,NLP130,NSP130 |
1 | ||
| 85928-52030 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-0D010 |
NLP130 |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0103 | ||||
| 90119-W0115 | ||||
| 90178-W0019 | ||||
| 90179-06178 | ||||
| 91673-80616 | ||||
| 93560-53012 | ||||
ILLUST NO. 3 OF 7(1107- )KSP130,NLP130,NSP130
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
KSP130,NHP130,NLP130,NSP130 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08300 |
KSP130,NHP130,NLP130,NSP130 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
KSP130,NLP130,NSP130 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08296 |
KSP130,NHP130,NLP130,NSP130 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
KSP130,NHP130,NLP130,NSP130 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
KSP130,NHP130,NLP130,NSP130 25A,MINI FUSE |
1 | ||
| 90982-09025 |
KSP130,NHP130,NLP130,NSP130 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
KSP130,NHP130,NLP130,NSP130 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
KSP130,NHP130,NLP130,NSP130 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
KSP130,NHP130,NLP130,NSP130 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
KSP130,NHP130,NLP130,NSP130 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-0D010 |
NSP130..RHD;NSP130..LHD..CVFC;KSP130,NLP130..5F,6F;NSP130..LHD..6F..(LOUNG,STYLE) NO.1 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-0D020 |
NSP130..RHD;NSP130..LHD..CVFC;KSP130,NLP130..5F,6F;NSP130..LHD..6F..(LOUNG,STYLE) NO.2 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-0D030 |
NSP130..RHD;NSP130..LHD..CVFC;KSP130,NLP130..5F,6F;NSP130..LHD..6F..(LOUNG,STYLE) NO.3 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-0D040 |
KSP130,NLP130,NSP130 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52030 |
NLP130 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-52060 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STD) OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 82641-52060 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
2 | ||
| 82641-52060 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 82641-52060 |
NLP130..LHD..(ACTIV,LOUNG,STYLE) COLD SPEC & WITHOUT(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
1 | ||
| 82641-52060 |
NLP130..LHD..(ACTIV,LOUNG,STD) COLD SPEC & WITHOUT(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER |
1 | ||
| 82641-52060 |
KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED |
2 | ||
| 82641-52060 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
KSP130,NLP130,NSP130..5F,6F,CVFC |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
KSP130,NLP130,NSP130..5F,6F,CVFC |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D130 |
NLP130 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0D140 |
KSP130,NLP130,NSP130..5F,6F,CVFC |
1 | ||
| 82662-0D141 |
KSP130,NLP130,NSP130..5F,6F,CVFC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D060 |
KSP130,NLP130,NSP130 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0D070 |
KSP130,NLP130,NSP130 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D070 |
KSP130,NLP130,NSP130 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-0D080 |
KSP130,NLP130,NSP130 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87021 |
KSP130,NLP130,NSP130..LOUNG HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130 |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..LOUNG HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..LOUNG HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..LHD..LOUNG WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..LHD..LOUNG WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..LOUNG HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87031 |
KSP130,NLP130,NSP130 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90080-87020 |
KSP130,NLP130,NSP130 (L) |
1 | ||
| 90987-04004 |
NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90987-04004 |
KSP130,NLP130,NSP130 (J) |
1 | ||
| 90987-04004 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||

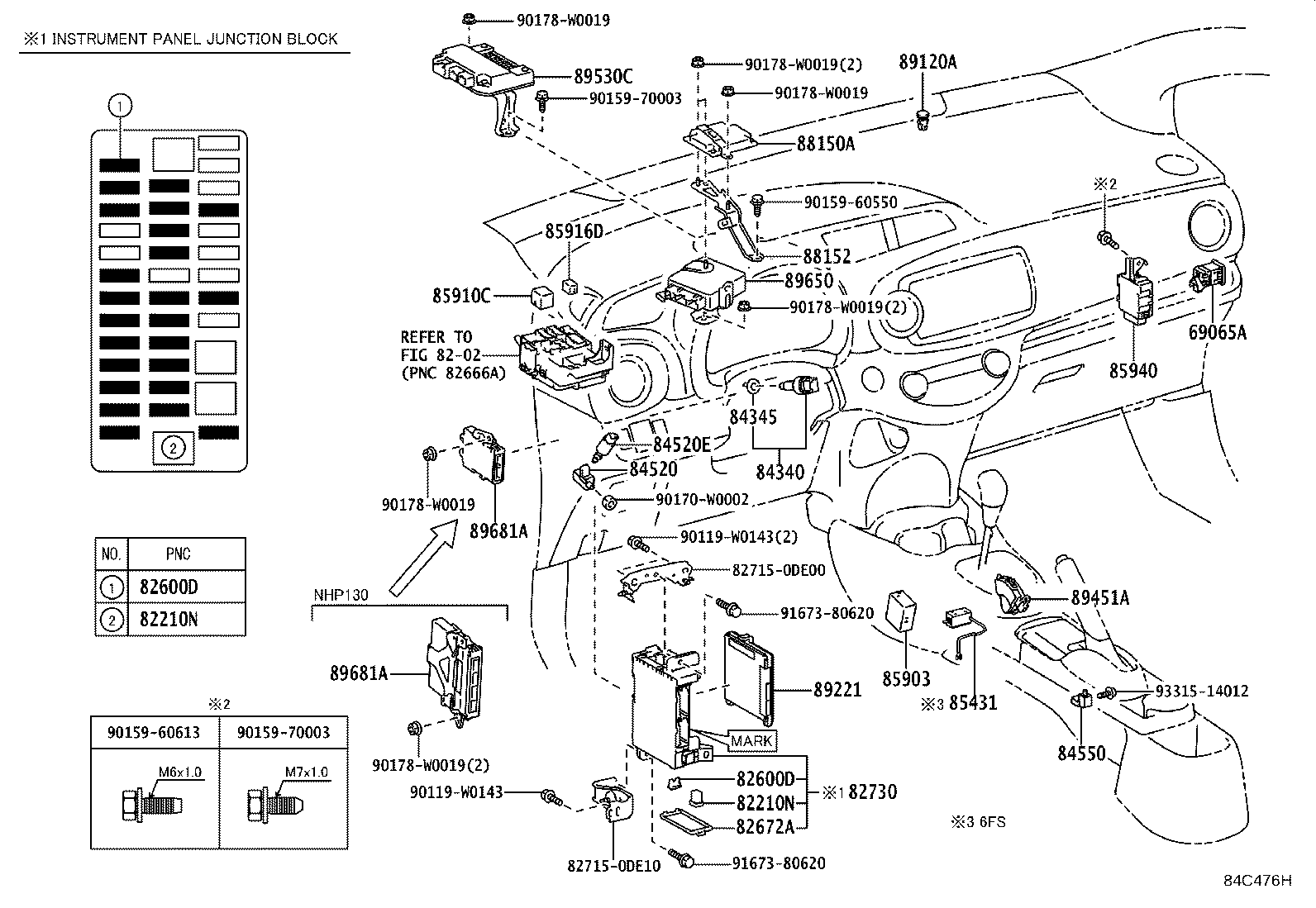

ILLUST NO. 4 OF 7(1107- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-0D020 |
NHP130..ACTIV;KSP130,NLP130,NSP130 |
1 | ||
| 69065-02010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
KSP130,NHP130,NLP130,NSP130 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
KSP130,NHP130,NLP130,NSP130 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KSP130,NHP130,NLP130,NSP130 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KSP130,NHP130,NLP130,NSP130 25A,MINI FUSE |
1 | ||
| 90982-09019 |
KSP130,NHP130,NLP130,NSP130 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
KSP130,NHP130,NLP130,NSP130 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KSP130,NHP130,NLP130,NSP130 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
KSP130,NHP130,NLP130,NSP130 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KSP130,NHP130,NLP130,NSP130 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KSP130,NHP130,NLP130,NSP130 25A,MINI FUSE |
1 | ||
| 90982-09019 |
KSP130,NHP130,NLP130,NSP130 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
KSP130,NHP130,NLP130,NSP130 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KSP130,NHP130,NLP130,NSP130 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
KSP130,NHP130,NLP130,NSP130 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52020 |
KSP130,NLP130,NSP130 |
1 | ||
| 82672-52080 |
KSP130,NLP130,NSP130 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52L70 |
KSP130,NLP130,NSP130..RHD;KSP130,NLP130,NSP130..LHD..(LOUNG,STYLE) MARK=82730-52L70 |
1 | ||
| 82730-52M80 |
KSP130,NLP130,NSP130..LHD..3D..LOUNG FRONT FOG & DRIVING LAMP-WITHOUT,MARK=82730-52M80 |
1 | ||
| 82730-52N60 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT),MARK=82730-52N60 |
1 | ||
| 82730-52N60 |
KSP130,NLP130,NSP130..LHD..3D..LOUNG COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITHOUT,MARK=82730-52N60 |
1 | ||
| 82730-52G40 |
KSP130,NLP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT),MARK=82730-52G40 |
1 | ||
| 82730-52F80 |
KSP130,NLP130,NSP130..RHD;KSP130,NLP130,NSP130..LHD..(LOUNG,STYLE) MARK=82730-52F80 |
1 | ||
| 82730-52M81 |
KSP130,NLP130,NSP130..LHD..3D..LOUNG FRONT FOG & DRIVING LAMP-WITHOUT,MARK=82730-52M81 |
1 | ||
| 82730-52G40 |
KSP130,NLP130,NSP130..LHD..3D..LOUNG COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITHOUT,MARK=82730-52G40 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
KSP130,NLP130,NSP130 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KSP130,NLP130,NSP130..5F,6F |
1 | ||
| 84520E - SWITCH ASSY, CLUTCH START, NO.2 | ||||
| 88280-42010 |
KSP130,NLP130,NSP130..LHD..(5F,6F) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 90987-04010 |
KSP130,NLP130,NSP130..LOUNG FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87021 |
KSP130,NHP130,NLP130,NSP130..LOUNG,STYLE |
1 | ||
| 90080-87021 |
KSP130,NHP130,NLP130,NSP130..LOUNG FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0D030 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 85940-0D010 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-52010 |
NLP130..6F CRUISE CONTROL-WITH |
1 | ||
| 88152 - BRACKET, DRIVING SUPPORT COMPUTER | ||||
| 88152-0D010 |
NLP130..LHD..6F CRUISE CONTROL-WITH |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
NHP130;KSP130,NLP130,NSP130..LOUNG LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0D010 |
KSP130,NLP130,NSP130..LHD..MTM |
1 | ||
| 89220-0D050 |
KSP130,NLP130,NSP130..LHD..MTM COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 89220-0D011 |
KSP130,NLP130,NSP130..LHD..MTM |
1 | ||
| 89220-0D051 |
KSP130,NLP130,NSP130..LHD..MTM COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D260 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D300 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D300 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 89650-0D300 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 89650-0D300 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D290 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG,STD) |
1 | ||
| 89650-0D261 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D291 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG,STD) |
1 | ||
| 89650-0D301 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 89650-0D301 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 89650-0D301 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D301 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D262 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D302 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D292 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG,STD) |
1 | ||
| 89650-0D302 |
NLP130,NSP130..LHD..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 89650-0D302 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 89650-0D302 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 89650-0D293 |
KSP130,NLP130,NSP130..LHD..(5F,6F,CVFC)..(ACTIV,LOUNG,STD) |
1 | ||
| 89650-0D392 |
NLP130..LHD..6F..(ACTIV,LOUNG,STYLE) CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 89650-0D392 |
NLP130..LHD..6F..(ACTIV,LOUNG) CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 89650-0D323 |
NLP130..LHD..6F..(ACTIV,LOUNG,STD) CRUISE CONTROL-WITH |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0D050 |
KSP130,NLP130 |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0D050 |
KSP130,NLP130 |
1 | ||
| Common parts | ||||
| 82715-0DE00 | ||||
| 82715-0DE10 | ||||
| 90119-W0143 | ||||
| 90159-60550 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90170-W0002 | ||||
| 90178-W0019 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 6 OF 7(1107- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NHP130..ACTIV;KSP130,NLP130,NSP130 |
1 | ||
| 84052-71010 |
NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02311 |
KSP130,NLP130,NSP130..LOUNG,STYLE |
1 | ||
| 84140-02341 |
KSP130,NLP130,NSP130..LOUNG FRONT FOG & DRIVING LAMP-WITHOUT&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84140-02331 |
KSP130,NLP130,NSP130..LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84140-02321 |
KSP130,NLP130,NSP130..LOUNG FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 84140-0D300 |
KSP130,NHP130,NLP130,NSP130..LOUNG,STYLE |
1 | ||
| 84140-0D270 |
KSP130,NHP130,NLP130,NSP130..LOUNG FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 84140-0D310 |
KSP130,NHP130,NLP130,NSP130..LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84140-0D320 |
KSP130,NHP130,NLP130,NSP130..LOUNG FRONT FOG & DRIVING LAMP-WITHOUT&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D030C0 |
NSP130..6F..ACTIV;KSP130,NHP130,NLP130..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) BLACK,TRIM1# |
1 | ||
| 84250-0D020C0 |
KSP130,NHP130,NLP130,NSP130..LHD..(LOUNG,STYLE) AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D070 |
KSP130,NSP130;NLP130..LHD..6F VSC-WITHOUT |
1 | ||
| 84307-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-71010 |
NHP130..ACTIV;KSP130,NLP130,NSP130 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D040 |
KSP130,NLP130,NSP130 |
1 | ||
| 84652-0D170 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84652-0D180 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 84652-0D190 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(1107- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D051 |
NLP130 |
1 | ||
| 83320-52261 |
NLP130 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D170 |
KSP130,NSP130..LHD..3D;NLP130..LHD..3D..LOUNG;NLP130..LHD..(ACTIV,STD,STYLE);KSP130,NSP130..LHD..5D..(ACTIV,STD,STYLE) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D170 |
KSP130,NSP130..LHD..3D;NLP130..LHD..3D..LOUNG;NLP130..LHD..(ACTIV,STD,STYLE);KSP130,NSP130..LHD..5D..(ACTIV,STD,STYLE) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840-28030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||

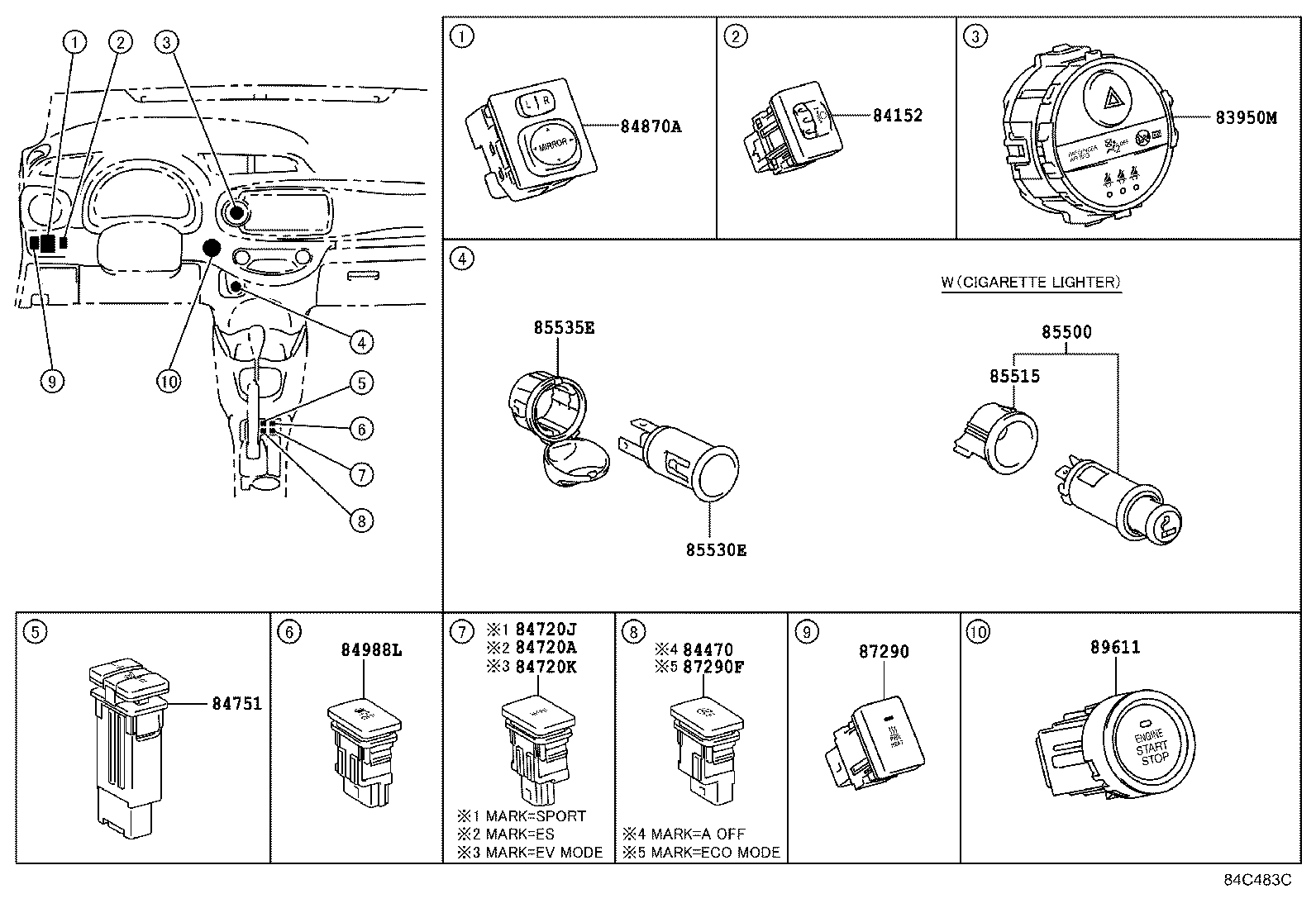

ILLUST NO. 5 OF 7(1107- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0D050 |
KSP130,NLP130,NSP130 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D090 |
KSP130,NLP130,NSP130 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0D040 |
KSP130,NLP130,NSP130..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F010 |
KSP130,NLP130,NSP130 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0D010 |
KSP130,NLP130,NSP130 |
1 | ||
| 84988-0D010 |
KSP130,NLP130,NSP130..5F,6F,CVFC VSC-WITHOUT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09080 |
KSP130,NHP130,NLP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0D010 |
KSP130,NHP130,NLP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-0D020 |
KSP130,NHP130,NLP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85530-0D020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 85535-52040 |
KSP130,NHP130,NLP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-0D050 |
NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0D030 |
KSP130,NLP130,NSP130..LOUNG WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
