NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

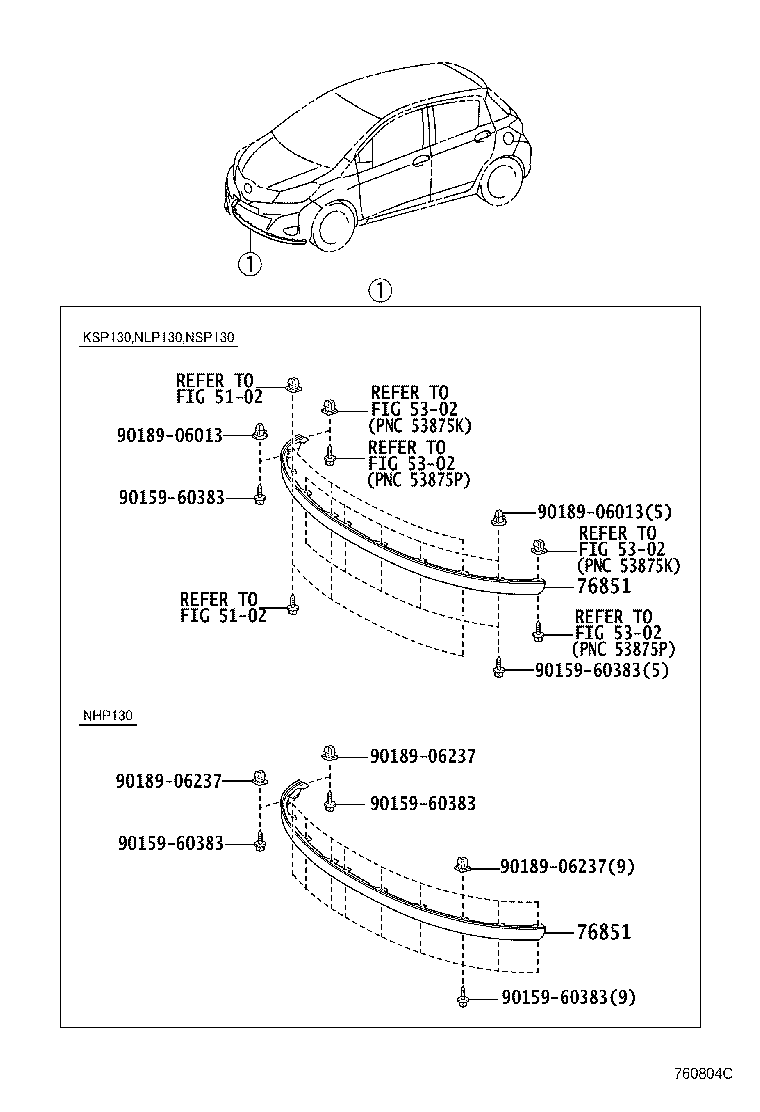

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

FRONT

diagram 5102 5102 5302 5302 5302 5302 76851 76851 9015960383 9015960383 9015960383 9015960383 9015960383 9018906013 9018906013 9018906237 9018906237 9018906237
Part # Description Qty Price
76851 - COVER, FRONT SPOILER
76851-0D050

KSP130,NLP130,NSP130

FRONT SPOILER-WITH

 1
76851 - COVER, FRONT SPOILER
76851-0D050

KSP130,NLP130,NSP130

FRONT SPOILER-WITH

 1
Common parts
90159-60383
90189-06013
90189-06237
Linked diagrams
5102
5302

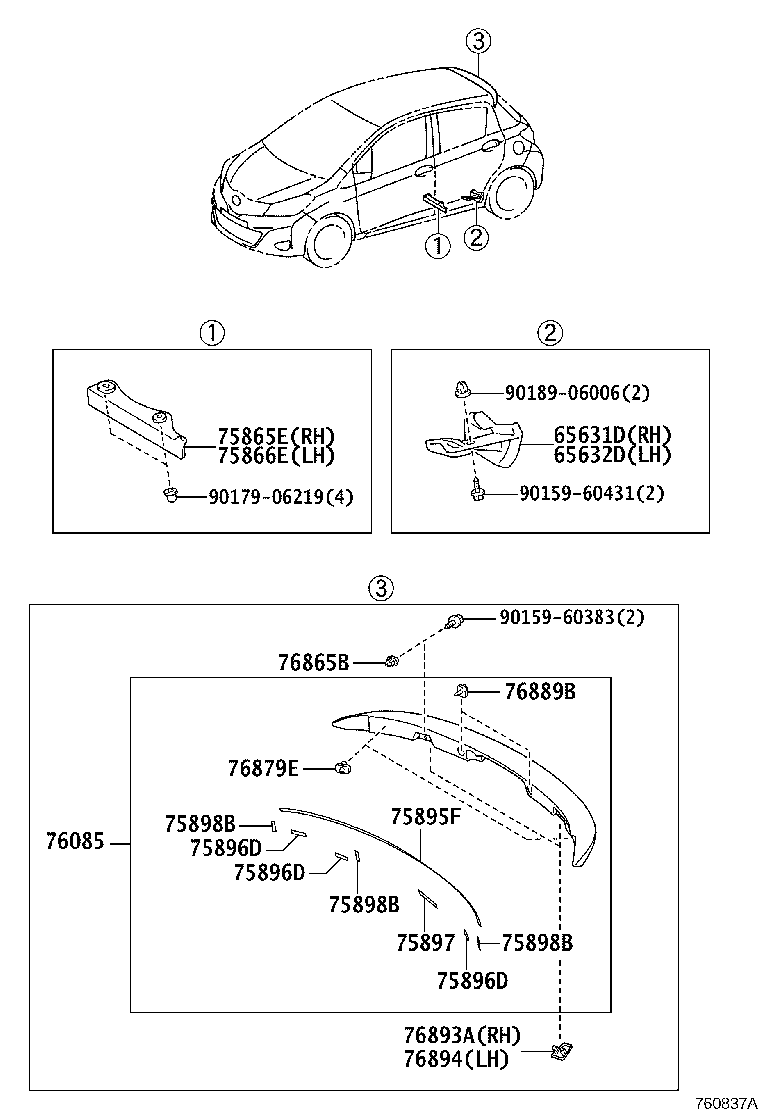

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

SIDE & REAR

diagram 65631D 65632D 75865E 75866E 75895F 75896D 75896D 75896D 75897 75898B 75898B 75898B 76085 76865B 76879E 76889B 76893A 76894 9015960383 9015960431 9017906219 9018906006
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-0D050

KSP130,NHP130,NLP130,NSP130

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-0D050

KSP130,NHP130,NLP130,NSP130

 1
75865E - PROTECTOR, ROCKER PANEL MOULDING, RH
75865-0D021

KSP130,NLP130,NSP130

 1
75865-0D021

KSP130,NLP130,NSP130

AIR SPATS-WITHOUT

 1
75866E - PROTECTOR, ROCKER PANEL MOULDING, LH
75866-0D021

KSP130,NLP130,NSP130

 1
75866-0D021

KSP130,NLP130,NSP130

AIR SPATS-WITHOUT

 1
Common parts
90159-60383
90159-60431
90179-06219
90189-06006
