NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)

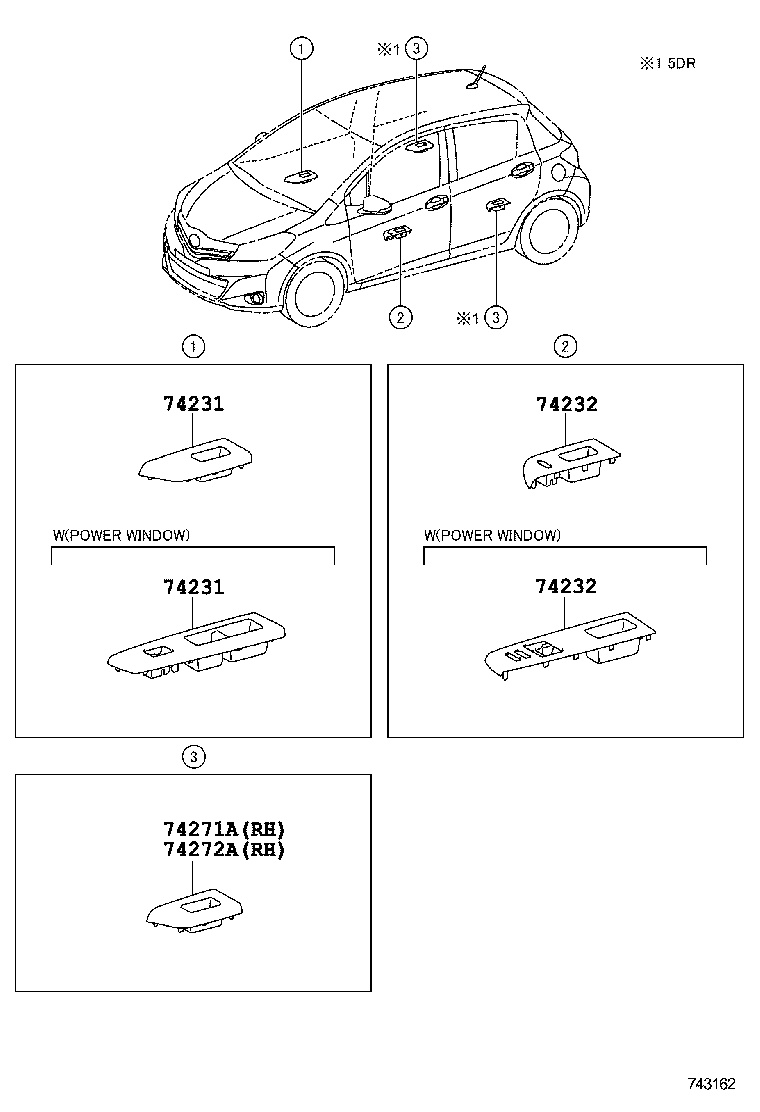

ILLUST NO. 1 OF 2(1107- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D330C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D330C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D330C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D330C0 |
KSP130,NHP130,NLP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D330C0 |
KSP130,NSP130..LHD..3D;NLP130..LHD..3D..LOUNG;NLP130..LHD..(ACTIV,STD,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D330C0 |
KSP130,NSP130..LHD..3D;NLP130..LHD..3D..LOUNG;NLP130..LHD..(ACTIV,STD,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D330C0 |
KSP130,NSP130..LHD..3D;NLP130..LHD..3D..LOUNG;NLP130..LHD..(ACTIV,STD,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D330C0 |
KSP130,NSP130..LHD..3D;NLP130..LHD..3D..LOUNG;NLP130..LHD..(ACTIV,STD,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD,STYLE) BLACK,TRIM1# |
1 | ||

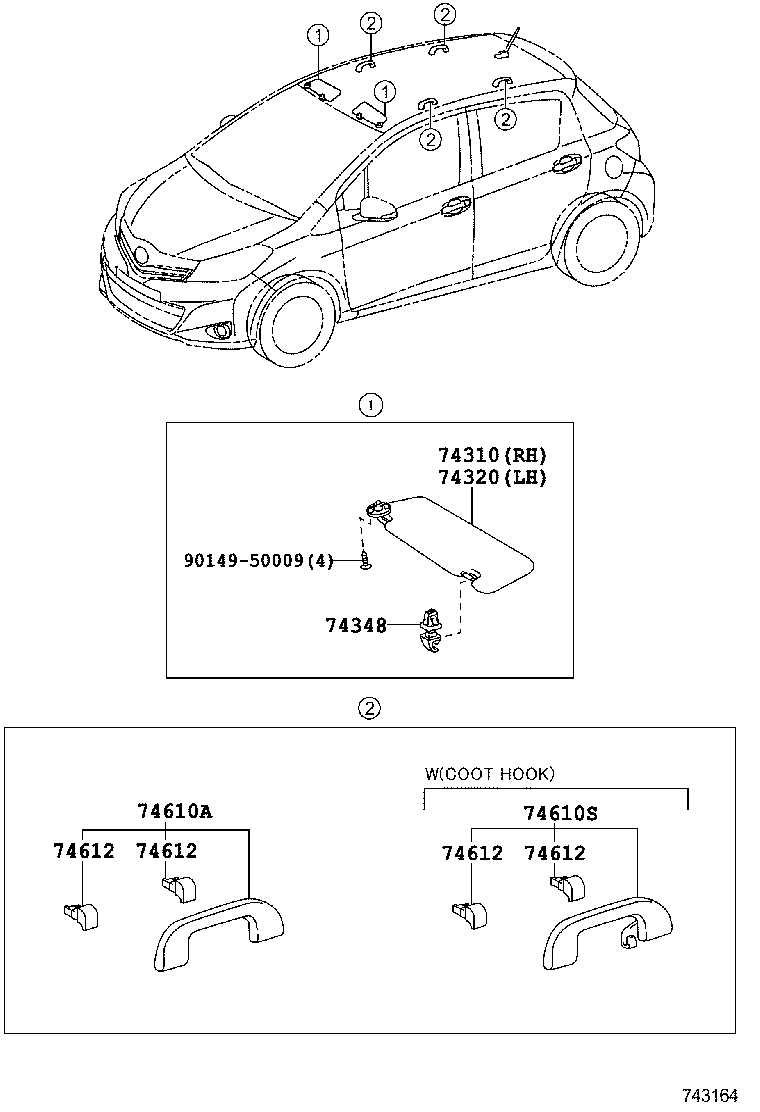

ILLUST NO. 2 OF 2(1107- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0D530B0 |
KSP130,NHP130,NLP130,NSP130..LHD AIR BAG CAUTION LABEL-*HCSSBMA,LT.GRAY,TRIM1# |
1 | ||
| 74310-0D750B0 |
NHP130..LHD..LOUNG;NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) AIR BAG CAUTION LABEL-*LELDFSN&MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74310-0D680B0 |
KSP130,NHP130,NLP130,NSP130..LHD AIR BAG CAUTION LABEL-*PGRBTMA,LT.GRAY,TRIM1# |
1 | ||
| 74310-0D720B0 |
NHP130..LHD..LOUNG;NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74310-0D670B0 |
KSP130,NHP130,NLP130,NSP130..LHD LT.GRAY,TRIM1# |
1 | ||
| 74310-0D690B0 |
KSP130,NHP130,NLP130,NSP130..LHD AIR BAG CAUTION LABEL-*RPCSHUI,LT.GRAY,TRIM1# |
1 | ||
| 74310-0D850B0 |
NHP130..LHD..LOUNG;NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) AIR BAG CAUTION LABEL-*HCSSBMA&MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74310-0D740B0 |
NHP130..LHD..LOUNG;NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) AIR BAG CAUTION LABEL-*RPCSHUI&MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74310-0D730B0 |
NHP130..LHD..LOUNG;NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) AIR BAG CAUTION LABEL-*PGRBTMA&MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74310-0D700B0 |
KSP130,NHP130,NLP130,NSP130..LHD AIR BAG CAUTION LABEL-*LELDFSN,LT.GRAY,TRIM1# |
1 | ||
| 74310-0D721B0 |
NHP130..LHD..LOUNG;NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) MOON ROOF-WITH(PANORAMIC ROOF),LT. GRAY,TRIM1# |
1 | ||
| 74310-0D671B0 |
KSP130,NHP130,NLP130,NSP130..LHD LT. GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0D600B0 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) LT.GRAY,TRIM1# |
1 | ||
| 74320-0D620B0 |
NHP130..LHD..LOUNG;NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-05140B0 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
3 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-05130B0 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| Common parts | ||||
| 90149-50009 | ||||
