NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

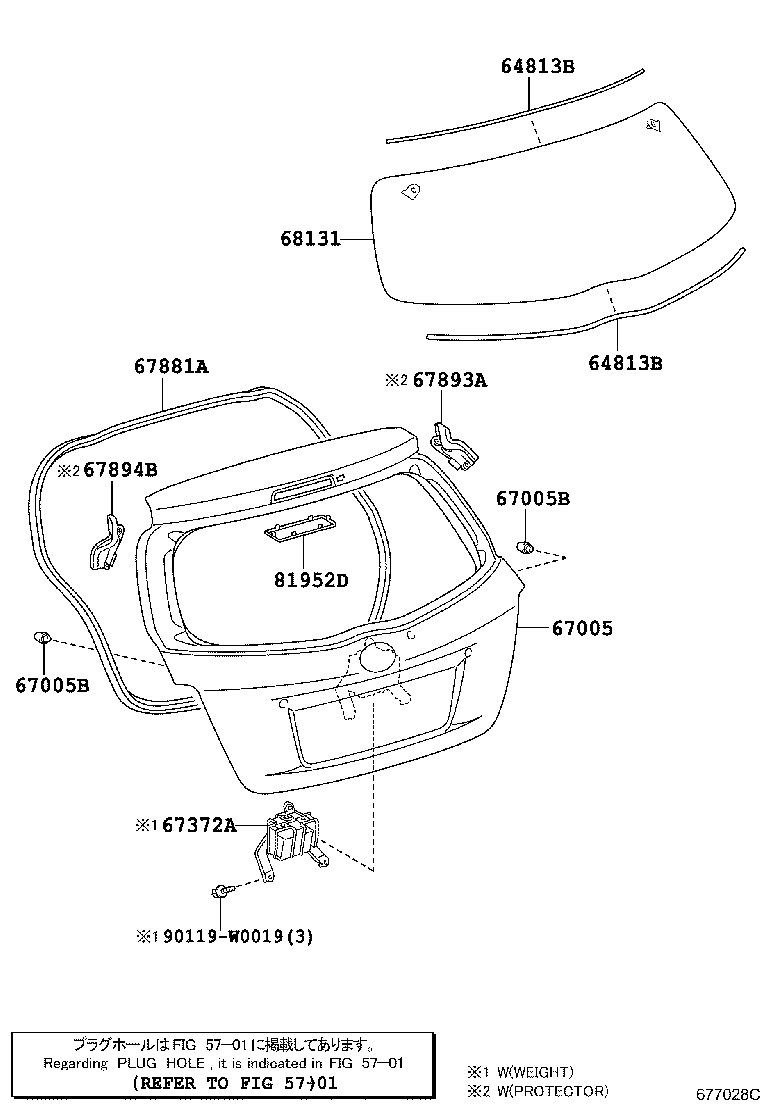

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 64813B 64813B 67005 67005B 67005B 67372A 67881A 67893A 67894B 68131 81952D 90119W0019
Part # Description Qty Price
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

KSP130,NHP130,NLP130,NSP130

 2
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

KSP130,NHP130,NLP130,NSP130

 2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0D111

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD

 1
67005-0D110

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09146

KSP130,NHP130,NLP130,NSP130

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09146

KSP130,NHP130,NLP130,NSP130

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-0D071

KSP130,NHP130,NLP130,NSP130

 1
67881-0D070

KSP130,NHP130,NLP130,NSP130

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-0D030

KSP130,NHP130,NLP130,NSP130

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-0D030

KSP130,NHP130,NLP130,NSP130

 1
68131 - GLASS, BACK DOOR
68105-0D140

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

*EHT,T=3.1,DK.GRAY,BACK GLASS-PRIVACY

 1
68105-0D130

KSP130,NHP130,NLP130,NSP130

*EHT,T=3.1,GREEN

 1
81952D - COVER, REAR LAMP
81952-0D050

KSP130,NHP130,NLP130,NSP130

 1
Common parts
90119-W0019
Linked diagrams
5701

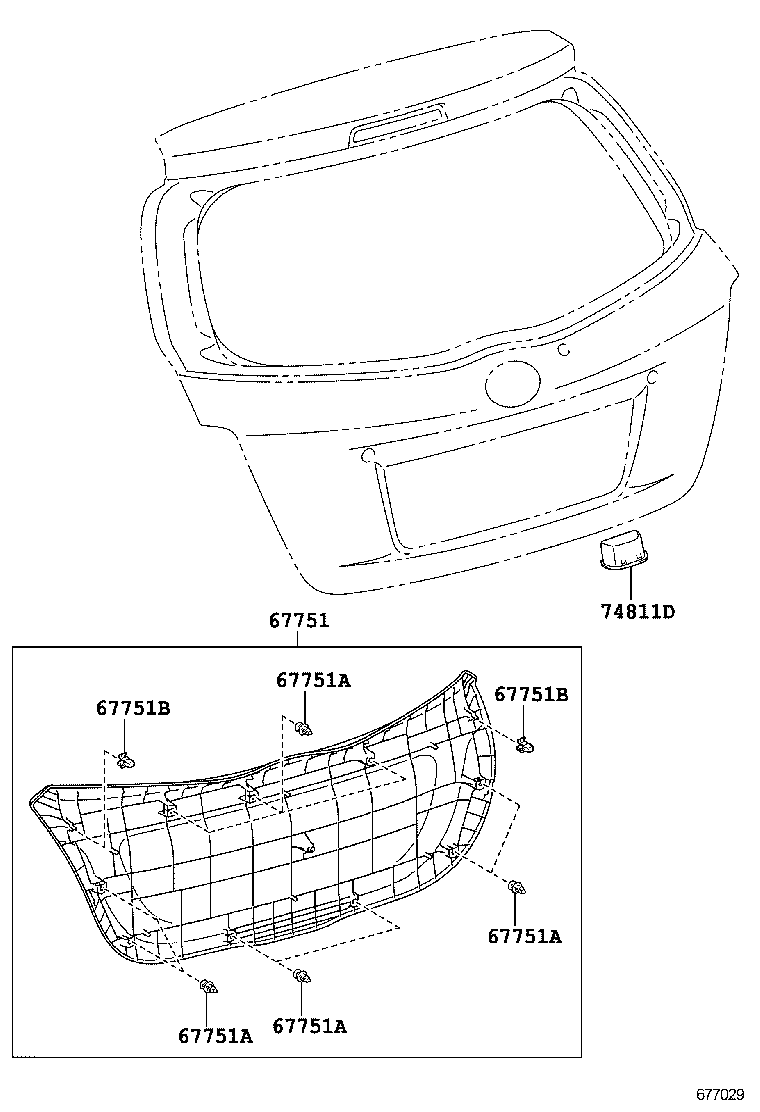

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67751 67751A 67751A 67751A 67751A 67751B 67751B 74811D
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-0D040C0

NLP130;KSP130,NHP130,NSP130..ACTIV,LOUNG,STYLE

BLACK,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130,NHP130,NLP130,NSP130

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130,NHP130,NLP130,NSP130

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130,NHP130,NLP130,NSP130

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130,NHP130,NLP130,NSP130

 9
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-58010

KSP130,NHP130,NLP130,NSP130

 2
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-58010

KSP130,NHP130,NLP130,NSP130

 2
74811D - HANDLE, DOOR PULL
74811-13010C0

KSP130,NHP130,NLP130,NSP130

BLACK,TRIM1#

 1
