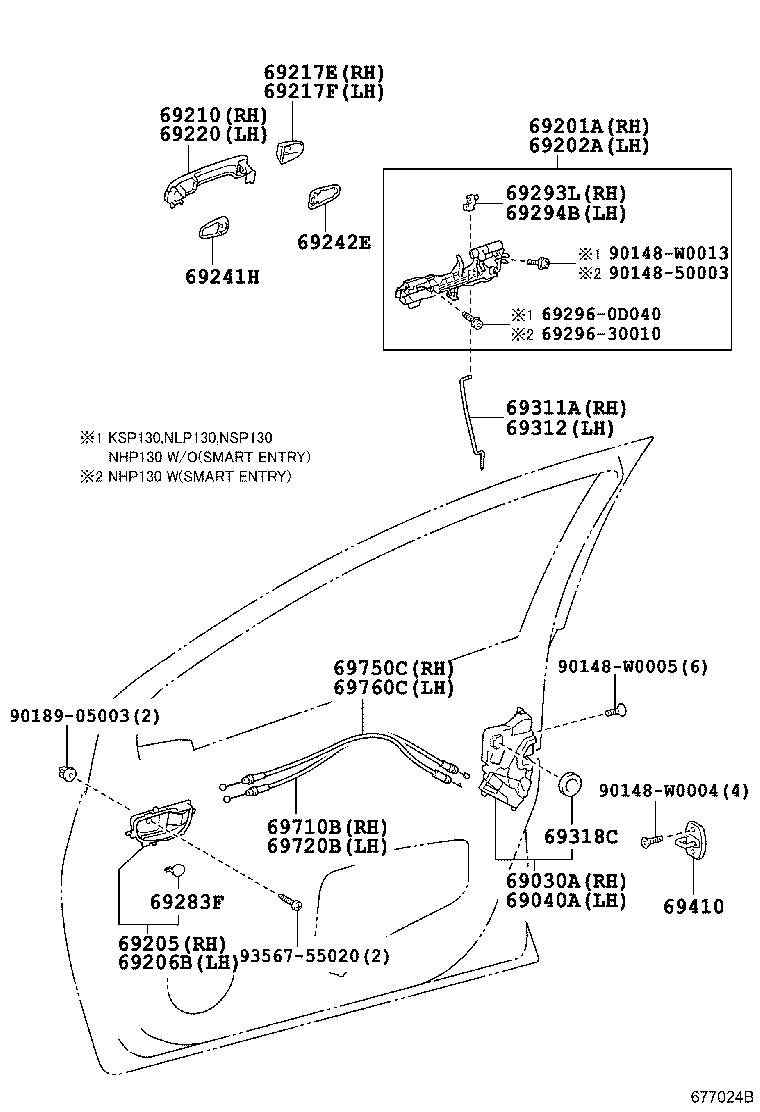

NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-0D320 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-0D140 |
KSP130,NHP130,NLP130,NSP130..LHD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0D050 |
NHP130;NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-0D070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-0D200C0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE BLACK,TRIM1# |
1 | ||
| 69205-0D450C0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE BLACK,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-0D280C0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE BLACK,TRIM1# |
1 | ||
| 69206-0D450C0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE BLACK,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-0D080K0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.VIOLET M.M.,9AF |
1 | ||
| 69210-0D080H0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),TURQUOISE M.M.,788 |
1 | ||
| 69210-0D080D1 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER RED 5,3P0 |
1 | ||
| 69210-0D080B1 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G3 |
1 | ||
| 69210-0D080B2 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),GIN BUCK ME.,1J1 |
1 | ||
| 69210-0D080B0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7 |
1 | ||
| 69210-0D080C0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK MC.,209 |
1 | ||
| 69210-0D080A1 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),WHITE,068 |
1 | ||
| 69210-0D080J0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-0D080D0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),RED M.M.,3N8 |
1 | ||
| 69211-0D904 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE PAINT REQ. |
1 | ||
| 69210-0D080A0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER WHITE 2,040 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-0D912 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) LESS COLOR |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-0D911 |
KSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE) LESS COLOR |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-0D080B2 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),GIN BUCK ME.,1J1 |
1 | ||
| 69210-0D080B0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7 |
1 | ||
| 69210-0D080D1 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER RED 5,3P0 |
1 | ||
| 69210-0D080D0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),RED M.M.,3N8 |
1 | ||
| 69210-0D080K0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.VIOLET M.M.,9AF |
1 | ||
| 69210-0D080H0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),TURQUOISE M.M.,788 |
1 | ||
| 69210-0D080C0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK MC.,209 |
1 | ||
| 69210-0D080J0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-0D080B1 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G3 |
1 | ||
| 69210-0D080A1 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),WHITE,068 |
1 | ||
| 69211-0D904 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE PAINT REQ. |
1 | ||
| 69210-0D080A0 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER WHITE 2,040 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-0D010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0D010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 69283F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL | ||||
| 69283-0D010C2 |
KSP130,NHP130,NLP130,NSP130 EU BLACK,TRIM1# |
2 | ||
| 69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-0D030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0D130 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0D130 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0D030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-0D180 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-0D180 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-0D120 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-0D120 |
KSP130,NLP130,NSP130..3D |
1 | ||
| Common parts | ||||
| 69296-0D040 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-W0004 | ||||
| 90148-W0005 | ||||
| 90148-W0013 | ||||
| 90189-05003 | ||||
| 93567-55020 | ||||
