NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)

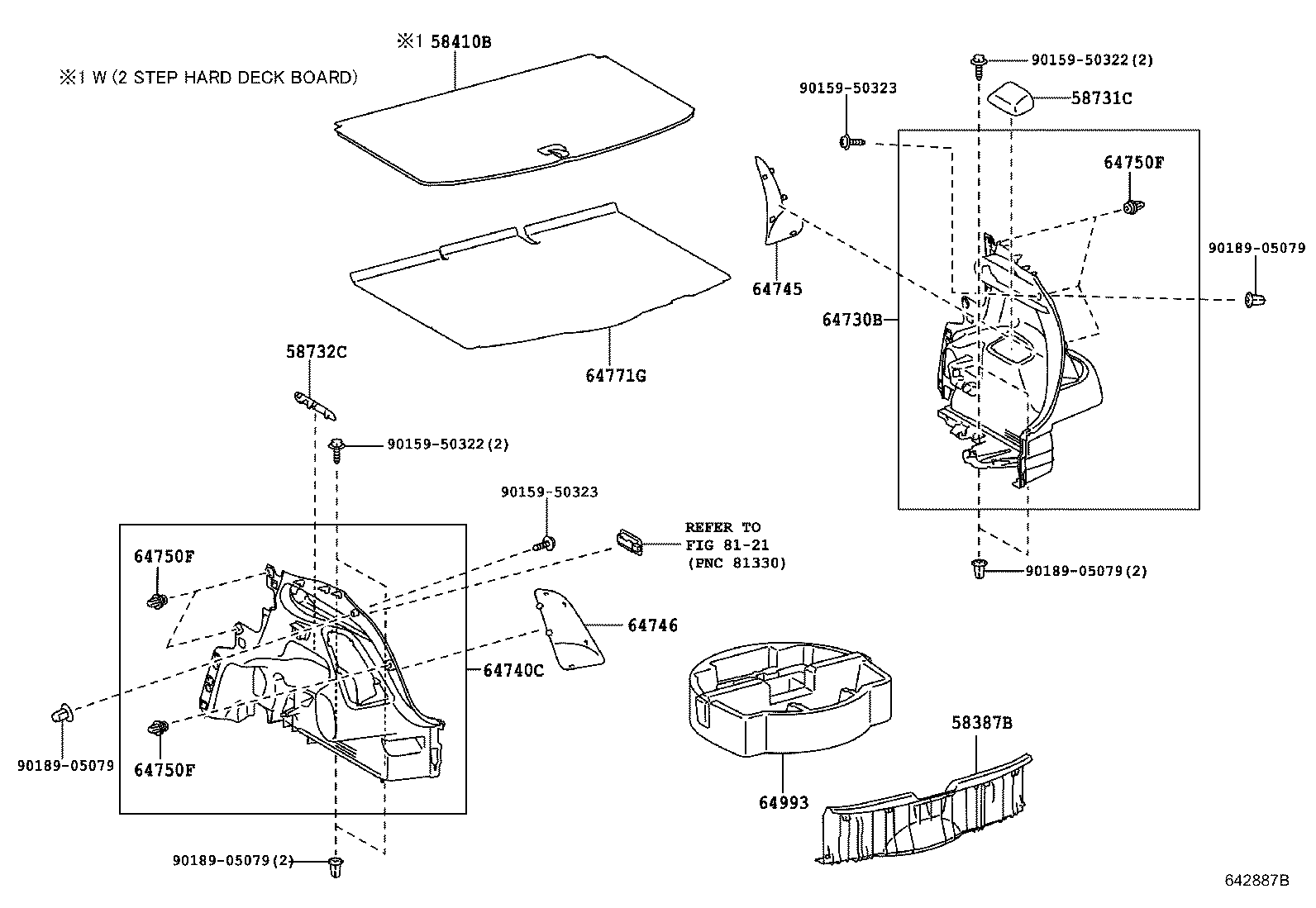

ILLUST NO. 1 OF 2(1107- )3D..ACTIV,LOUNG,STD ; (1301- )3D..STYLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-0D090C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-0D050B0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE DARK GRAY,TRIM1# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0D260C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0D280C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-0D050C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
KSP130,NHP130,NLP130,NSP130 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
KSP130,NHP130,NLP130,NSP130 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
KSP130,NHP130,NLP130,NSP130 |
6 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-0D150B0 |
KSP130,NLP130,NSP130 DARK GRAY,TRIM1# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52120 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STD |
1 | ||
| 64993-0D010 |
NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD |
1 | ||
| 64993-0D030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 64993-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 8121 | ||||

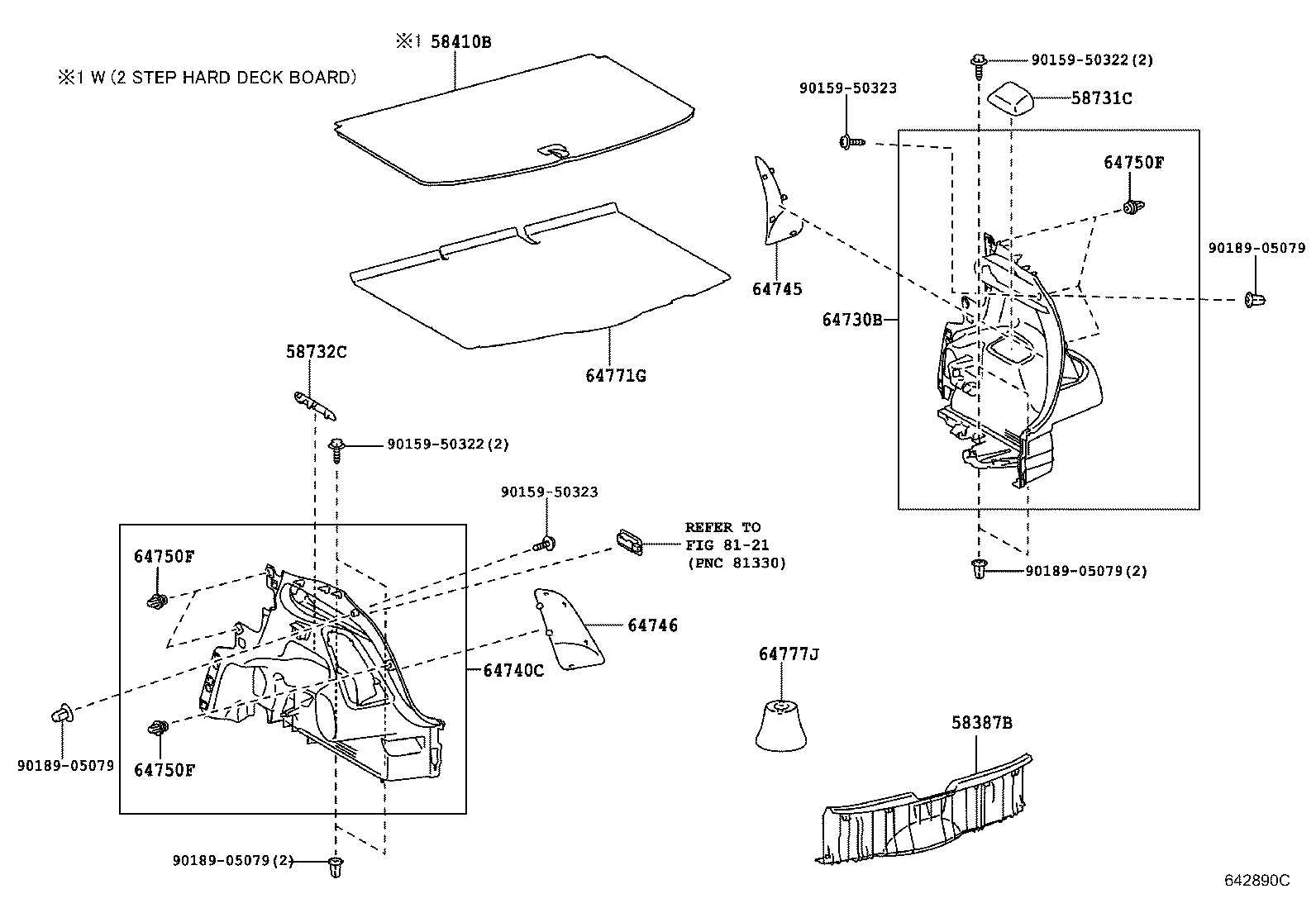

ILLUST NO. 1 OF 2(1107- )3D
SPARE TIRE = TEMPORARY TIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-0D090C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-0D050B0 |
KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE DARK GRAY,TRIM1# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0D260C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0D280C0 |
KSP130,NLP130,NSP130..3D BLACK,TRIM1# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-0D050C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
KSP130,NHP130,NLP130,NSP130 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
KSP130,NHP130,NLP130,NSP130 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
KSP130,NHP130,NLP130,NSP130 |
6 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-0D150B0 |
KSP130,NLP130,NSP130 DARK GRAY,TRIM1# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-0D060 |
NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD SPARE TIRE-TEMPORARY(T125/70D16) |
1 | ||
| 64777-0D060 |
NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG SPARE TIRE-TEMPORARY(T125/70D16)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD) |
1 | ||
| 64777-0D060 |
KSP130;NSP130..RHD..(ACTIV,LOUNG,STD);NLP130..LHD..6F..(ACTIV,LOUNG,STD) SPARE TIRE-TEMPORARY(T125/70D15) |
1 | ||
| 64777-0D060 |
KSP130..ACTIV,LOUNG;NSP130..RHD..(ACTIV,LOUNG);NLP130..LHD..6F..(ACTIV,LOUNG) SPARE TIRE-TEMPORARY(T125/70D15)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD) |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 8121 | ||||

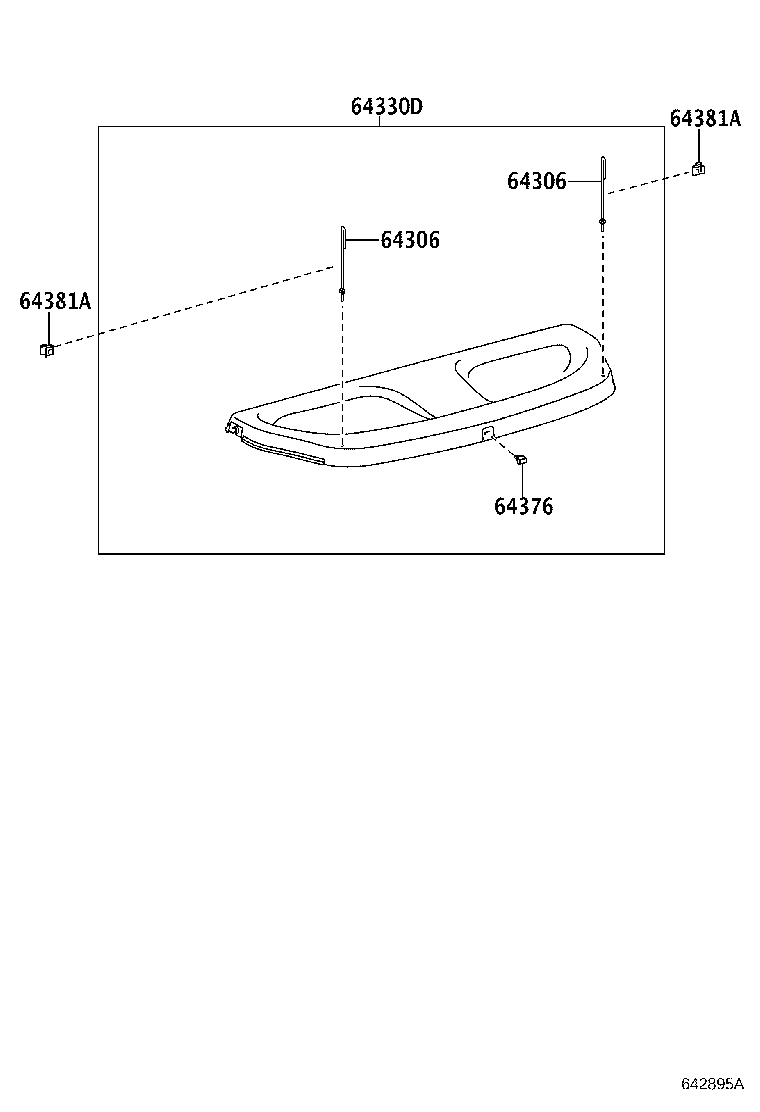

ILLUST NO. 2 OF 2(1107- )
PACKAGE TRAY TRIM PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-0D090 |
KSP130,NHP130,NLP130,NSP130 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64306-0D090 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-0D090 |
KSP130,NHP130,NLP130,NSP130 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64306-0D090 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D240C0 |
KSP130,NHP130,NLP130,NSP130 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,BLACK,TRIM1# |
1 | ||
| 64330-0D240C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-0D010 |
KSP130,NHP130,NLP130,NSP130 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
1 | ||
| 64376-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 64381-52010 |
KSP130,NHP130,NLP130,NSP130 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 64381-52010 |
KSP130,NHP130,NLP130,NSP130 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
