NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )

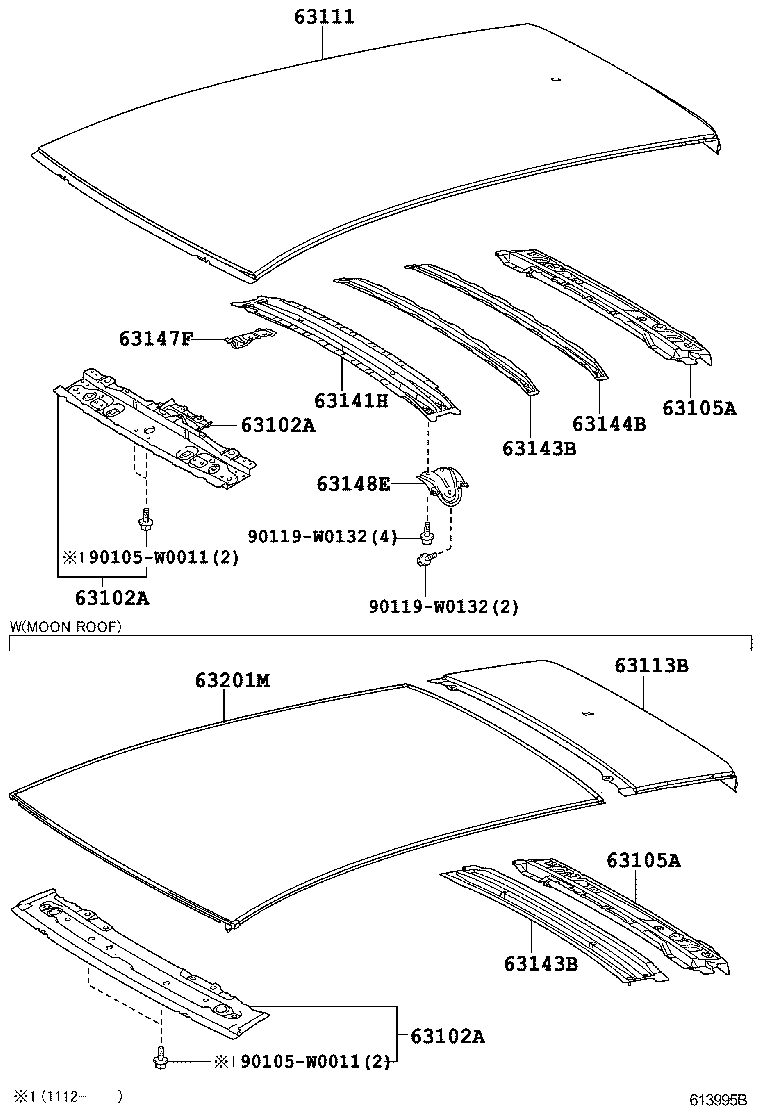

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D020 |
KSP130,NLP130,NSP130 |
1 | ||
| 63102-0D021 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63102-0D071 |
NHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63102-0D070 |
NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D020 |
KSP130,NLP130,NSP130 |
1 | ||
| 63102-0D021 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63102-0D071 |
NHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63102-0D070 |
NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D020 |
KSP130,NLP130,NSP130 |
1 | ||
| 63102-0D021 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63102-0D071 |
NHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63102-0D070 |
NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0D150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63113B - PANEL, ROOF, REAR | ||||
| 63113-0D010 |
NHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0D100 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0D090 |
NHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63143-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0D090 |
NHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 63143-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 63201M - GLASS SUB-ASSY, ROOF WINDOW, NO.1 | ||||
| 63201-0D020 |
NHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| Common parts | ||||
| 90105-W0011 | ||||
| 90119-W0132 | ||||
