Toyota Yaris/hybrid (frp) NLP130 CONSOLE BOX & BRACKET

NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

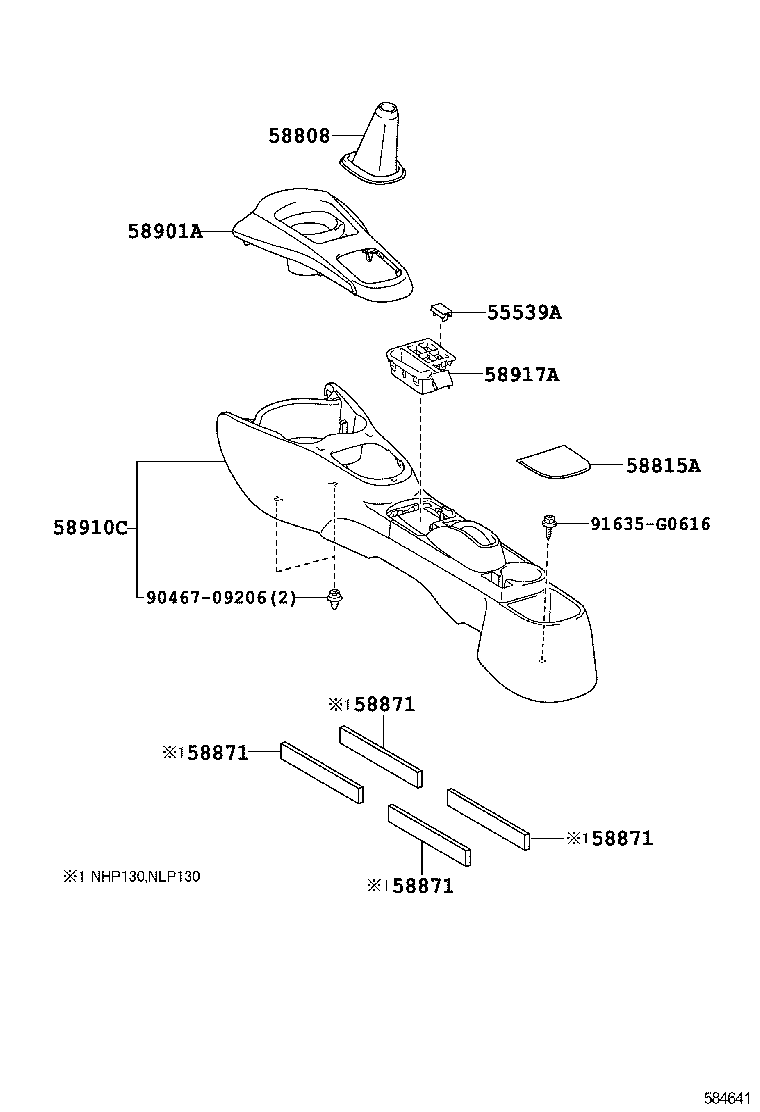

Click highlighted areas on diagram

Part #	Description	Period	Qty
55539A - COVER, SPARE SWITCH HOLE
55539-52070C0	KSP130,NLP130..5F,6F BLACK,TRIM1#	07/2011 - 07/2014	3
55539-52070C0	KSP130;NLP130..LHD..6F VSC-WITHOUT,BLACK,TRIM1#	07/2011 - 07/2014	4
55539-52070C0	KSP130,NLP130..LHD..(5F,6F) VSC-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#	07/2011 - 07/2014	3
55539-52070C0	KSP130,NLP130..LHD..(5F,6F) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#	07/2011 - 07/2014	2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-0D160C0	NLP130,NSP130..6F BLACK,TRIM1#	07/2011 - 07/2014	1
58815A - CARPET, CONSOLE BOX
58815-0D170	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
58837B - BOX, CONSOLE CUP HOLDER
58837-0D010C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
58844 - BEZEL, CONSOLE BOX
58844-0D070	KSP130,NLP130,NSP130..(5F,6F)..(ACTIV,LOUNG,STYLE)	07/2011 - 07/2014	1
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58912A - BOX, REAR CONSOLE
58911-0D170C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
58917A - COVER, CONSOLE BOX, REAR
58917-0D100C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
Common parts
90467-09206
91635-G0616

Click highlighted areas on diagram

TREND PACKAGE

Part #	Description	Period	Qty
55539A - COVER, SPARE SWITCH HOLE
55539-52070C0	KSP130,NLP130..5F,6F BLACK,TRIM1#	07/2011 - 07/2014	3
55539-52070C0	KSP130;NLP130..LHD..6F VSC-WITHOUT,BLACK,TRIM1#	07/2011 - 07/2014	4
55539-52070C0	KSP130,NLP130..LHD..(5F,6F) VSC-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#	07/2011 - 07/2014	3
55539-52070C0	KSP130,NLP130..LHD..(5F,6F) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#	07/2011 - 07/2014	2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-0D160C0	NLP130,NSP130..6F BLACK,TRIM1#	07/2011 - 07/2014	1
58815A - CARPET, CONSOLE BOX
58815-0D170	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58871 - CUSHION, CONSOLE BOX
58871-0D060	NHP130,NLP130	07/2011 - 12/2999	4
58917A - COVER, CONSOLE BOX, REAR
58917-0D100C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
Common parts
90467-09206
91635-G0616
