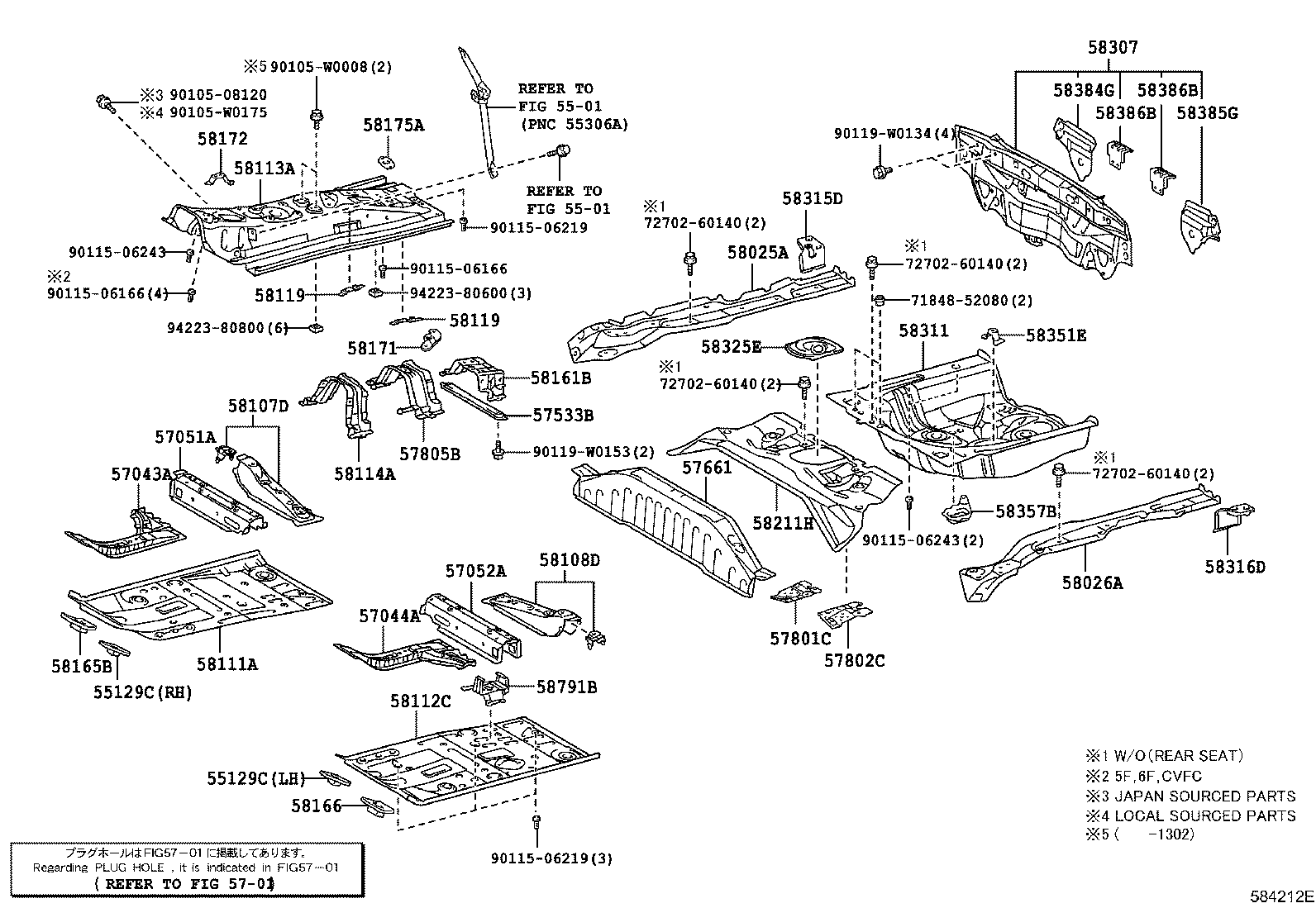

NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )KSP130,NLP130,NSP130..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55139-0D020 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 55129-0D100 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55139-0D020 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 55129-0D100 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-0D012 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 57043-0D011 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-0D042 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 57044-0D041 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-52011 |
KSP130,NLP130,NSP130 |
1 | ||
| 57533-0D020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 57661 - PANEL, REAR FLOOR SIDE, FRONT RH | ||||
| 57661-0D050 |
KSP130,NLP130,NSP130 |
1 | ||
| 57801C - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH | ||||
| 57801-0D060 |
KSP130,NLP130,NSP130 |
1 | ||
| 57802C - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH | ||||
| 57802-0D050 |
KSP130,NLP130,NSP130 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-0D090 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52022 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-52022 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58107-0D051 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-0D031 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58108-0D030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52160 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58111-52270 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52918 |
KSP130,NLP130,NSP130 |
1 | ||
| 58112-52901 |
KSP130,NLP130,NSP130 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52906 |
KSP130,NHP130,NLP130,NSP130..5F,6F,CVFC |
1 | ||
| 58113-52925 |
KSP130,NHP130,NLP130,NSP130..5F,6F,CVFC |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-0D100 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-0D020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-0D020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-0D080 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-0D020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-0D020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-0D070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-0D080 |
KSP130,NLP130,NSP130 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0D140 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52050 |
KSP130,NLP130,NSP130 |
1 | ||
| 58325-0D130 |
KSP130,NLP130,NSP130 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-52070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58357B - BRACKET, ACTUATOR COVER, NO.3 RH | ||||
| 58357-52031 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-0D080 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-0D040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-0D040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-0D110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 71848-52080 | ||||
| 72702-60140 | ||||
| 90105-08120 | ||||
| 90105-W0008 | ||||
| 90105-W0175 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-W0134 | ||||
| 90119-W0153 | ||||
| 94223-80600 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 5701 | ||||
