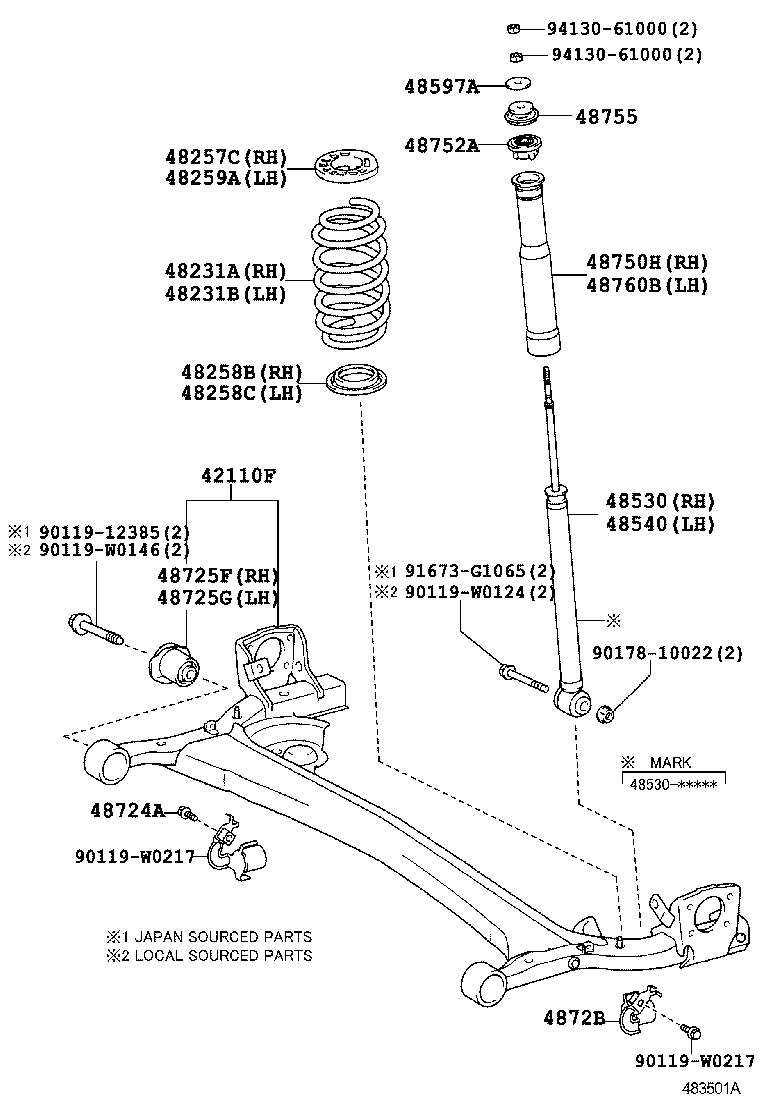

NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-0D340 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 42110-0D310 |
KSP130,NLP130,NSP130 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| 48231-0D380 |
NLP130,NSP130..ACTIV,LOUNG TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48231-0D380 |
NLP130..6FS..LOUNG;NLP130,NSP130..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48231-0D380 |
NLP130..6FS..(LOUNG,STYLE);KSP130,NLP130,NSP130..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48231-0D380 |
KSP130,NLP130,NSP130..ACTIV,LOUNG TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48231-0D390 |
NLP130..LHD..6F..(ACTIV,LOUNG) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGHROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48231-0D390 |
NLP130..LHD..6F..(ACTIV,LOUNG,STYLE) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGHROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48231-0D640 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STD |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-0D380 |
NLP130..6FS..LOUNG;NLP130,NSP130..(6F,CVFC)..(ACTIV,LOUNG) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48231-0D380 |
KSP130,NLP130,NSP130..ACTIV,LOUNG TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48231-0D370 |
KSP130,NLP130,NSP130 |
1 | ||
| 48231-0D380 |
NLP130,NSP130..ACTIV,LOUNG TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48231-0D390 |
NLP130..LHD..6F..(ACTIV,LOUNG,STYLE) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGHROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48231-0D380 |
NLP130..6FS..(LOUNG,STYLE);KSP130,NLP130,NSP130..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48231-0D390 |
NLP130..LHD..6F..(ACTIV,LOUNG) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGHROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48231-0D640 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STD |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-0D450 |
NLP130..6FS..LOUNG;NLP130,NSP130..(6F,CVFC)..(ACTIV,LOUNG) MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48530-0D440 |
NLP130,NSP130..ACTIV,LOUNG MARK 48530-0D440,MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48530-0D450 |
NLP130,NSP130..ACTIV,LOUNG MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48530-0D480 |
NLP130..LHD..6F..(ACTIV,LOUNG,STYLE) MARK 48530-0D480,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGH ROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48530-0D450 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STD MARK 48530-0D450 |
1 | ||
| 48530-0D480 |
NLP130..LHD..6F..(ACTIV,LOUNG) MARK 48530-0D480,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGH ROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48530-0D860 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STD MARK 48530-0D860 |
1 | ||
| 48530-0D850 |
NLP130..6FS..LOUNG;KSP130,NHP130,NLP130,NSP130..(5F,6F,CVFC)..(ACTIV,LOUNG) MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48530-0D850 |
KSP130,NLP130,NSP130..ACTIV,LOUNG MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-0D440 |
NLP130,NSP130..ACTIV,LOUNG MARK 48530-0D440,MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48530-0D450 |
NLP130..6FS..LOUNG;NLP130,NSP130..(6F,CVFC)..(ACTIV,LOUNG) MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48530-0D450 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STD MARK 48530-0D450 |
1 | ||
| 48530-0D480 |
NLP130..LHD..6F..(ACTIV,LOUNG,STYLE) MARK 48530-0D480,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGH ROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48530-0D480 |
NLP130..LHD..6F..(ACTIV,LOUNG) MARK 48530-0D480,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ROUGH ROAD AREA SPEC-A AREA SPEC(WITH HEIGHT UP)&TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48530-0D450 |
NLP130,NSP130..ACTIV,LOUNG MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 48530-0D860 |
KSP130,NLP130,NSP130..ACTIV,LOUNG,STD MARK 48530-0D860 |
1 | ||
| 48530-0D850 |
NLP130..6FS..LOUNG;KSP130,NHP130,NLP130,NSP130..(5F,6F,CVFC)..(ACTIV,LOUNG) MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 48530-0D850 |
KSP130,NLP130,NSP130..ACTIV,LOUNG MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-0D110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-0D110 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 48752A - STOPPER, REAR SUSPENSION SUPPORT | ||||
| 48752-0D010 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-0D070 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-0D050 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90119-12385 | ||||
| 90119-W0124 | ||||
| 90119-W0146 | ||||
| 90119-W0217 | ||||
| 90178-10022 | ||||
| 91673-G1065 | ||||
| 94130-61000 | ||||
