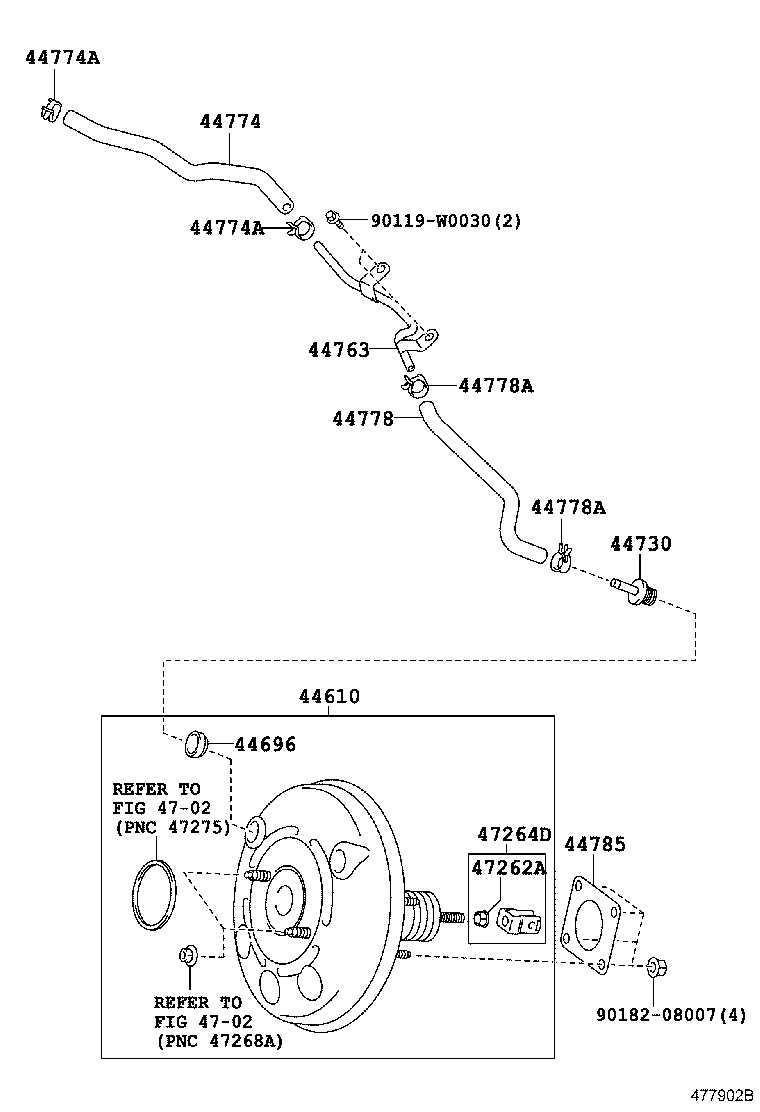

Toyota Yaris/hybrid (frp) NLP130 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-09830	NLP130..LHD..6F TURKEY SPEC&VSC-WITHOUT	07/2011 - 09/2011	1
44610-09830	NLP130..LHD..6F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT	07/2011 - 09/2011	1
44610-09830	NLP130..LHD..6F VSC-WITHOUT	09/2011 - 12/2999	1
44610-09850	KSP130,NLP130..LHD	07/2011 - 12/2999	1
44696 - GROMMET, CHECK VALVE
44692-0D020	KSP130,NLP130	07/2011 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-0D010	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
44763 - TUBE, BOOSTER VACUUM
44763-52140	NLP130..LHD	07/2011 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-52140	NLP130..LHD	07/2011 - 12/2999	1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008	NLP130	07/2011 - 12/2999	2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008	NLP130	07/2011 - 12/2999	2
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-52150	NLP130..LHD	07/2011 - 12/2999	1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90466-W0008	NLP130	07/2011 - 12/2999	2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90466-W0008	NLP130	07/2011 - 12/2999	2
44785 - GASKET, BRAKE BOOSTER
44785-16020	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-05010	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-09010	KSP130,NLP130,NSP130..LHD	07/2011 - 07/2014	1
Common parts
90119-W0030
90182-08007
Linked diagrams
4702

NLP130L-CGFGXW (2011)
