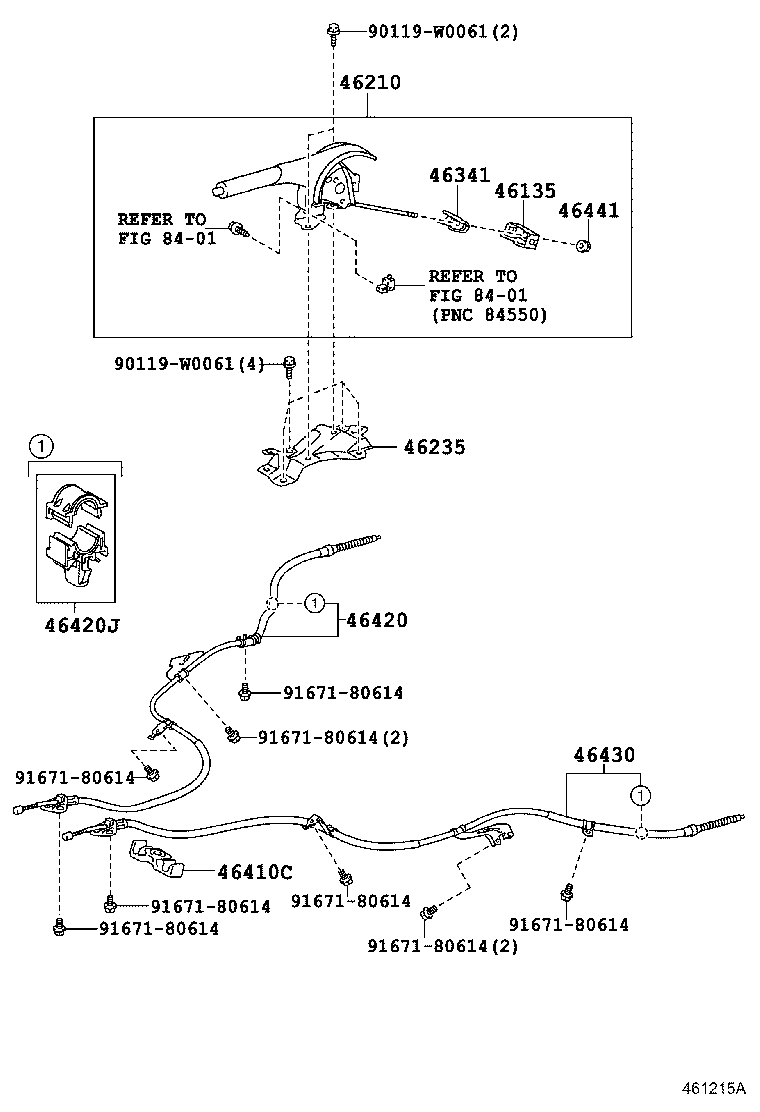

Toyota Yaris/hybrid (frp) NLP130 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-0D020	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
46210 - LEVER ASSY, PARKING BRAKE
46210-0D250C0	KSP130,NLP130,NSP130..LOUNG BLACK,TRIM1#	07/2011 - 07/2014	1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D010	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D210	KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN)	07/2011 - 12/2999	1
46420-0D200	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D210	KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN)	07/2011 - 12/2999	1
46430-0D200	KSP130,NLP130,NSP130	07/2011 - 12/2999	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
Common parts
90119-W0061
91671-80614
Linked diagrams
8401

NLP130L-CGFGXW (2011)
