NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )LHD

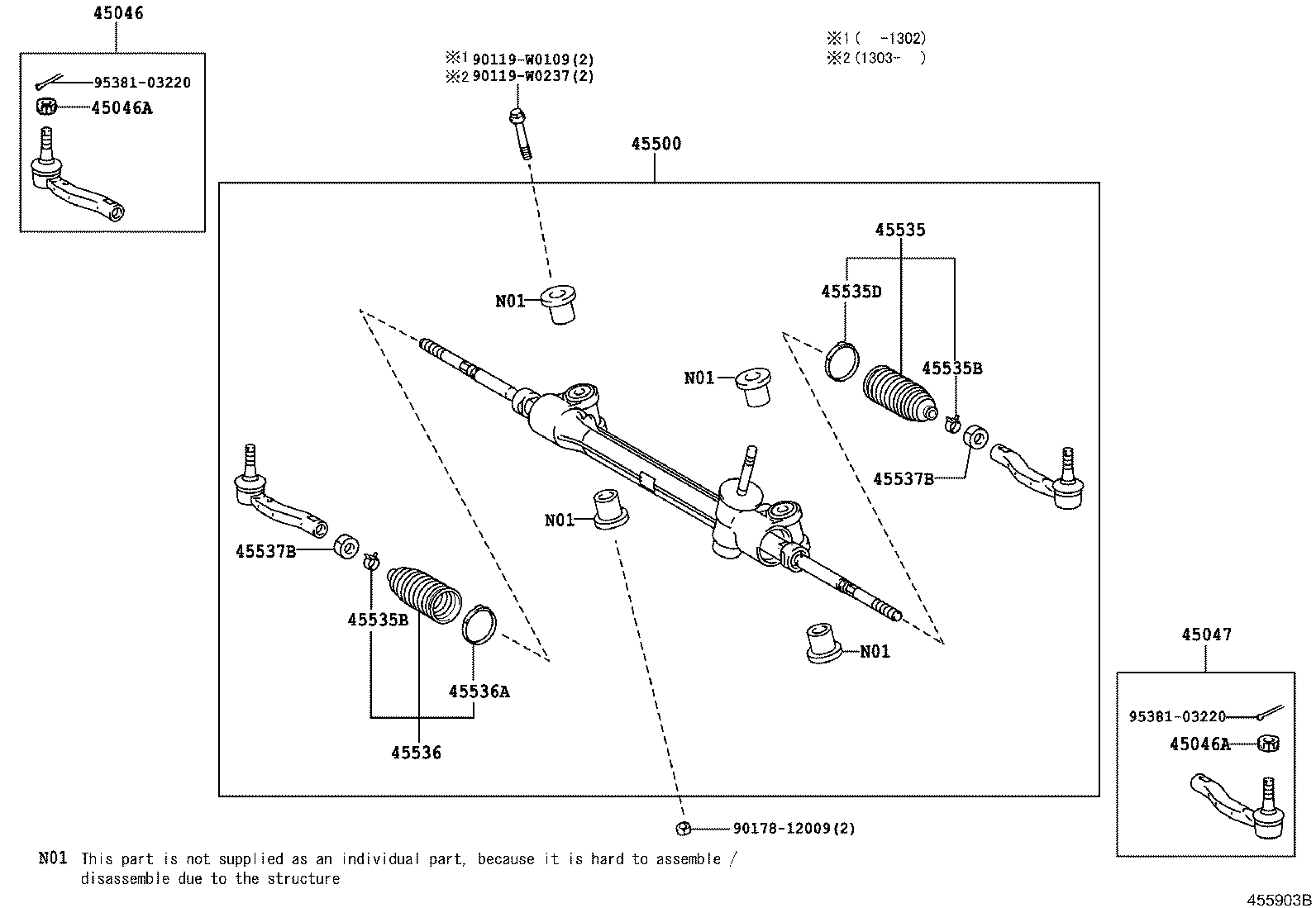

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45500 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 90119W0109 90119W0237 9017812009 9538103220 9538103220
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09700

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM, TREND PACKAGE

 1
45046-09480

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KSP130,NHP130,NLP130,NSP130

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KSP130,NHP130,NLP130,NSP130

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09700

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM, TREND PACKAGE

 1
45047-09220

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD

 1
45500 - LINK ASSY, STEERING
45500-0D270

NHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STD)

 1
45500-0D290

KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG)

TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)

 1
45500-0D290

NLP130..LHD..6F..ACTIV;NLP130..LHD..(LOUNG,STYLE);KSP130,NHP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)

TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM

 1
45500-0D280

NHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG)

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM, TREND PACKAGE

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09240

KSP130,NHP130,NLP130,NSP130

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D050

KSP130,NHP130,NLP130,NSP130

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D050

KSP130,NHP130,NLP130,NSP130

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0D040

KSP130,NHP130,NLP130,NSP130

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09240

KSP130,NHP130,NLP130,NSP130

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D040

KSP130,NHP130,NLP130,NSP130

 1
45537B - NUT, RACK END LOCK
90179-14019

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD

 2
90178-15003

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM, TREND PACKAGE

 2
45537B - NUT, RACK END LOCK
90179-14019

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD

 2
90178-15003

NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM, TREND PACKAGE

 2
Common parts
90119-W0109
90119-W0237
90178-12009
95381-03220
