NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )6F
EC62,EC65

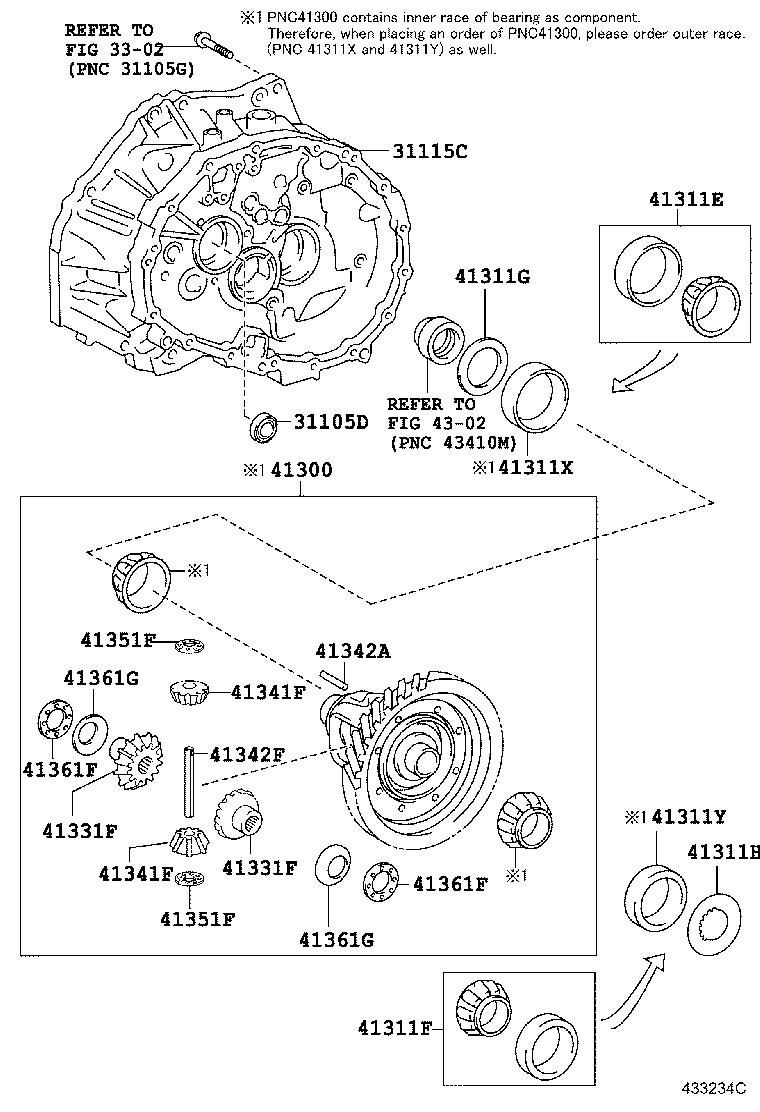

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
NLP130,NSP130..6F *202,*206 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-0D120 |
NLP130..6F *202 |
1 | ||
| 31115-12170 |
NLP130..6F *206 |
1 | ||
| 31115-0D121 |
NLP130..6F *202 |
1 | ||
| 31115-12171 |
NLP130..6F *206 |
1 | ||
| 41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR | ||||
| 41300-0D030 |
NLP130..6F *202 |
1 | ||
| 41300-52100 |
NLP130..6F *206 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40129 |
NLP130,NSP130..6F *206 |
1 | ||
| 90080-36143 |
NLP130,NSP130..6F *202 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42009 |
NLP130,NSP130..6F *206 |
1 | ||
| 90366-W0013 |
NLP130,NSP130..6F *202 |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
NLP130,NSP130..6F T=2.1,*202,*206 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-44040 |
NLP130,NSP130..6F T=2.125, MARK 11,*202,*206 |
1 | ||
| 90564-44039 |
NLP130,NSP130..6F T=2.100, MARK 10,*202,*206 |
1 | ||
| 90564-44042 |
NLP130,NSP130..6F T=2.175, MARK 13,*202,*206 |
1 | ||
| 90564-44041 |
NLP130,NSP130..6F T=2.150, MARK 12,*202,*206 |
1 | ||
| 90564-44045 |
NLP130,NSP130..6F T=2.250, MARK 16,*202,*206 |
1 | ||
| 90564-44048 |
NLP130,NSP130..6F T=2.325, MARK 19,*202,*206 |
1 | ||
| 90564-44044 |
NLP130,NSP130..6F T=2.225, MARK 15,*202,*206 |
1 | ||
| 90564-44051 |
NLP130,NSP130..6F T=2.400, MARK 22,*202,*206 |
1 | ||
| 90564-44052 |
NLP130,NSP130..6F T=2.425, MARK 23,*202,*206 |
1 | ||
| 90564-44046 |
NLP130,NSP130..6F T=2.275, MARK 17,*202,*206 |
1 | ||
| 90564-44049 |
NLP130,NSP130..6F T=2.350, MARK 20,*202,*206 |
1 | ||
| 90564-44055 |
NLP130,NSP130..6F T=2.500, MARK 26,*202,*206 |
1 | ||
| 90564-44050 |
NLP130,NSP130..6F T=2.375, MARK 21,*202,*206 |
1 | ||
| 90564-44056 |
NLP130,NSP130..6F T=2.525, MARK 27,*202,*206 |
1 | ||
| 90564-44047 |
NLP130,NSP130..6F T=2.300, MARK 18,*202,*206 |
1 | ||
| 90564-44054 |
NLP130,NSP130..6F T=2.475, MARK 25,*202,*206 |
1 | ||
| 90564-44043 |
NLP130,NSP130..6F T=2.200, MARK 14,*202,*206 |
1 | ||
| 90564-44053 |
NLP130,NSP130..6F T=2.450, MARK 24,*202,*206 |
1 | ||
| 90564-44057 |
NLP130,NSP130..6F T=2.550, MARK 28,*202,*206 |
1 | ||
| 90564-44061 |
NLP130,NSP130..6F T=2.650, MARK 32,*202,*206 |
1 | ||
| 90564-44062 |
NLP130,NSP130..6F T=2.675, MARK 33,*202,*206 |
1 | ||
| 90564-44063 |
NLP130,NSP130..6F T=2.700, MARK 34,*202,*206 |
1 | ||
| 90564-44058 |
NLP130,NSP130..6F T=2.575, MARK 29,*202,*206 |
1 | ||
| 90564-44060 |
NLP130,NSP130..6F T=2.625, MARK 31,*202,*206 |
1 | ||
| 90564-44059 |
NLP130,NSP130..6F T=2.600, MARK 30,*202,*206 |
1 | ||
| 90564-44064 |
NLP130,NSP130..6F T=2.725, MARK 35,*202,*206 |
1 | ||
| 90564-44069 |
NLP130,NSP130..6F T=2.850, MARK 40,*202,*206 |
1 | ||
| 90564-44066 |
NLP130,NSP130..6F T=2.775, MARK 37,*202,*206 |
1 | ||
| 90564-44067 |
NLP130,NSP130..6F T=2.800, MARK 38,*202,*206 |
1 | ||
| 90564-44068 |
NLP130,NSP130..6F T=2.825, MARK 39,*202,*206 |
1 | ||
| 90564-44065 |
NLP130,NSP130..6F T=2.750, MARK 36,*202,*206 |
1 | ||
| 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON | ||||
| 90080-36144 |
NLP130,NSP130..6F *202 |
1 | ||
| 90366-40130 |
NLP130,NSP130..6F *206 |
1 | ||
| 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR | ||||
| 90366-W0014 |
NLP130,NSP130..6F (L) |
1 | ||
| 90366-42010 |
NLP130,NSP130..6F (J) |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-05030 |
NLP130..6F *202 |
2 | ||
| 41331-12150 |
NLP130..6F *206 |
2 | ||
| 41331-12190 |
NLP130..6F *206 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-05030 |
NLP130..6F *202 |
2 | ||
| 41331-12150 |
NLP130..6F *206 |
2 | ||
| 41331-12190 |
NLP130..6F *206 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-05030 |
NLP130..6F *202 |
2 | ||
| 41341-12100 |
NLP130..6F *206 |
2 | ||
| 41341-12130 |
NLP130..6F *206 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-05030 |
NLP130..6F *202 |
2 | ||
| 41341-12100 |
NLP130..6F *206 |
2 | ||
| 41341-12130 |
NLP130..6F *206 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
NLP130,NSP130..MTM |
1 | ||
| 90250-06058 |
NLP130,NSP130..6F *202 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-32020 |
NLP130,NSP130..6F *202 |
1 | ||
| 41342-32020 |
NLP130,NSP130..MTM |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NLP130..6F *202 |
2 | ||
| 41351-32010 |
NLP130 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NLP130..6F *202 |
2 | ||
| 41351-32010 |
NLP130 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
NLP130,NSP130..6F T=1.10,MARK 03,*202 |
2 | ||
| 41361-22020 |
NLP130,NSP130..MTM T=1.00,MARK 02 |
2 | ||
| 41361-22020 |
NLP130,NSP130..6F T=1.00,MARK 02,*202 |
2 | ||
| 41361-22160 |
NLP130,NSP130..MTM T=1.15,MARK 16 |
2 | ||
| 41361-22150 |
NLP130,NSP130..6F T=1.05,MARK 15,*202 |
2 | ||
| 41361-22030 |
NLP130,NSP130..MTM T=1.10,MARK 03 |
2 | ||
| 41361-22040 |
NLP130,NSP130..6F T=1.20,MARK 04,*202 |
2 | ||
| 41361-22040 |
NLP130,NSP130..MTM T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
NLP130,NSP130..MTM T=0.95,MARK 14 |
2 | ||
| 41361-22160 |
NLP130,NSP130..6F T=1.15,MARK 16,*202 |
2 | ||
| 41361-22150 |
NLP130,NSP130..MTM T=1.05,MARK 15 |
2 | ||
| 41361-22140 |
NLP130,NSP130..6F T=0.95,MARK 14,*202 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
NLP130,NSP130..6F T=1.10,MARK 03,*202 |
2 | ||
| 41361-22020 |
NLP130,NSP130..MTM T=1.00,MARK 02 |
2 | ||
| 41361-22020 |
NLP130,NSP130..6F T=1.00,MARK 02,*202 |
2 | ||
| 41361-22160 |
NLP130,NSP130..MTM T=1.15,MARK 16 |
2 | ||
| 41361-22150 |
NLP130,NSP130..6F T=1.05,MARK 15,*202 |
2 | ||
| 41361-22030 |
NLP130,NSP130..MTM T=1.10,MARK 03 |
2 | ||
| 41361-22040 |
NLP130,NSP130..6F T=1.20,MARK 04,*202 |
2 | ||
| 41361-22040 |
NLP130,NSP130..MTM T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
NLP130,NSP130..MTM T=0.95,MARK 14 |
2 | ||
| 41361-22160 |
NLP130,NSP130..6F T=1.15,MARK 16,*202 |
2 | ||
| 41361-22150 |
NLP130,NSP130..MTM T=1.05,MARK 15 |
2 | ||
| 41361-22140 |
NLP130,NSP130..6F T=0.95,MARK 14,*202 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NLP130..6F |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NLP130..6F |
2 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
