NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )NLP130,NSP130..MTM

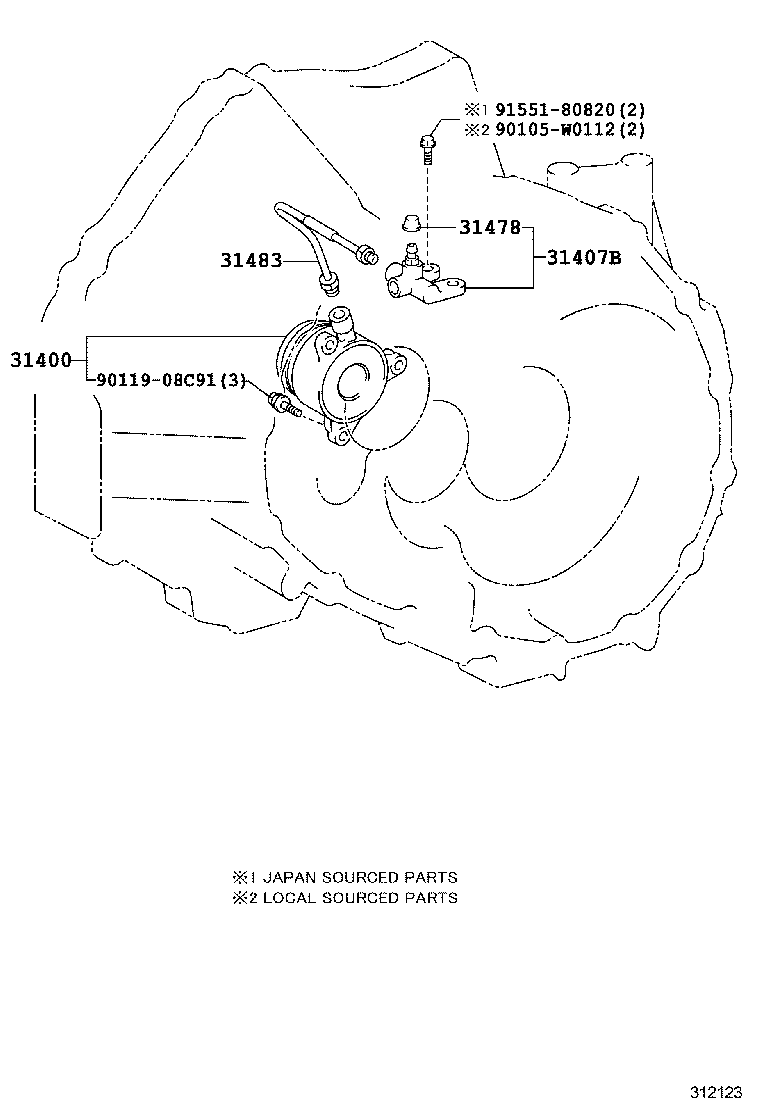

Click highlighted areas on diagram

diagram 31400 31407B 31478 31483 90105W0112 9011908C91 9155180820
Part # Description Qty Price
31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING
31400-09000

NLP130,NSP130..6F

*202

 1
31400-19005

NLP130,NSP130..6F

*202

 1
31400-59015

NLP130,NSP130..6F

*206

 1
31400-09001

NLP130,NSP130..6F

*202

 1
31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE
31407-52010

NLP130,NSP130..6F

*202,*206

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

NLP130,NSP130..6F

*202,*206

 1
31483 - TUBE, BLEEDER CLUTCH RELEASE
31482-05130

NLP130,NSP130..6F

*202

 1
31482-52090

NLP130,NSP130..6F

*206

 1
Common parts
90105-W0112
90119-08C91
91551-80820
