NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )LHD..MTM

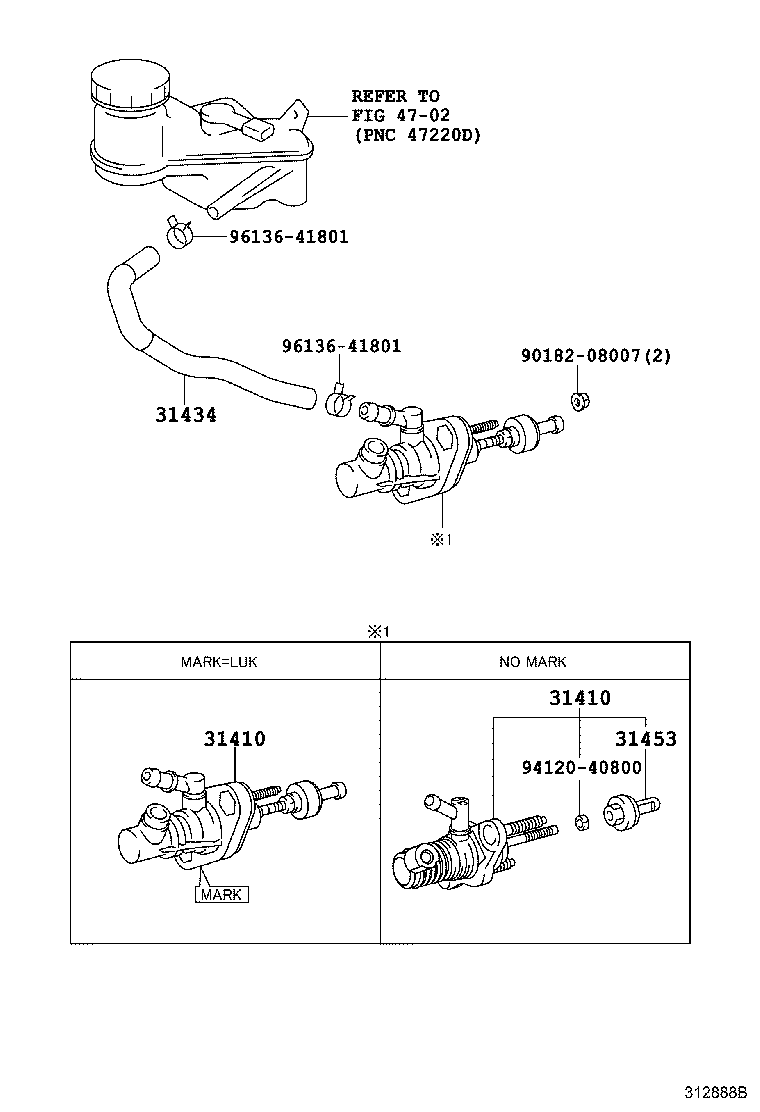

Click highlighted areas on diagram

diagram 31410 31410 31434 31453 4702 9018208007 9412040800 9613641801 9613641801
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-0D160

KSP130,NLP130..LHD..(5F,6F)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-0D160

KSP130,NLP130..LHD..(5F,6F)

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52180

KSP130,NLP130,NSP130..LHD..(5F,6F)

 1
Common parts
90182-08007
94120-40800
96136-41801
Linked diagrams
4702
