NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

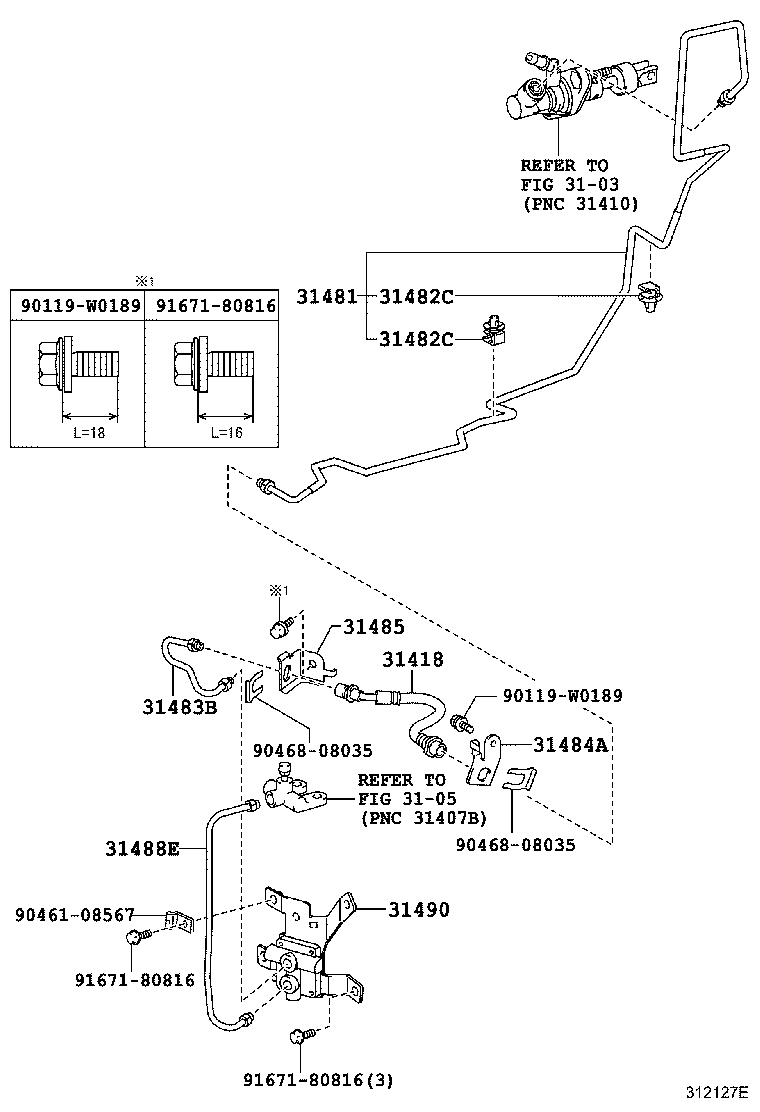

ILLUST NO. 2 OF 2(1107- )NLP130..LHD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482C 31482C 31483B 31484A 31485 31488E 31490 90119W0189 90119W0189 9046108567 9046808035 9046808035 9167180816 9167180816 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02G12

NLP130..6F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D090

KSP130,NLP130,NSP130..LHD..(5F,6F)

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP130,NLP130,NSP130..5F,6F

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP130,NLP130,NSP130..5F,6F

 2
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-0D030

NLP130..6F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

KSP130,NLP130,NSP130..5F,6F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-0D050

NLP130,NSP130..6F

 1
31488E - TUBE, BLEEDER TO ACCUMULATOR
31488-0D010

NLP130..6F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-52040

NLP130..6F

 1
Common parts
90119-W0189
90461-08567
90468-08035
91671-80816
Linked diagrams
3103
3105

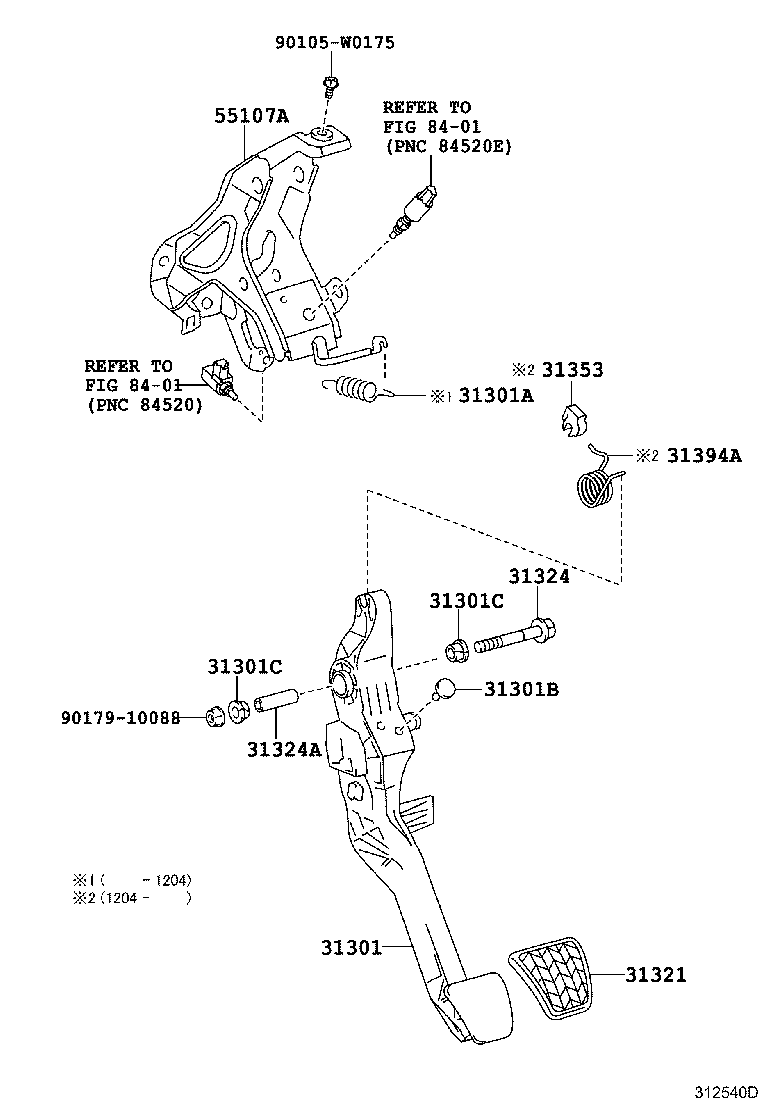

ILLUST NO. 1 OF 2(1107- )NLP130..LHD..6F ; (1112- )NSP130..LHD..6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31321 31324 31324A 31353 31394A 55107A 8401 8401 90105W0175 9017910088
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-0D110

KSP130,NLP130,NSP130..LHD..(5F,6F)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KSP130,NLP130,NSP130..5F,6F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP130,NLP130,NSP130..5F,6F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP130,NLP130,NSP130..5F,6F

 2
31321 - PAD, CLUTCH PEDAL
31321-52010

KSP130,NLP130,NSP130..5F,6F

 1
31324 - SHAFT, CLUTCH PEDAL
90105-10563

KSP130,NLP130,NSP130..LHD..(5F,6F)

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

KSP130,NLP130,NSP130..LHD..(5F,6F)

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

NLP130..6F

 1
31394A - SPRING, PEDAL W/HOOK
31394-0D060

NLP130..LHD..6F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0D160

NLP130..LHD..6F

 1
Common parts
90105-W0175
90179-10088
Linked diagrams
8401
