NLP130L-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)

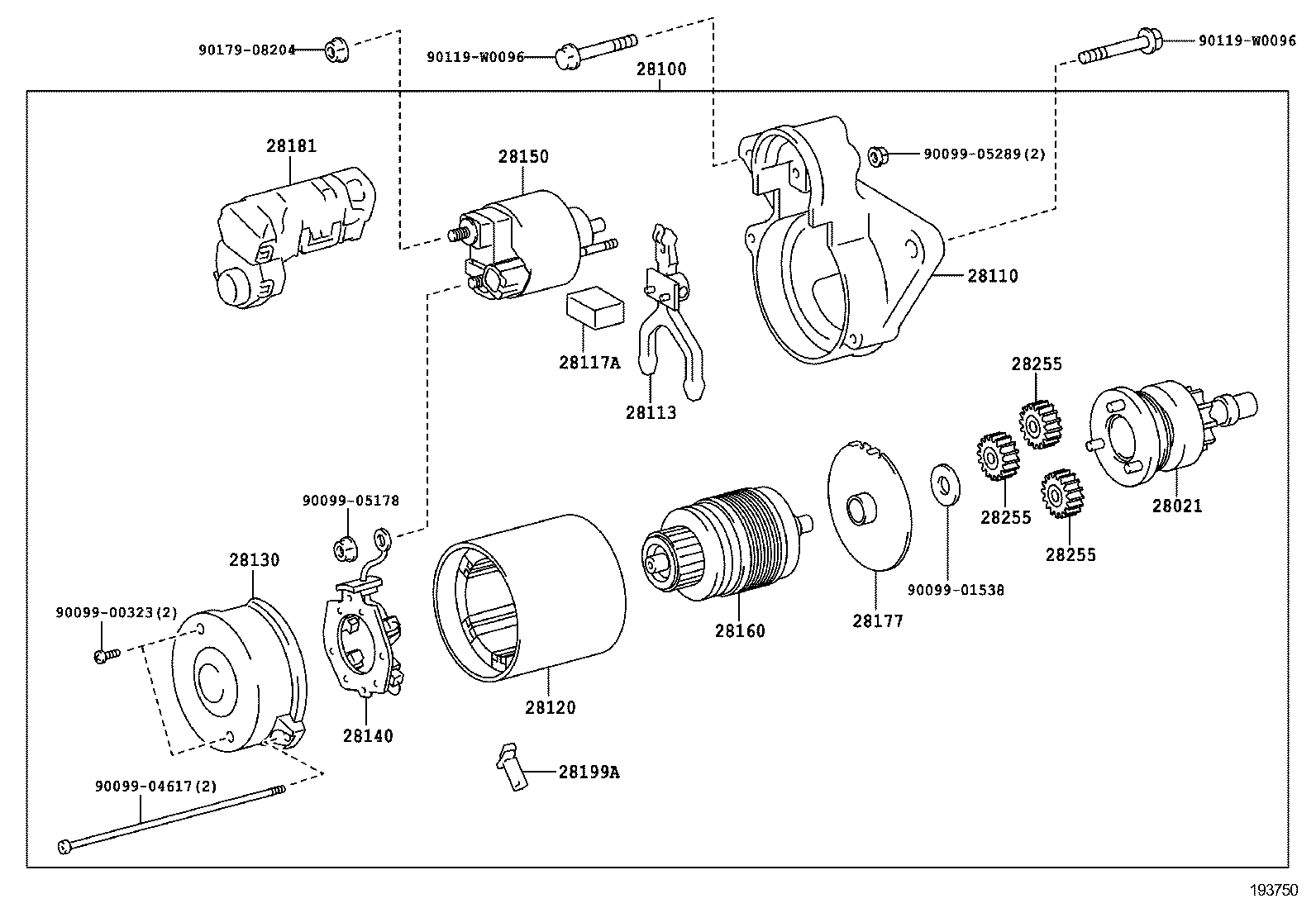

(1107- )1NDTV
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-33090 |
1NDTV..NLP130 |
1 | ||
| 28021-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28021-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0N050 |
1NDTV..NLP130..LHD 12V 2.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0N040 |
1NDTV..NLP130 12V 1.6KW |
1 | ||
| 28100-0N050 |
1NDTV..NLP130..LHD 12V 2.0KW,COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28110-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28110-33110 |
1NDTV..NLP130 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-37050 |
1NDTV..NLP130 |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-37050 |
1NDTV..NLP130 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-33110 |
1NDTV..NLP130 |
1 | ||
| 28120-38020 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-38020 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28130-33110 |
1NDTV..NLP130 |
1 | ||
| 28130-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-37050 |
1NDTV..NLP130 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37020 |
1NDTV..NLP130 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28160-33090 |
1NDTV..NLP130 |
1 | ||
| 28160-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28177-37050 |
1NDTV..NLP130 |
1 | ||
| 28177-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28181 - TERMINAL, STARTER | ||||
| 28181-33010 |
1NDTV..NLP130 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-33110 |
1NDTV..NLP130 |
1 | ||
| 28199-46080 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28199-46080 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
3 | ||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
3 | ||
| 28255-33090 |
1NDTV..NLP130 |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
3 | ||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
3 | ||
| 28255-33090 |
1NDTV..NLP130 |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
3 | ||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
3 | ||
| 28255-33090 |
1NDTV..NLP130 |
3 | ||
| Common parts | ||||
| 90099-00323 | ||||
| 90099-01538 | ||||
| 90099-04617 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||

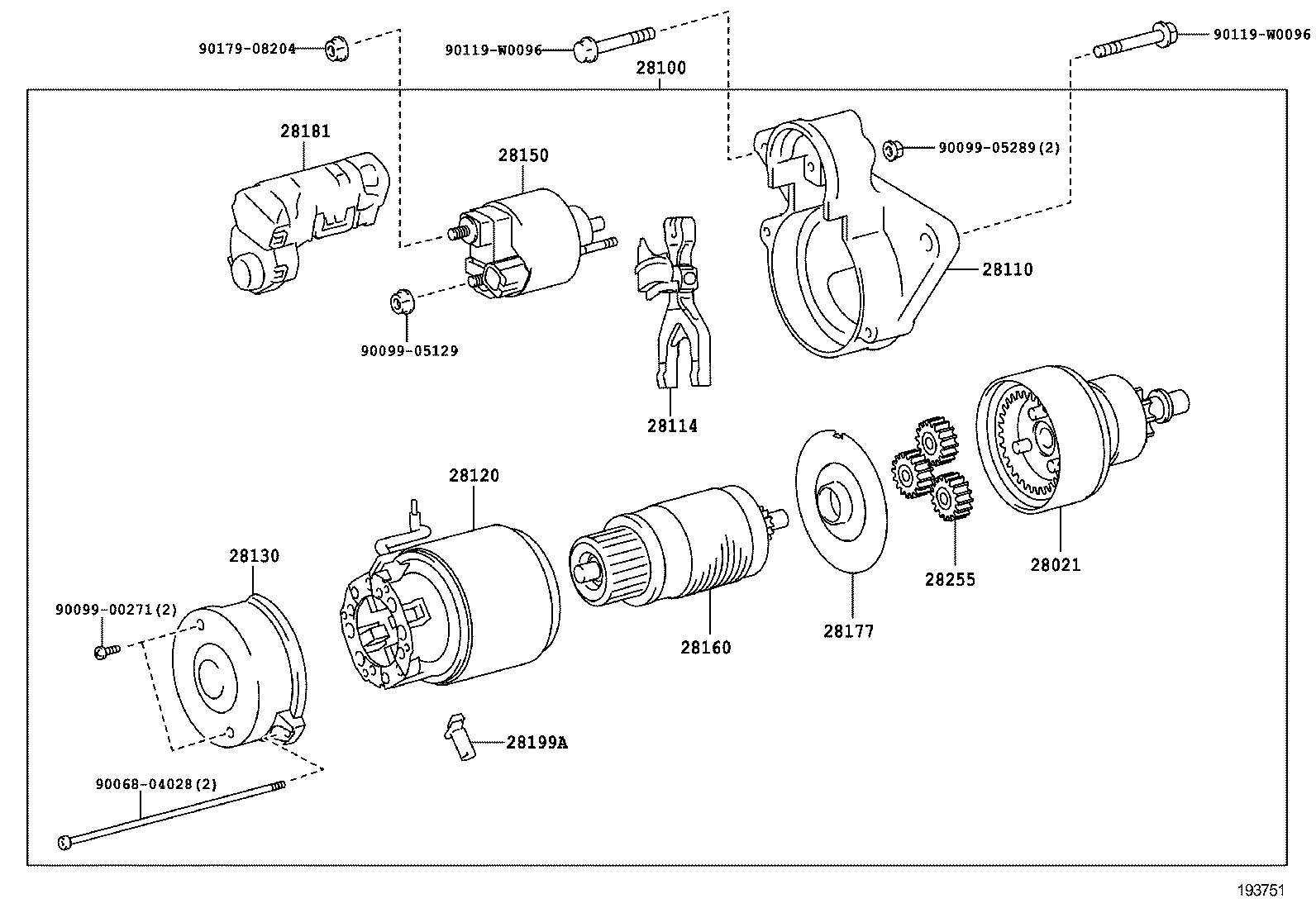

(1107- )1NDTV..LHD
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-33090 |
1NDTV..NLP130 |
1 | ||
| 28021-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28021-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0N050 |
1NDTV..NLP130..LHD 12V 2.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0N040 |
1NDTV..NLP130 12V 1.6KW |
1 | ||
| 28100-0N050 |
1NDTV..NLP130..LHD 12V 2.0KW,COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28110-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28110-33110 |
1NDTV..NLP130 |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-33100 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28114-33100 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-33110 |
1NDTV..NLP130 |
1 | ||
| 28120-38020 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-38020 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28130-33110 |
1NDTV..NLP130 |
1 | ||
| 28130-0N050 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37020 |
1NDTV..NLP130 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28160-33090 |
1NDTV..NLP130 |
1 | ||
| 28160-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28177-37050 |
1NDTV..NLP130 |
1 | ||
| 28177-0G020 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28181 - TERMINAL, STARTER | ||||
| 28181-33010 |
1NDTV..NLP130 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-33110 |
1NDTV..NLP130 |
1 | ||
| 28199-46080 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28199-46080 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
3 | ||
| 28255-0G040 |
1NDTV..NLP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
3 | ||
| 28255-33090 |
1NDTV..NLP130 |
3 | ||
| Common parts | ||||
| 90068-04028 | ||||
| 90099-00271 | ||||
| 90099-05129 | ||||
| 90099-05289 | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||
