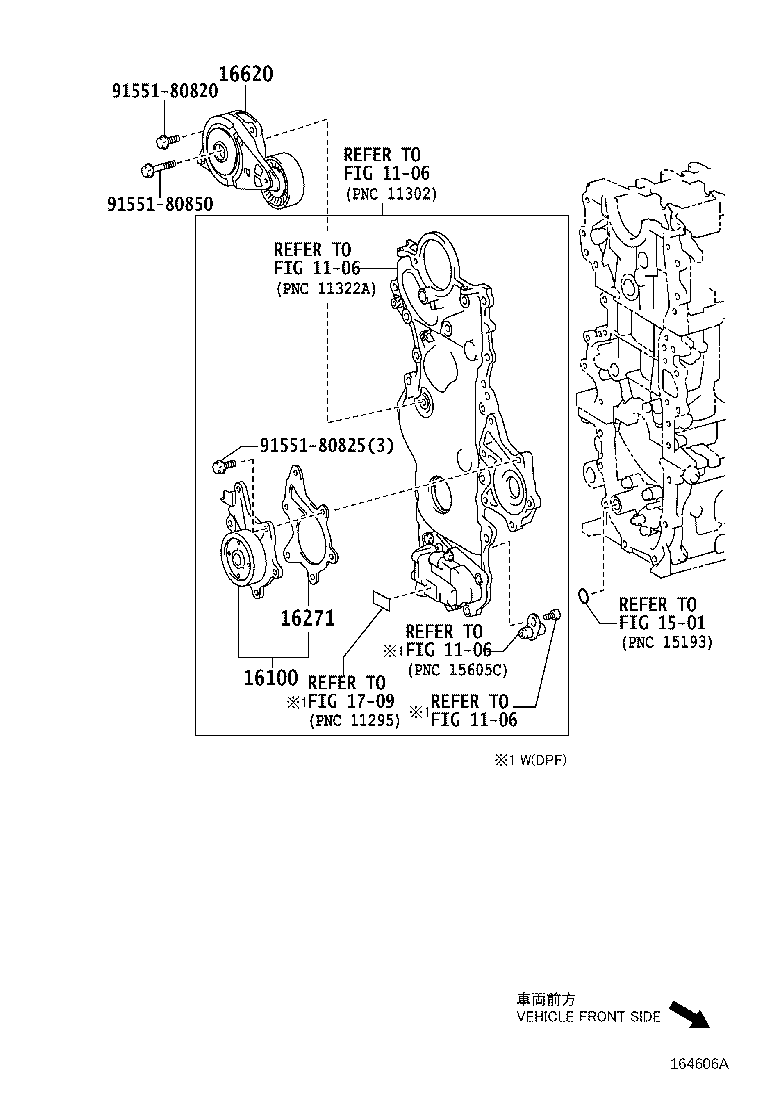

Toyota Yaris/hybrid (frp) NLP130 WATER PUMP

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-39525	1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION	03/2012 - 12/2999	1
16100-39525	1NDTV..NLP130	07/2011 - 03/2012	1
16100-39525	1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)	03/2012 - 12/2999	1
16100-09610	1NDTV..NLP130	03/2012 - 12/2999	1
16271 - GASKET, WATER PUMP
16271-33030	1NDTV..NLP130	07/2011 - 07/2014	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-33020	1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)	07/2011 - 05/2013	1
16620-33021	1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION	05/2013 - 07/2014	1
16620-33040	1NDTV..NLP130	07/2011 - 07/2014	1
16620-33020	1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2011 - 05/2013	1
16620-33021	1NDTV..NLP130..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)	05/2013 - 07/2014	1
Common parts
91551-80820
91551-80825
91551-80850
Linked diagrams
1106
1501
1709

NLP130L-CGFGXW (2011)
